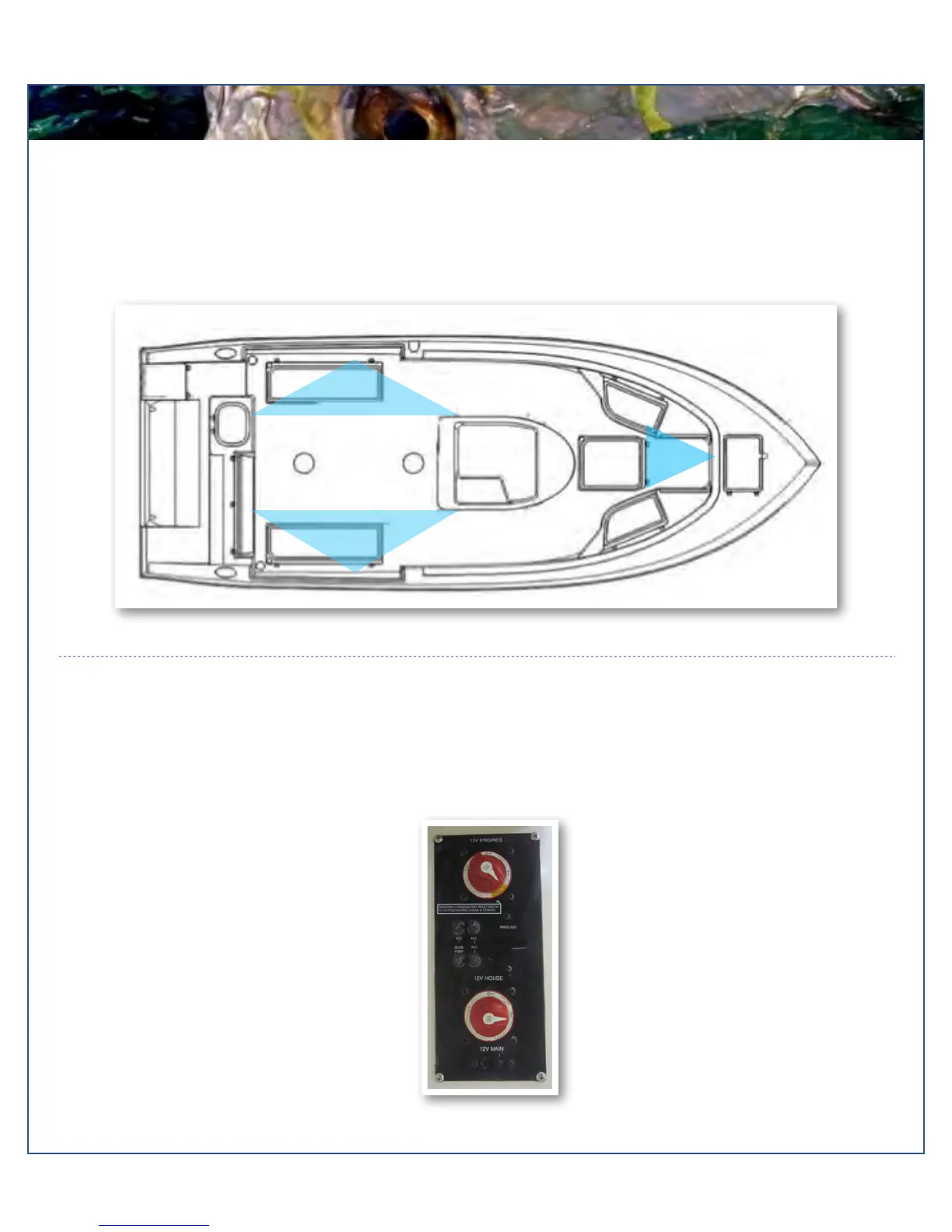

Diagram of the LED Cockpit Courtesy Lights
Cockpit Courtesy Lights
The cockpit comes equipped with three L.E.D. courtesy lights installed at the factory. These lights illuminate the entire
cockpit and are controlled by the switch panel. The switch labeled “COCKPIT LTS” controls the courtesy lights. The courtesy
lights are mounted beneath the port and starboard gunnels as well as at the bow, aft of the anchor locker.
Battery Switch
The switch is located at the aft starboard cockpit. On a single battery system, your battery is wired to the number 1 side of
the switch. On the optional dual battery setup, one battery is wired to the number one position while the second battery is
wired to the number 2 side of the switch. The operator can choose which battery to utilize by the selection on the switch. The
only time the switch should be in the “1 & 2” position is if one battery will not start the engine. Then, switch to “1 & 2” and
have two batteries start the engine.
