To evacuate the tank overboard using the macerator, open the valve on the waste
discharge thru hull located just aft of the Y valve in the floor storage compartment in
front of the console. The intake valve will be fully open when the handle is pointing
straight up.
The Y-valve handle should then be turned so that the wide portion of the handle covers
the silver arrow for the pump-out outlet (the top outlet.) The visible arrows should now
be showing the flow to be going downward. Next press down the macerator switch on
the panel. This will push the contents in the holding tank out the bottom of the boat
through the waste discharge thru hull. Once the process is complete it is advisable to
close the discharge valve and put the Y-valve handle back into the pump-out position.
(The wide portion of the handle covering the down arrow.)

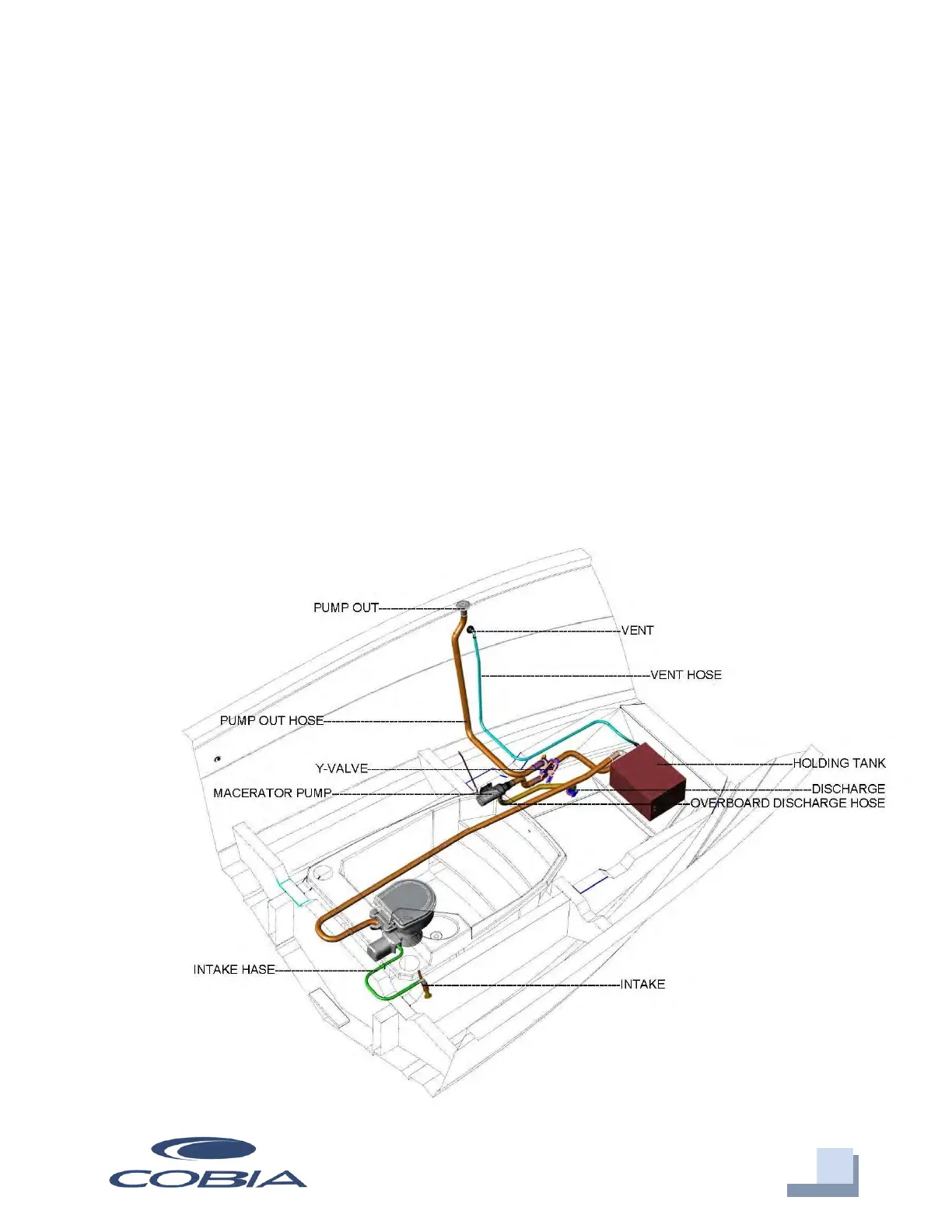

Cobia 240 CC Sanitation System
