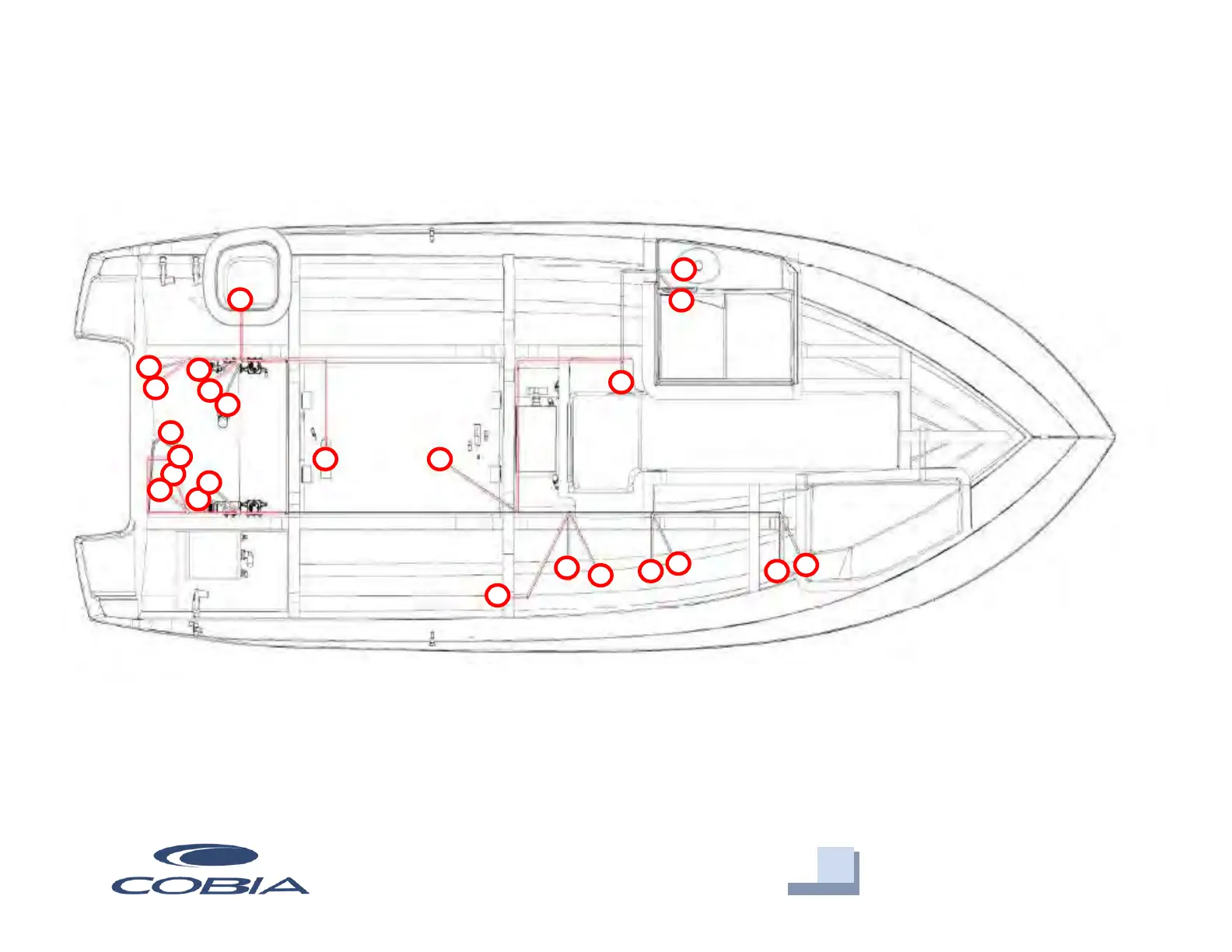

Cobia 240 DC Hull Wire Harness
1
2
3
4
5
6
7
8
11
12
14
15
16
17
18
19
20
22
23
9
10
13
21
24
1. PORT UNDERWATER LIGHT
2. PORT TRIM TAB
3. PORT FISHBOX PUMP
4. LIVEWELL PUMP
5. RAW WATER PUMP
6. LIVEWELL LIGHT
7. FUEL SEND
8. BILGE PUMP/FLOAT SWITCH
9. BILGE HATCH CONTROL/POWER
10. STBD UNDERWATER LIGHT
11. STBD TRIM TAB
12. STBD FISHBOX PUMP
13. FRESHWATER PUMP
14. FUEL BOND
15. HEAD MACERATOR PUMP
16. ELECTRIC HEAD/MACERATOR SWITCH
17. HEAD CABIN LIGHT
18. BILGE HATCH SWITCH
19. BATTERY/BREAKER CONNECTIONS
20. GROUNDS
21. AMPLIFIER
22. CONTROL CONSOLE CONNECTIONS
23. W/S WASHER
24. W/S WIPER
