Console Interior
Inside the console is the head unit. There are steps that lead into the head unit which
houses an optional electric head, fresh water sink with spray nozzle for rinsing off,
switch panel for flushing head, on-off switch for the macerator, and a lighted towel-rack
bar. The main DC breaker panel (for switch panel accessories) is inside along with two
port hole windows. The access to the water intake valve for the head, the thru-hull head
discharge valve for pumping waste overboard (where permitted), can be found in the
hatch directly behind the head. The Y-valve, macerator, and holding tank can be found
towards the bow of the boat in the deck. See Sanitation System diagram, page 38.
Console/Head Access
Located at the top on the inside of the console/head access door is a locking gas shock
that aides in opening the door and keeping the door open once the shock is fully
extended. With the door fully opened, it can only be closed by releasing the pressure of
the metal sleeve on the door side against the shock that is mounted to the console. To do
this, open the door to its fullest open position, thereby allowing the door slide sleeve to
be moved so that it will slide overtop of the gas shock as the door closes. Failure to
release this locking mechanism while attempting to close the door will lead to the gas
shock failing, or damage to the mounting brackets.

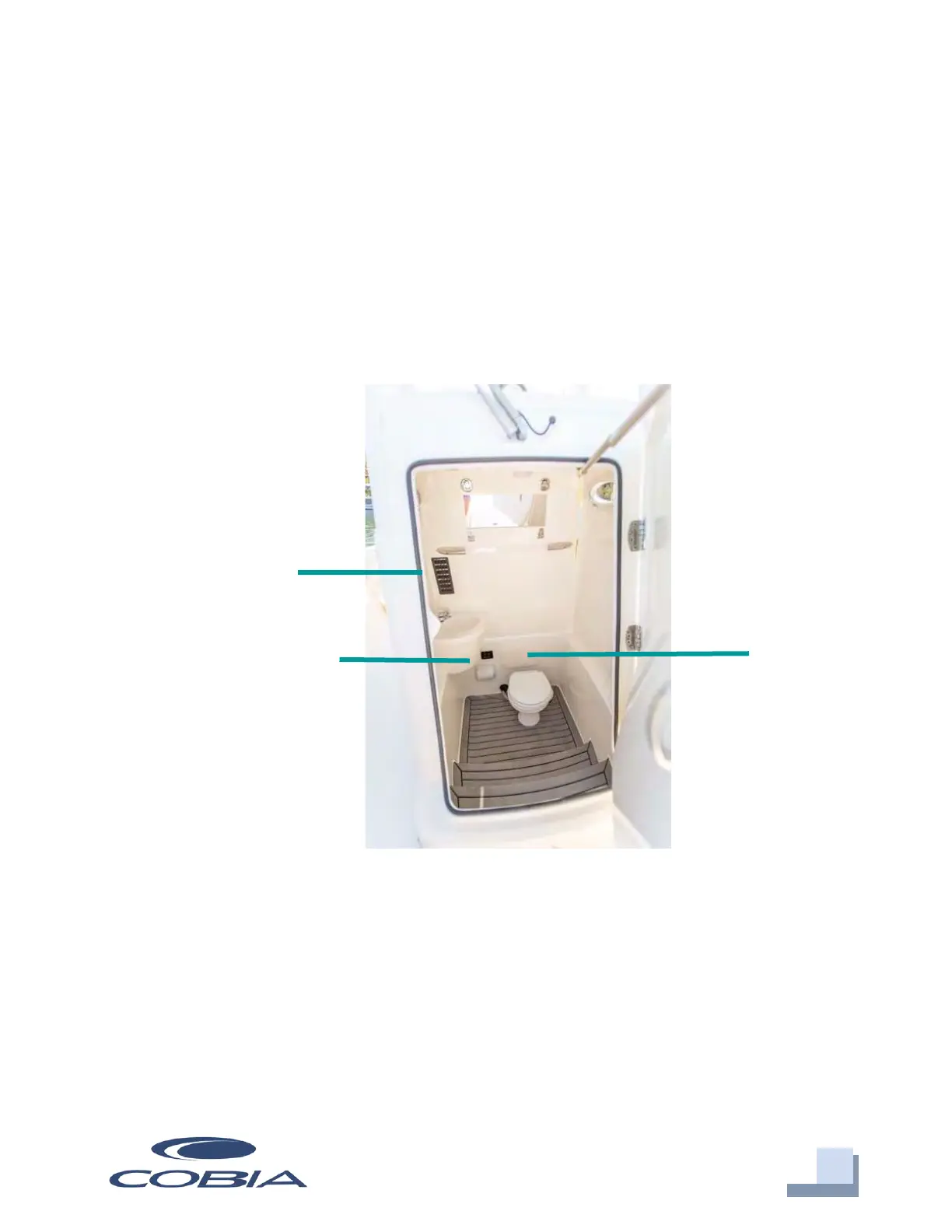

Access to water intake
valve
Toilet & Macerator
Switch
