Systems
Ball Valves

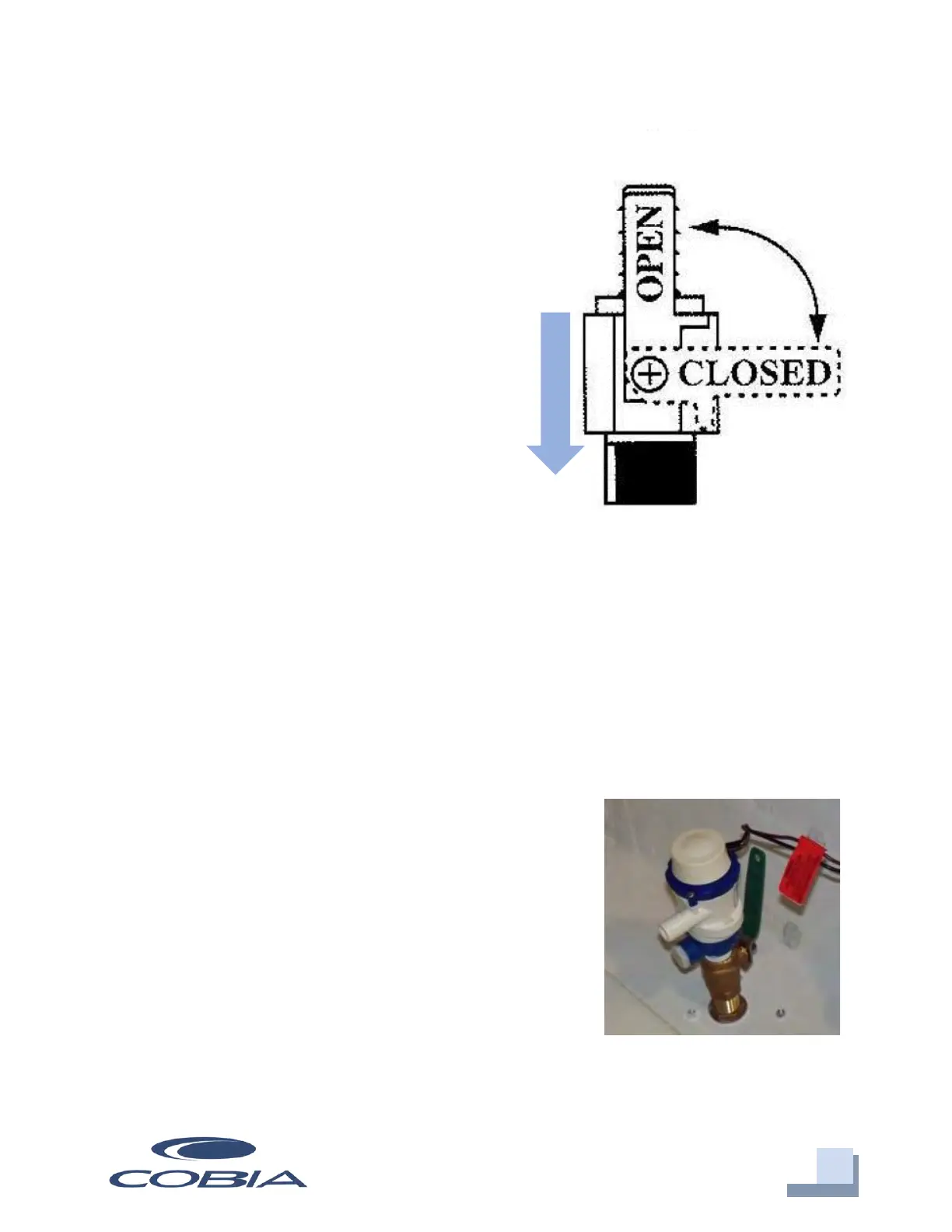

Ball valves can be used to serve several purposes.
They allow seawater to enter the boat, in the case of
livewells, and they also act as a safeguard to stop
water from entering. To tell which position a ball
valve is in, open or closed, look at the valve and
determine the direction of flow. When the ball
valve handle is in the same position as the
direction of flow, the valve is in the “OPEN”
position. When the ball valve handle appears to
cross the direction of flow, the valve is in the
“CLOSED” position. The ball valves can be accessed
in the bilge compartment behind the aft seating.
262 Deckdrain System
The deckdrain system is equipped with 1 1/2” thru hull fittings through the aft port and
starboard hull sides. These fittings have to be installed lower than the drains in the
cockpit floor so that gravity will allow the cockpit to drain free of water. This puts these
fittings very close to the water line of the hull. These drains are rigged with ball valves
that can be opened and closed to control the flow of water. In the open position, these
ball valves will allow water to flow freely from the cockpit, thus making the boat “self-
bailing”. When closed, no water will be allowed to travel to or from the cockpit.
262 Livewell Pump Assembly
The livewell pump assembly is composed of a scoop
strainer mounted to the bottom of the hull, a thru hull
fitting, ball valve assembly, and the pump. As you can
see, the ball valve assembly is in the “OPEN” position.
This is the correct position for the operation of the
livewell.
Livewell Pump in the “Open” Position
