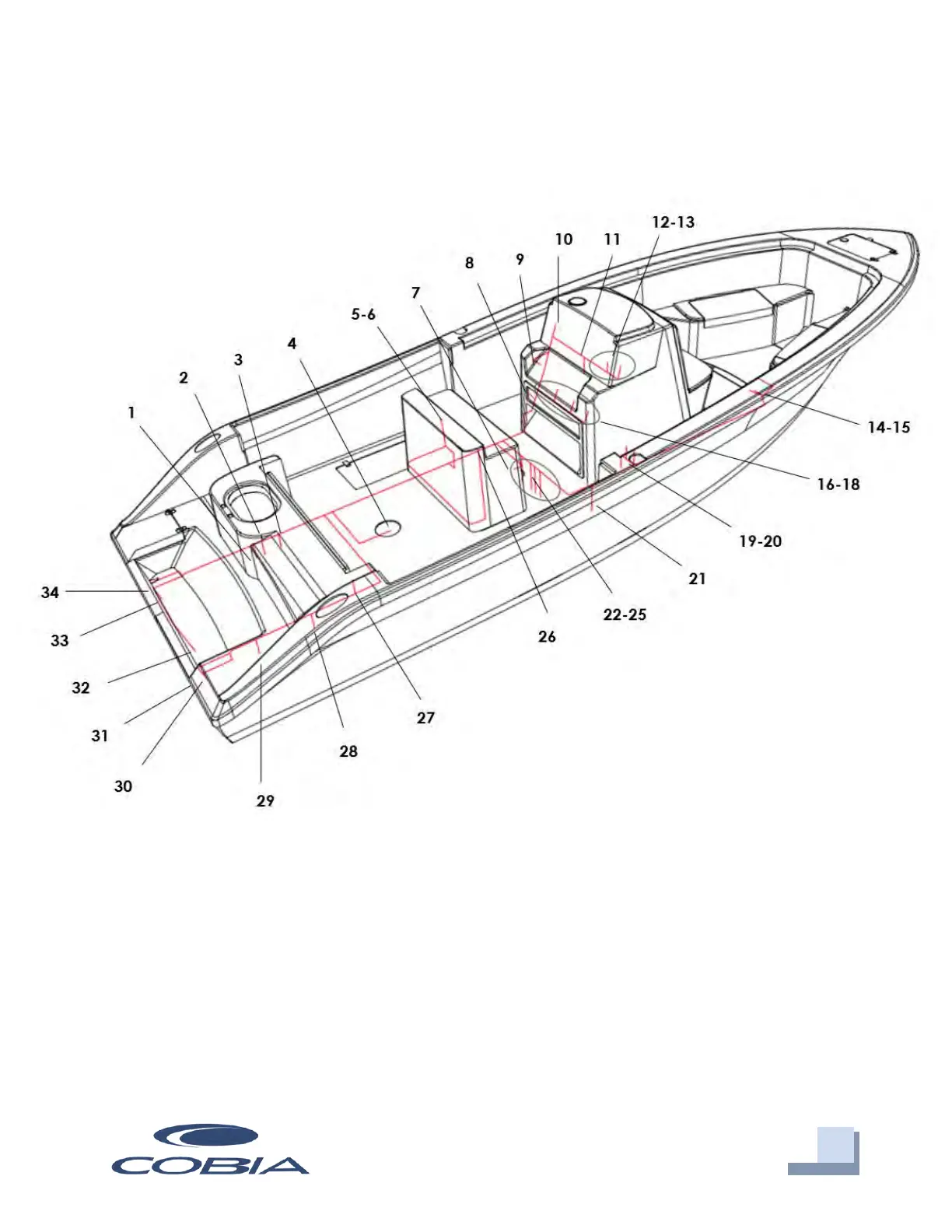

Cobia 280 CC Hull Wire Harness
1. Livewell
2. Port Fish Box Pump
3. Fresh Water Pump
4. Fuel Send Unit
5. Battery Switch
6. Windlass Solenoid
7. Fuel Ground
8. 12 Volt Plug
9. Windlass Switch
10. Compass/Cabin Light
11. Trim Tabs Switch
12. Switch Panel
13. Main Breaker
14. Table Lift hull/deck connection
15. Speaker hull/deck connection
16. Electronics Power/Ground
17. Stereo
18. Amp
19. Cabin/Storage Light Switch
20. Electric Head/Macerator Pump Switch
21. Fwd. Macerator
22. Electric Head
23. Fwd. Bilge
24. Ground Buss
25. Storage Light
26. Bilge Hatch Switch
27. Bilge Hatch Power
28. Raw Water Pump
29. Starboard Fishbox Pump
30. Starboard Underwater Light
31. Starboard Trim Tab
32. Aft Bilge/Aft Float Switch
33. Port Underwater Light
34. Port Trim Tab
To Next Page
