become released, by manually retrieving the cable into
the drum. ONLY run the motor in REV if the cutter has
become caught. If the cable begins to get stuck or
buckle/kink/ twist, immediately remove your foot from
the foot switch while rmly holding the cable with
both hands. Allow the machine to come to a complete
stop and the tension to release from the cable. Turn
the machine off and immediately manually rotate the
cable in the opposite direction until the twist or buckle
has been removed.
If drum continues to rotate under power when the
cable/cutter is stuck the cable can twist, buckle kink
or break.
Retrieving the cable
8. Move the motor switch to the OFF position. Do no
operate the motor in reverse.
9. Unplug the power cord.
10. Loosen the thumbscrew and hand feed all the cable
back into the drum, cleaning in cold water then oiling
the cable as you go. It is recommended that the cable
is continuously ushed through with clean water and
oiled as it is being retrieved from the pipe and again
before putting it away. This will prolong cable life and
prevent unpleasant odors as well as the damaging
effects of drain cleaning compounds.
11. Once all of the cable is fed back into the drum, tighten
the thumbscrew.
Post-operation maintenance
12 Drain water from drum. Your model is equipped with
a drain hole in the cable drum. Water, sediment and
debris can corrode cable – remove the drum from the
machine (see “To Remove Drum from Frame” below)
and place it face down to allow all the water to drip
out. This should be done after every use.
MACHINE MAINTENANCE
The motor switch should be OFF and machine
unplugged prior to preforming any maintenance,
adjusting, or cleaning the machine to reduce the risk
of electric shock, re, serious injury or death.
Cables
• The metal cable should be thoroughly cleaned with
water and lubricated to prolong cable life and prevent
unpleasant odors as well as the damaging effects of
sediment and drain cleaning compounds. Cleaning and
lubricating should occur prior to storing the machine.
Regularly inspect cables for damage.
• Replace cables that are worn or kinked.
Cleaning the drum machine
• This machine is equipped with a drain hole in the cable
drum. It is recommended prior to storage, all water
residues should be removed from the drum. Remove
the drum from the machine (see “To Remove Drum from
Frame” below) and place it face down. This will allow
all of the water to drip out. Conrm the drum is dry
prior to storing.
Lubrication
• Typically, the drain cleaning machine will not require
lubrication. The bearings will need to greased with a
general lubricant if the drum is removed or changed.
The cable will need to be lubricated after each use.
Storage
• Make sure all water and residue is removed from the
drum prior to storage. Drum should be stored properly
mounted on the machine frame.
• Store machine in a dry, safe, secured place, out of
the reach of children and people unfamiliar with this
machine.

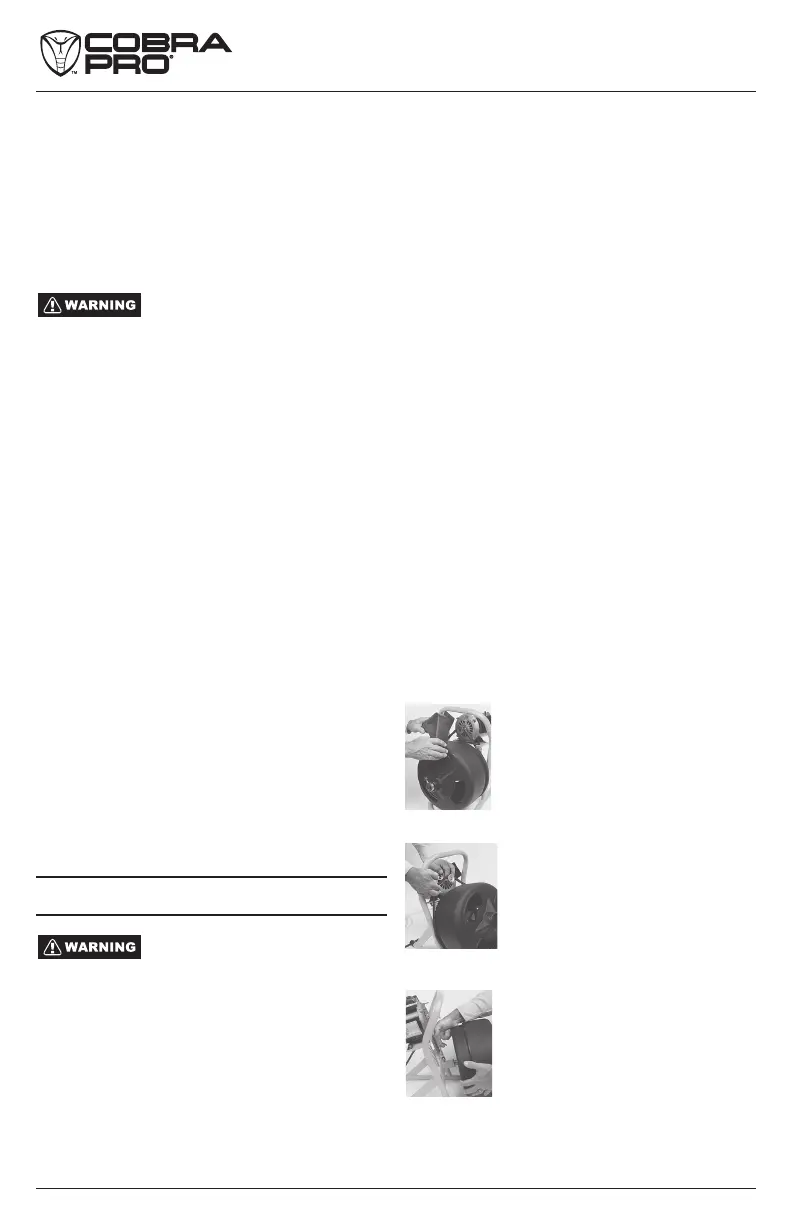

To Remove Drum from Frame
gure 1
1. Remove wing nuts on the belt guard
(pulley wheel cover) and remove the belt
guard. (See gure 1)
gure 2
2. Remove the drive belt from the drum
by pressing down rmly on the spring
motor housing and release the drive belt.
(See gure 2)
gure 3
3. A release hook is situated immediately
behind the drum. Pull this hook upward
and pull the drum forward to remove it
from the frame. (See gure 3)
