Specifications
S p e c i f i c a t i o n s
GENERAL
CHANNELS. . . . . . . . . . . . . . . . . . . . . . . CB - 40 CH
FREQUENCY RANGE. . . . . . . . . . . . . . . CB - 26.965 TO 27.405 MHZ
FREQUENCY TOLERANCE. . . . . . . . . . 0.005 %
FREQUENCY CONTROL . . . . . . . . . . . . PLL (PHASE LOCK LOOP) SYNTHESIZER
OPERATING TEMPERATURE
RANGE. . . . . . . . . . . . . . . . . . . . . . . . . . . -30° C TO + 65° C
MICROPHONE . . . . . . . . . . . . . . . . . . . . PLUG-IN DYNAMIC
INPUT VOLTAGE . . . . . . . . . . . . . . . . . . 13.8VDC nom.(negative ground)
CURRENT DRAIN TRANSMIT: AM FULL MOD.,1.4A (MAXIMUM)
RECEIVE:SQUELCHED, 0.9 A;
FULL AUDIO OUTPUT,1.2A (NOMINAL)
SIZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7/8”D X 6-3/4”W X 1-7/8”H
WEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . .3.25 LBS.
ANTENNA CONNECTOR . . . . . . . . . . . .UHF;SO-239
METER . . . . . . . . . . . . . . . . . . . . . . . . . . .LED;INDICATES RELATIVE POWER
OUTPUT AND RECEIVED SIGNAL STRENGTH
TRANSMITTER
POWER OUTPUT . . . . . . . . . . . . . . . . . .4 WATTS
MODULATION . . . . . . . . . . . . . . . . . . . .AM (AMPLITUDE MODULATION)
FREQUENCY RESPONSE . . . . . . . . . . . .300 TO 3000 HZ
OUTPUT IMPEDANCE . . . . . . . . . . . . . .50 OHMS,UNBALANCED
RECEIVER
SENSITIVITY . . . . . . . . . . . . . . . . . . . . . . .LESS THAN 1 µV FOR 10dB (S+N)
SELECTIVITY . . . . . . . . . . . . . . . . . . . . . .6 dB @ 7 KHZ,60 DB @ 10KHZ
IMAGE REJECTION . . . . . . . . . . . . . . . . .60 dB,TYPICAL
ADJACENT-CHANNEL REJECTION . . .50 dB,TYPICAL
ATOMATIC NOISE LIMITER . . . . . . . . . .BUILT-IN

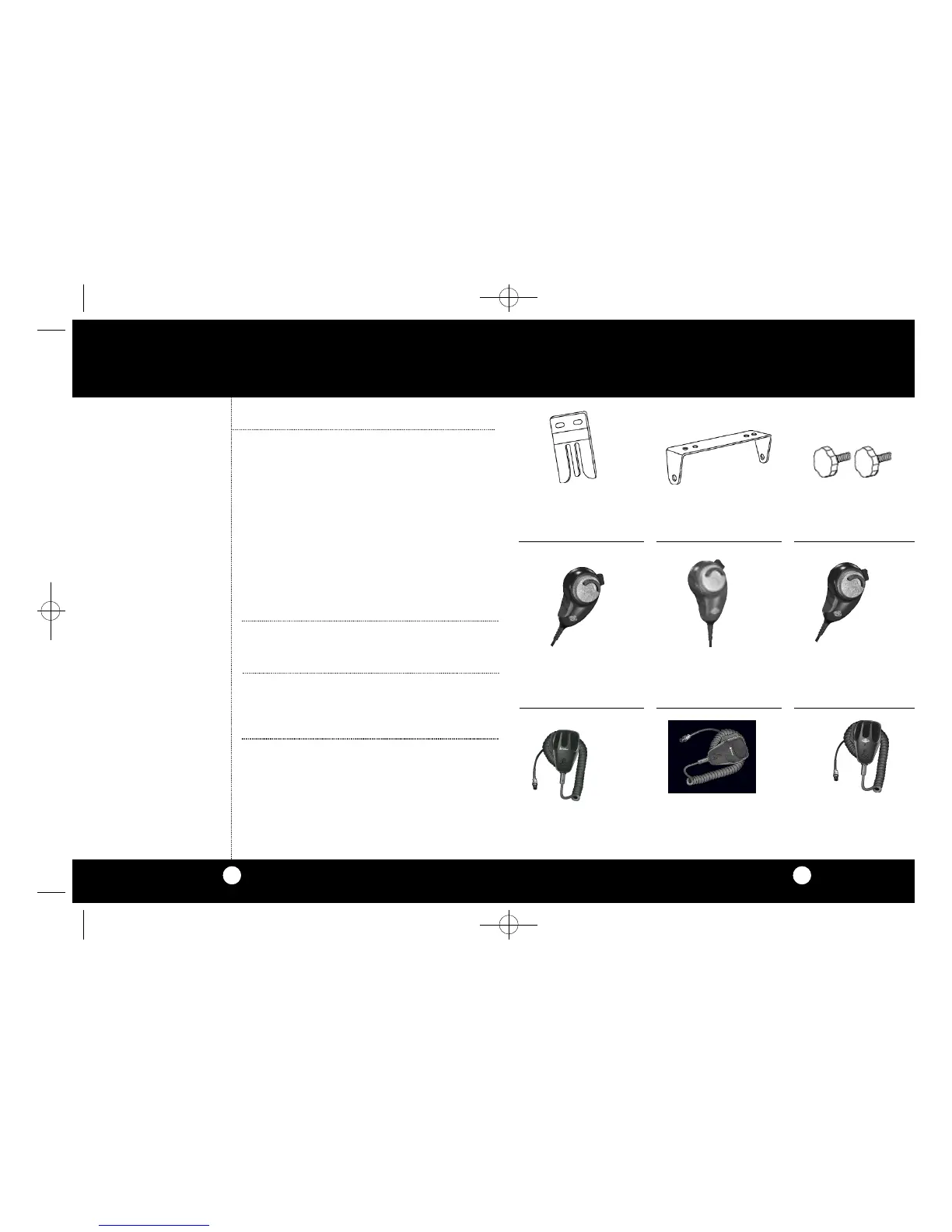

Replacement Mounting
Bracket
251-199-9-001 $4.50
Replacement Thumb Screws
634-081-9-001
