Technical Service Bulletin 10076 Page 2 of 5
Ribbon Cable
There is a ribbon cable which runs from the display to the display PCB. If this cable becomes loose
then you may loose the display. Or the display may become intermittent. The backlight will still
illuminate, but the display will not show any information.

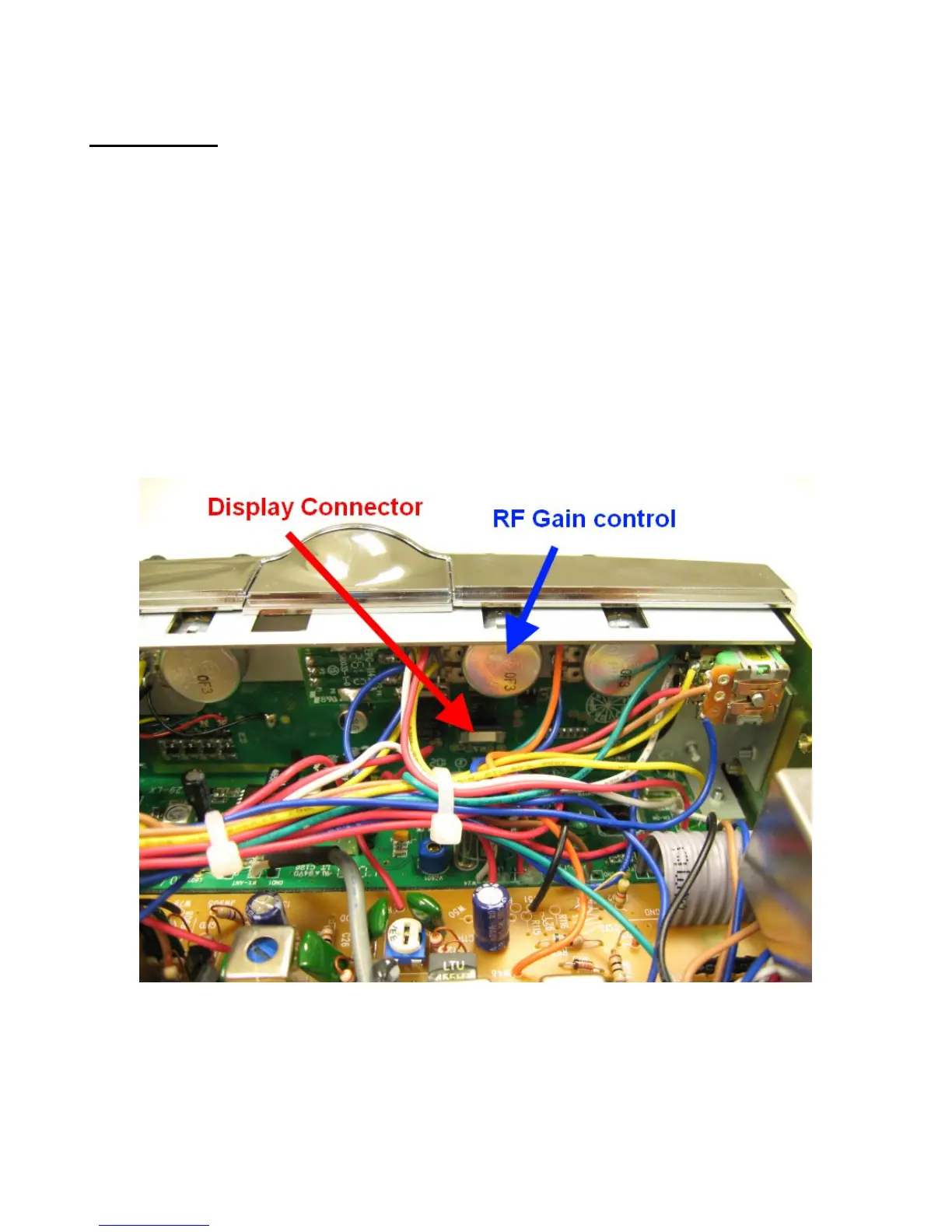

The following pages shows the location of the ribbon cable. Make sure that the cable is fully seated
into the connector. Please note that the connector has a locking mechanism. Lift up on the top piece to
release the lock, and push back down to engage the lock.
1. Lift up on the top piece to release the lock (see page 3).
2. Use the eraser end of a pencil to push the ribbon cable all the way down.
3. Push down on the top piece to engage the lock.
