3. To remove the catcher, disengage the blade driver lever and stop the engine.
4. Lift the catcher from the top section and empty.
Changing the Height of Cut
Warning: Switch off the engine and disconnect the spark plug connector before
making any adjustments of maintenance.

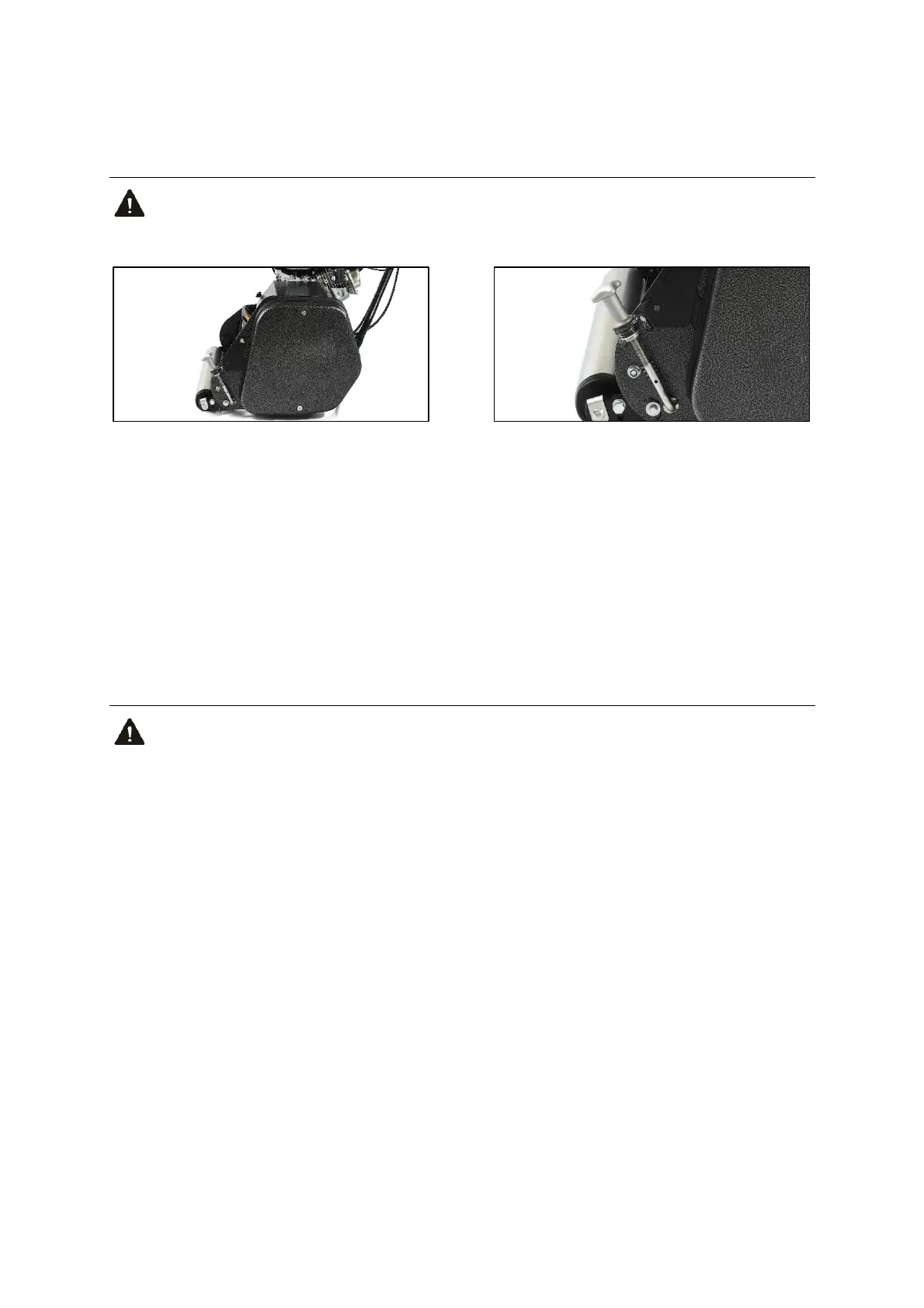

Fig. 30 Fig. 31
The height of cut is adjusted by turning the height control. The scale marked provides a guide to
the cutting height set in mm. The height of cut operates by moving the position of the roller
relative to the bottom blade.
-Turn the control knob clockwise to raise the cutting height.
-Turn the control knob anti-clockwise to lower the cutting height.
The ‘L’ marked are the scale indicates ‘Low’ for use with specific cartridge cassettes requiring the
lowest operating height.
Cylinder to Bottom Blade Gap Adjustment
Warning: Switch off the engine and disconnect the spark plug connector before
making any adjustments of maintenance. Wear safety gloves to protect against cuts from
the blades.
The Fortis Cylinder mower cutting system is designed for efficient and precise cutting. To
maintain the cutting precision follow the instructions below. The cylinder blade should always cut
cleanly and evenly when set correctly. The blades are a wearing item and as such will need
periodic sharpening to maintain the cut precision.
- Empty the fuel from the tank and switch off at the engine switch
- Disconnect the spark plug connector.
- Tilt the mower backwards towards the handles
The cylinder blades should be adjusted so that they lightly touch the bottom blade. Test with
paper at several positions across the bottom blade to ensure it is adjusted correctly across the
width of the blade. Place the test paper between the cylinder and the bottom blade. The paper
should cut cleanly and the cylinder rotates easily.
