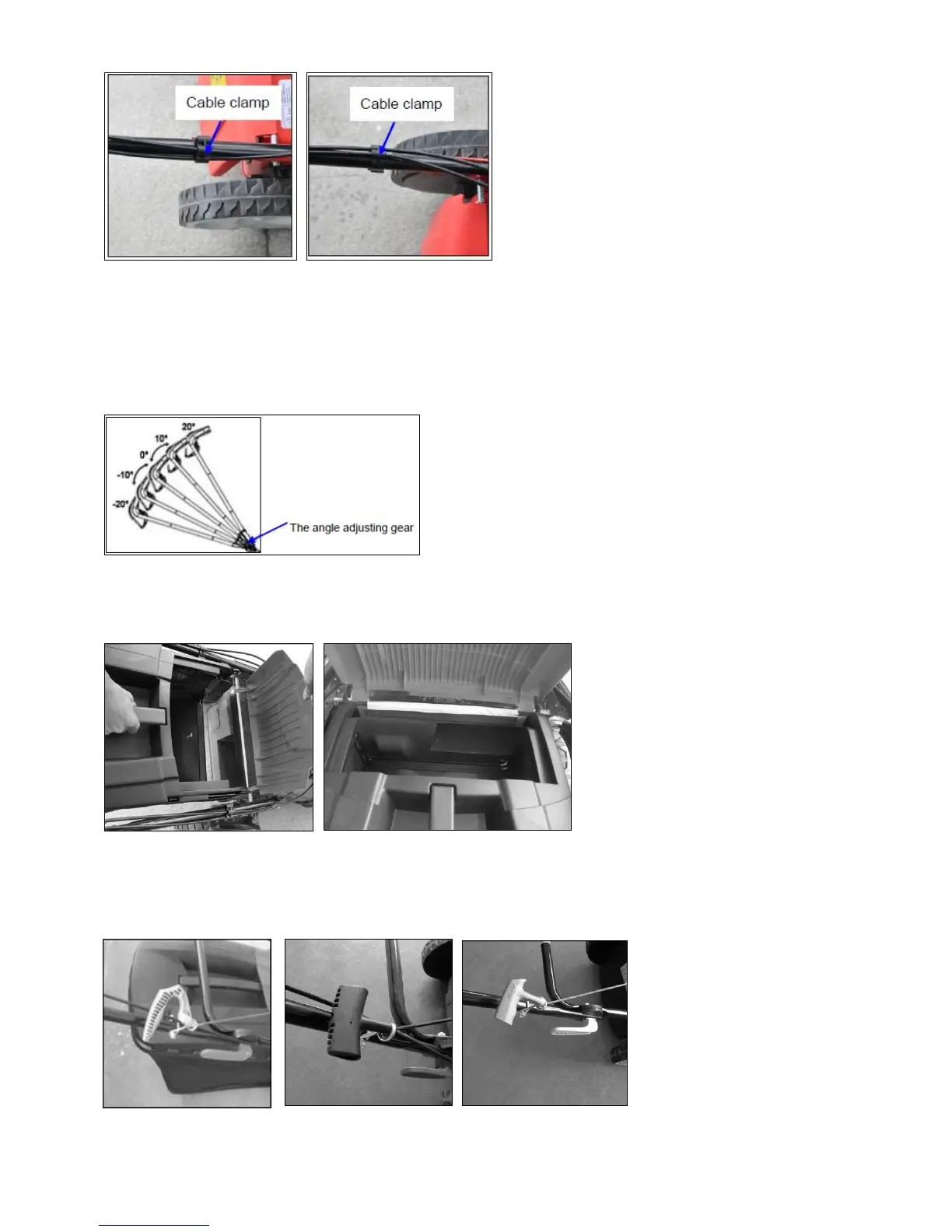

Fig.2G Fig.2H
5.2 ADJUSTMENT FOR AN APPROPRIATE ANGLE
A).Pull the locking lever opening.
B).Rotating the upper handle centered of the angle adjusting gear for adjusted a appropriate angle into the scope -20º to 20º as
the Fig.3 shown;
C).Push the locking lever closed to connect the lower handle and the upper handle.
Fig.3
5.3 MOUNTING AND DISMOUNTING THE GRASS CATCHER
1. To fit: Raise the rear cover and hitch the grass catcher on rear of mower. (Fig.4A/ 4B)
2. To remove: grasp and lift the rear cover and remove the grass catcher.
Fig.4A Fig.4B
5.4 STARTER HANDLE
Move the starter handle from the engine to the rope guide.
Fig.5A
Fig.5A Fig.5B Fig.5C
