Cobra MX564SPB - Assembly

- 7 -
MX564SPB
Guaranteed Sound pressure level at
operator’s position
(According to EN ISO 3744, EN ISO
4871)
84.8dB(A) (K=3
dB(A))
Measured sound power level
Guaranteed Sound Power level
(According to 2000/14/EC)
93.2dB(A)
K=2.09dB(A)
98 dB(A)
Vibration
(According to EN ISO 20643
4.337m/s²
K=1.5 m/s²

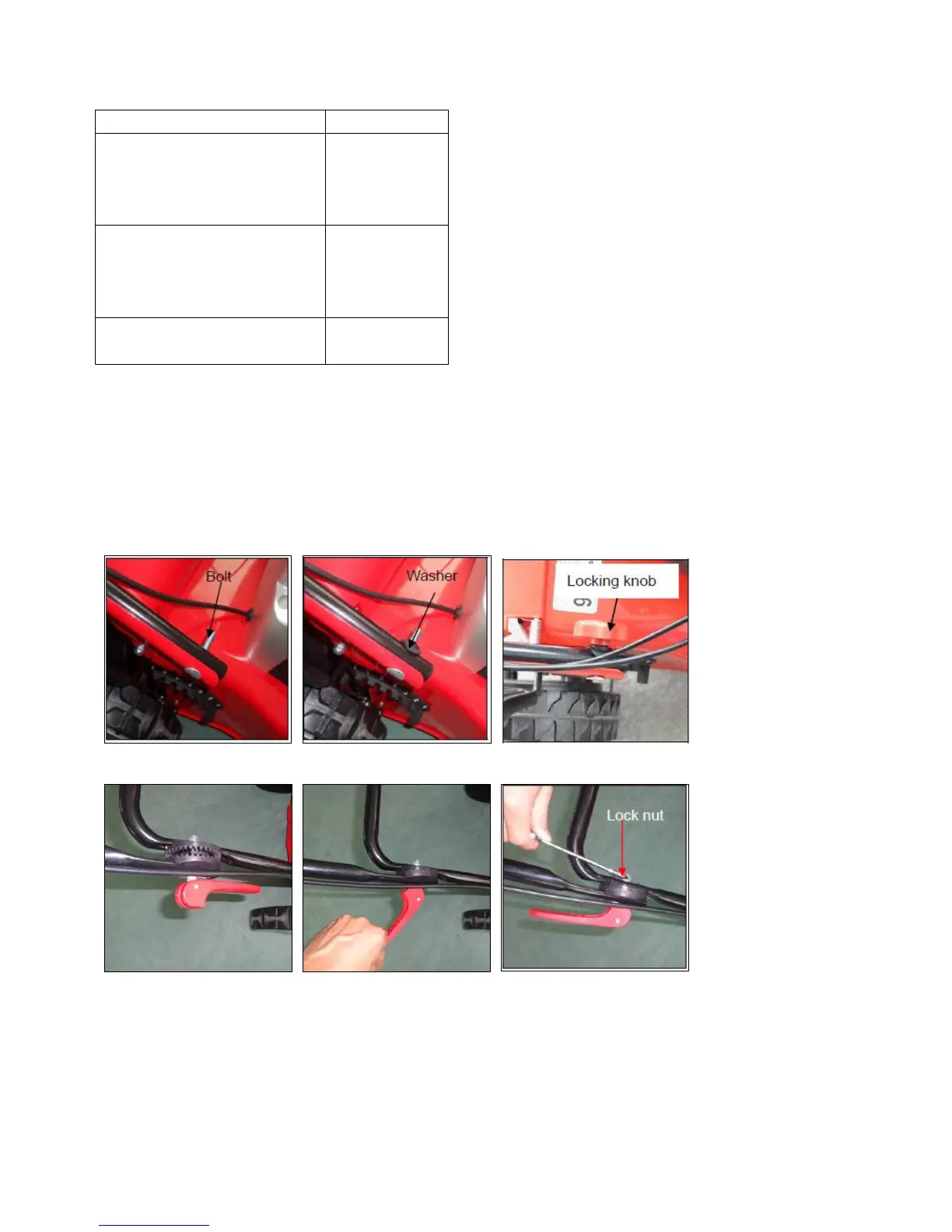

5. ASSEMBLY
5.1 FOLDING THE HANDLES
1. Fix the lower handlebars into the mower body with locking knobs, bolts and washers. (Fig.2A/2B/2C)
2. Lift the two locking levers to release the upper handlebars for folding. (Fig.2D)
3. Push the locking lever closed to lock the handlebars in the operating position. (Fig.2E)
4. Adjust the tension by turning the lock nut with a suitable spanner. (Fig.2F)
5. Attach the cable-clamp to the position shown and then attach the cable. (Fig.2G/2H)
Fig.2A Fig.2B Fig.2C
Fig.2D Fig.2E Fig. 2F
