5. ASSEMBLY
5.1 ASSEMBLY THE FOLDING HANDLE

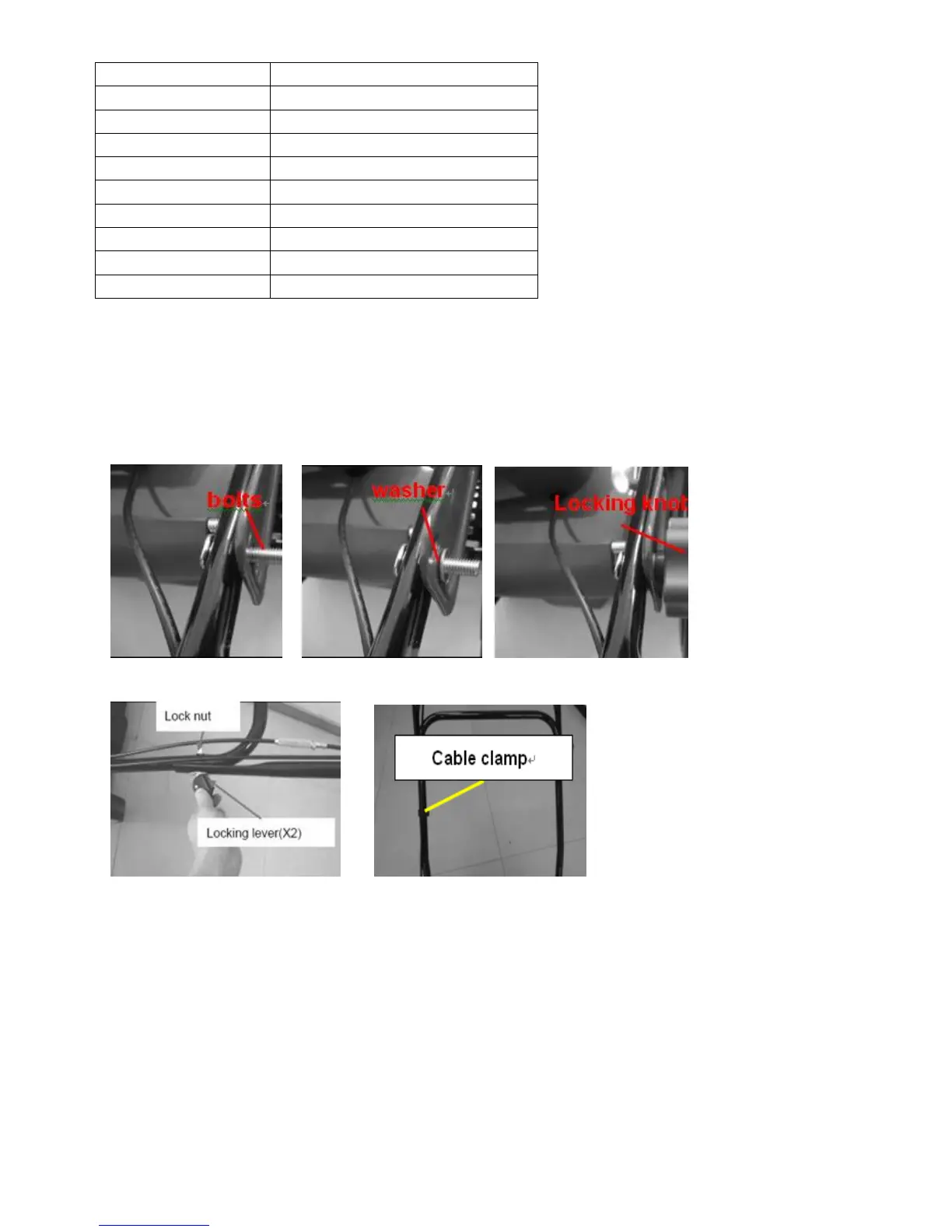

A) Fix the lower handlebars into the unit body with locking knobs, bolts and washers as Fig. 2A,/Fig.2B/Fig.2C shown.
B) Release the upper handlebars for folding. Connect the upper handle and the lower handle with locking knobs, bolts and
washers. (Fig.2D)
C) Attach these to the position shown and then attaches the cable.(Fig.2E)
Fig.2A Fig. 2B Fig. 2C
Fig. 2D Fig. 2E
5.2 ASSEMBLY OF THE GRASS CATCHER
Assemble the handle into the grass catcher (Fig.3A/3B/3C)
Insert one end with a projection into the grass catcher, and then fix the other end of the handle onto the grass
catcher with the screw ST4.8*19.
1. To fit: Raise the rear cover and hitch the grass catcher on the rear of the mower. (Fig.3D/Fig.3E/Fig.3F)
2. To remove: grasp and lift the rear cover, remove the grass catcher.
There is a level indicator on the top of the grass catcher that shows whether the catcher is empty or full:
- The level indicator inflates if the catcher is not full during mowing. (Fig. 3G)
- If the catcher is full, the indicator collapses; once this happens stop mowing immediately and empty the
catcher, make sure it is clean and ensure its meshwork is ventilated. (Fig. 3H)
