Cobra RM46B User Manual

- 6 -

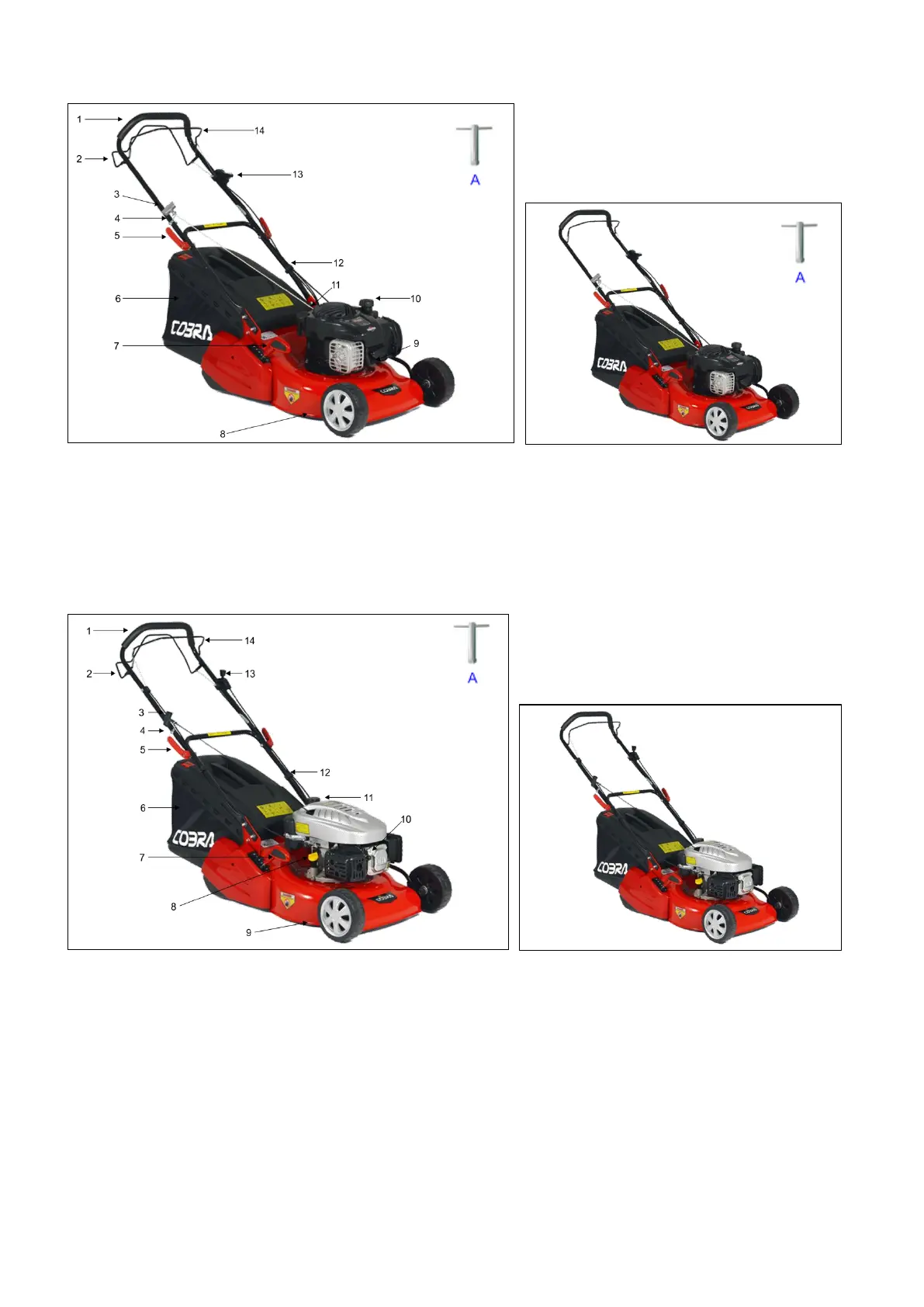

3. PARTS DESCRIPTION
Fig. C for RM46SPB Fig. D for RM46B
1. Upper handle 2. Self-drive control handle 3. Starter handle 4. Rope Guide
5. Locking lever 6. Grass catcher 7. Height adjusting lever 8. Deck
9. Spark Plug 10. Fuel cap 11. Oil cap 12. Cable clamp
13. Throttle choke lever 14. Brake control handle
Including A: Spark plug wrench
Fig. E for RM46SPC Fig. F for RM46C
1. Upper handle 2. Self-drive control handle 3. Starter handle 4. Rope Guide
5. Locking lever 6. Grass catcher 7. Height adjusting lever 8. Oil cap
9. Deck 10. Spark Plug 11. Fuel cap 12. Cable clamp
13. Throttle choke lever 14. Brake control handle
Including A: Spark plug wrench

Cobra RM46B Specifications

General

Brand	Cobra
Model	RM46B
Category	Lawn Mower
Language	English
