Cobra RM46SPCE User Manual

- 8 -

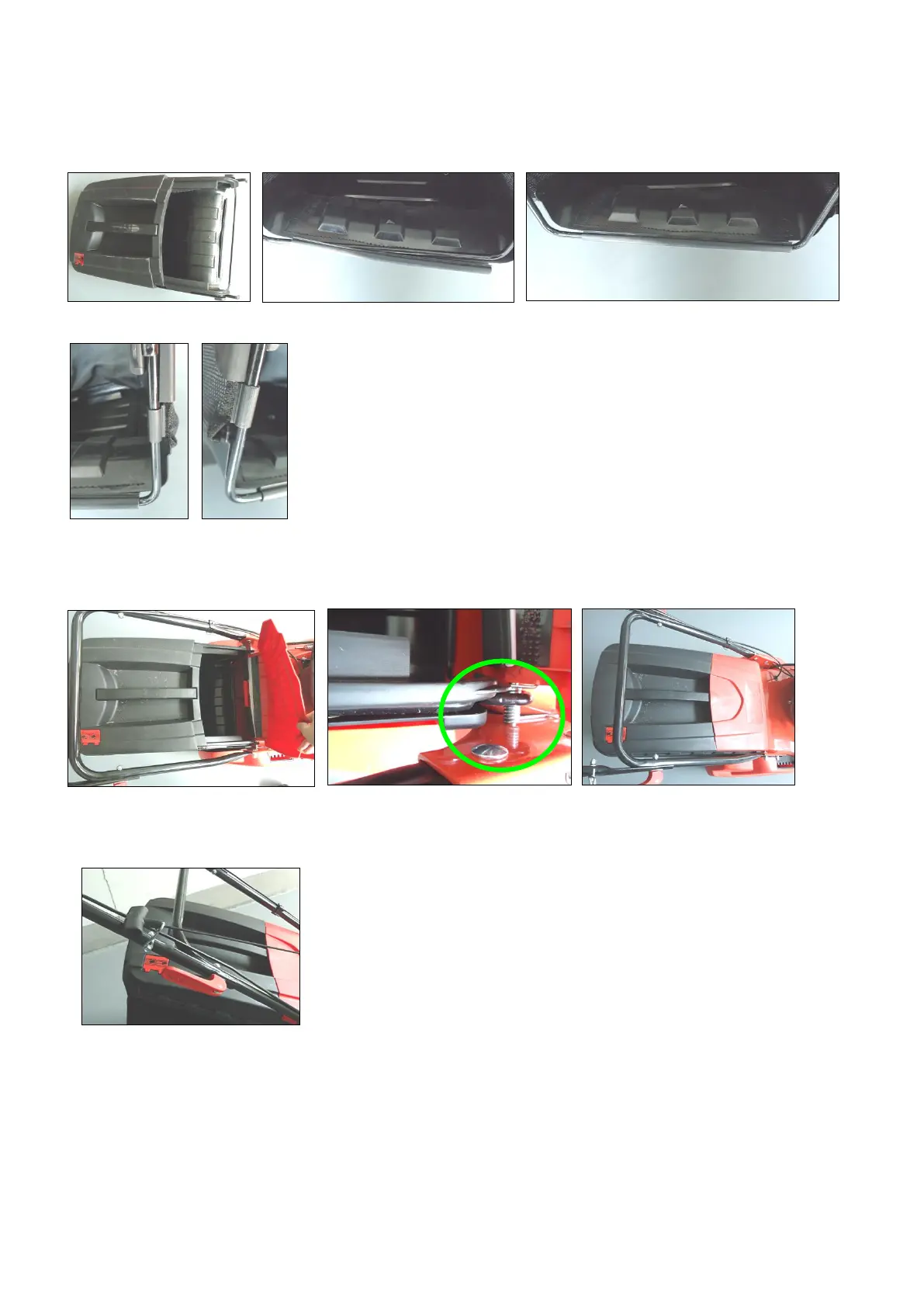

5.2 ASSEMBLE THE GRASS CATCHER
Drop the cloth bag through the metal bracket, open up the reinforced rim on the three sides by hand or using a
screwdriver. Wrap and then clench the reinforced material around the metal support brackets on the three sides
to secure the bag in position. (Fig.2A/2B/2C/2D/2E)
Fig.2A Fig.2B Fig.2C
Fig.2D Fig.2E
1. To fit: raise the rear cover and hitch the grass catcher on the rear of the mower. (Fig. 2F, Fig.2G, Fig. 2H)
2. To remove: grasp and lift the rear cover, remove grass catcher.
Fig. 2F Fig. 2G Fig.2H
5.3 STARTER HANDLE
Engage the Brake control handle then move the starter handle from the engine to the rope guide.
Fig.3A for the Cobra Engine
5.4 HEIGHT OF CUT
Apply outward pressure to disengage the lever from the rack. Move lever forward or back to adjust height.
(Fig.4 and see clause 6.9)
