Cobra RM46SPCE - Assembly; Folding the Handle

- 7 -
RM46SPCE
Guaranteed Sound pressure level
at operator’s position
(According to EN 836 Annex H &
EN ISO 4871)
86,0dB (A)(k=3 dB (A))
Measured sound power level
Guaranteed Sound Power level
(According to 2000/14/EC)
91,7dB (A)
k= 1,81dB (A)
96dB(A)
Vibration
(According to EN 836 Annex G)
2.988m/s²
k=1,5 m/s²
5. ASSEMBLY
5.1 FOLDING THE HANDLE
1. Fix the lower handlebars onto the mower body with bolts, washers with a suitable spanner. (Fig. 1A/Fig.1B)
2. Release the upper handlebars for folding.
3. Push the locking lever closed to lock the handlebars in the operating position. (Fig.1C/Fig.1D)
4. Adjust the tension by turning the lock nut with a suitable spanner. (Fig.1C)
5. Attach the cable-clamp to the position shown and then attach the cable. (Fig.1E)

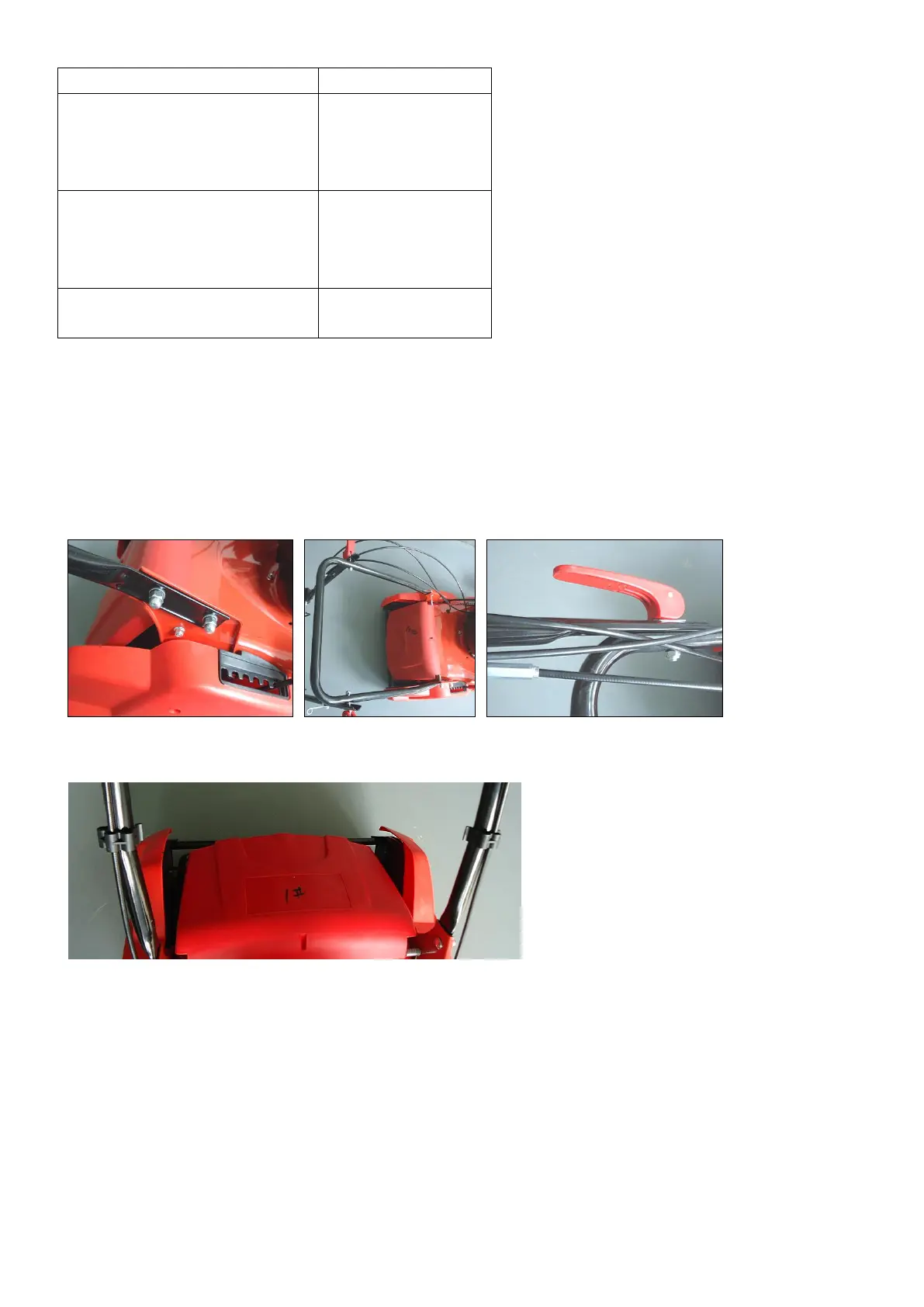

Fig.1A Fig.1B Fig.1C
Fig.1.D
