6

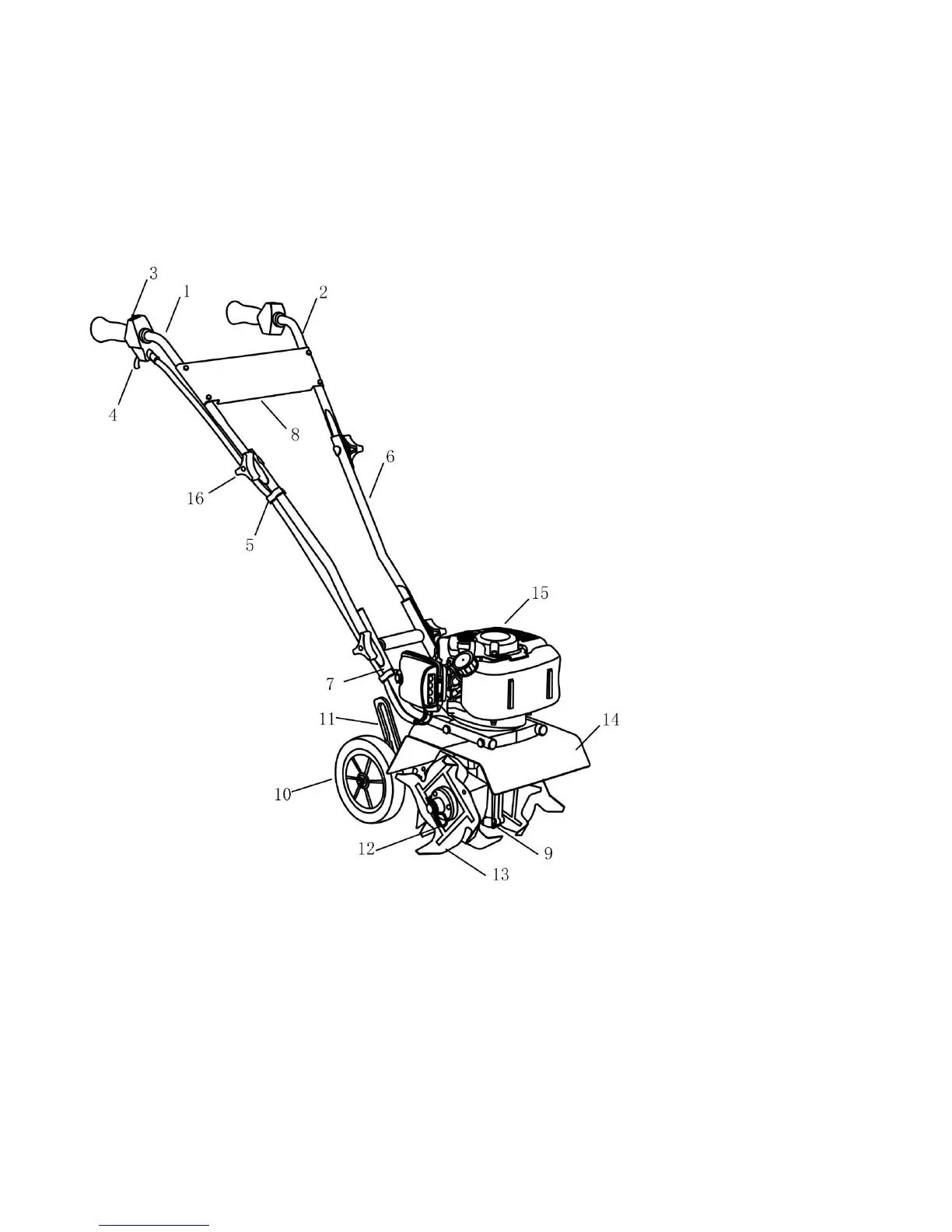

3. COMPONENTS
1. Right handle 2. Left handle 3. Stop Switch 4. Throttle lever
5. Clamps 6. Middle handle 7. Lower handle 8. Top cover plate
9. Gearbox 10. Wheel 11. Wheel bracket 12. Tines lock pin
13. Rotating tine 14. Tiller cover 15. Engine 16. Hand wheel nut
