Cobra T24C - Technical Specification; Assembling and Adjustment; Assembly of Lower Handles; Assembly of Upper Handles

7
4. TECHNICAL SPECIFICATION
Type
T24C
Motor
1E40F-5A
Engine displacement
42.7 cm
3
Rated engine power
1.25 Kw
Blade width
235 mm
Fuel mix, Fuel: 2 Stroke Oil
25:1
Standard engine speed
6500r/min
Net weight
16.2kg
Guaranteed Sound Power
level
(According to 2000/14/EC)
108 dB(A)
Vibration(According to EN
709)
9.85 m/s
2
, K=1.5m/s
2

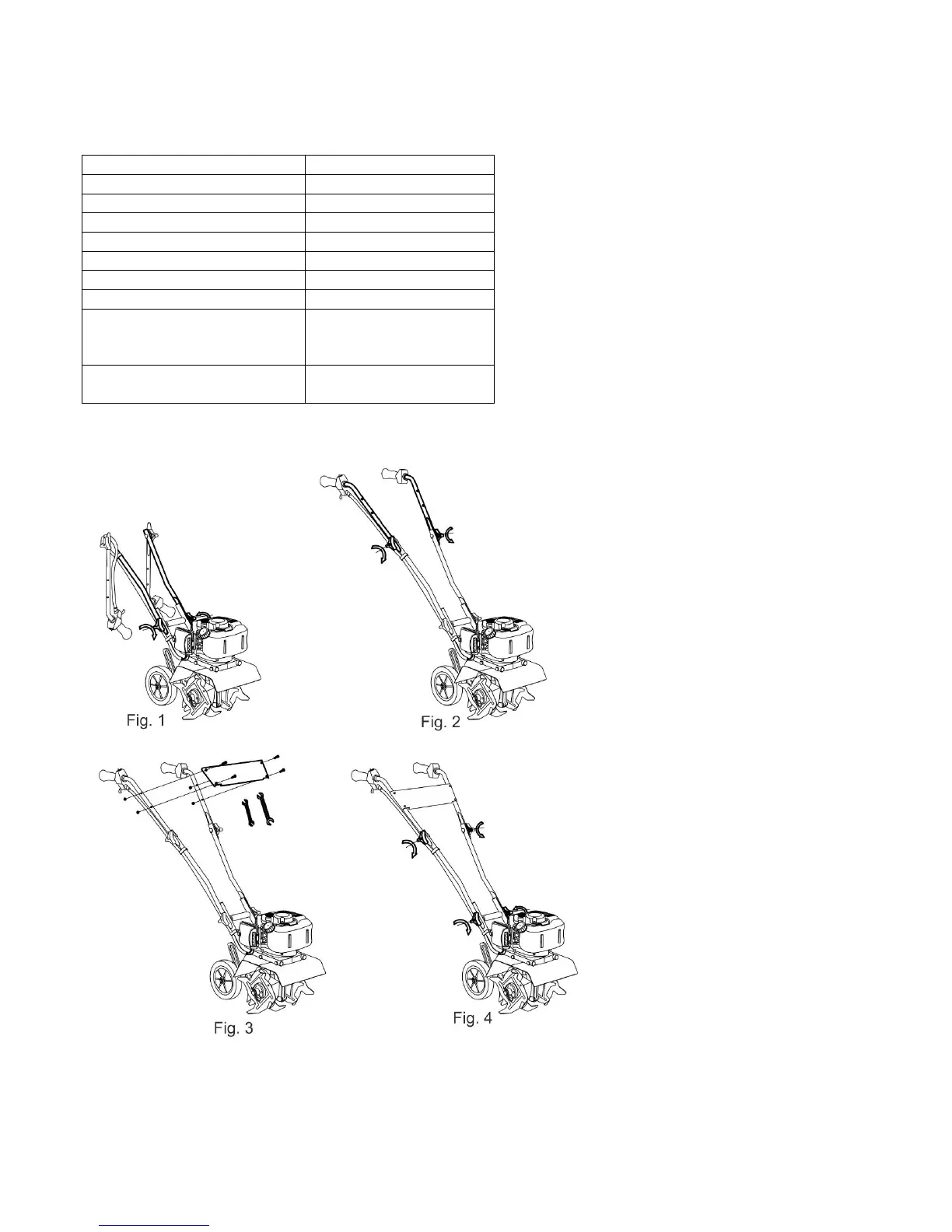

5. ASSEMBLING AND ADJUSTMENT
1. Assembly of Lower Handles
Attach the lower handles and loosely
tighten the hand wheel bolts.
2. Assembly of Upper Handles
Attach the upper handles and loosely
tighten the hand wheel bolts.
3. Fitting the Cover Plate
Fit the cover plate with the nuts and
bolts supplied. Tighten with spanners.
4. Tighten and secure the hand
wheels and other fixings
Adjust the rear wheel: Select the
working height for the wheels. Place the wheels in the highest position when operating and the middle and
lowest position at other times.
