S-Video Input
The S-Video port is capable of accepting signals from standard video sources. (e.g., cable/satellite boxes,
DVD players, VCRs, etc.)
RCA Input
The CVBS port is capable of accepting signals from standard video sources(e.g., cable/satellite boxes, DVD
players, VCRs, etc.) A composite A/V is required to make this connection. A composite A/V cable has a
(yellow/white/red) on each end. The yellow plug is used for the video signal, and the white and red plugs are
used for audio.

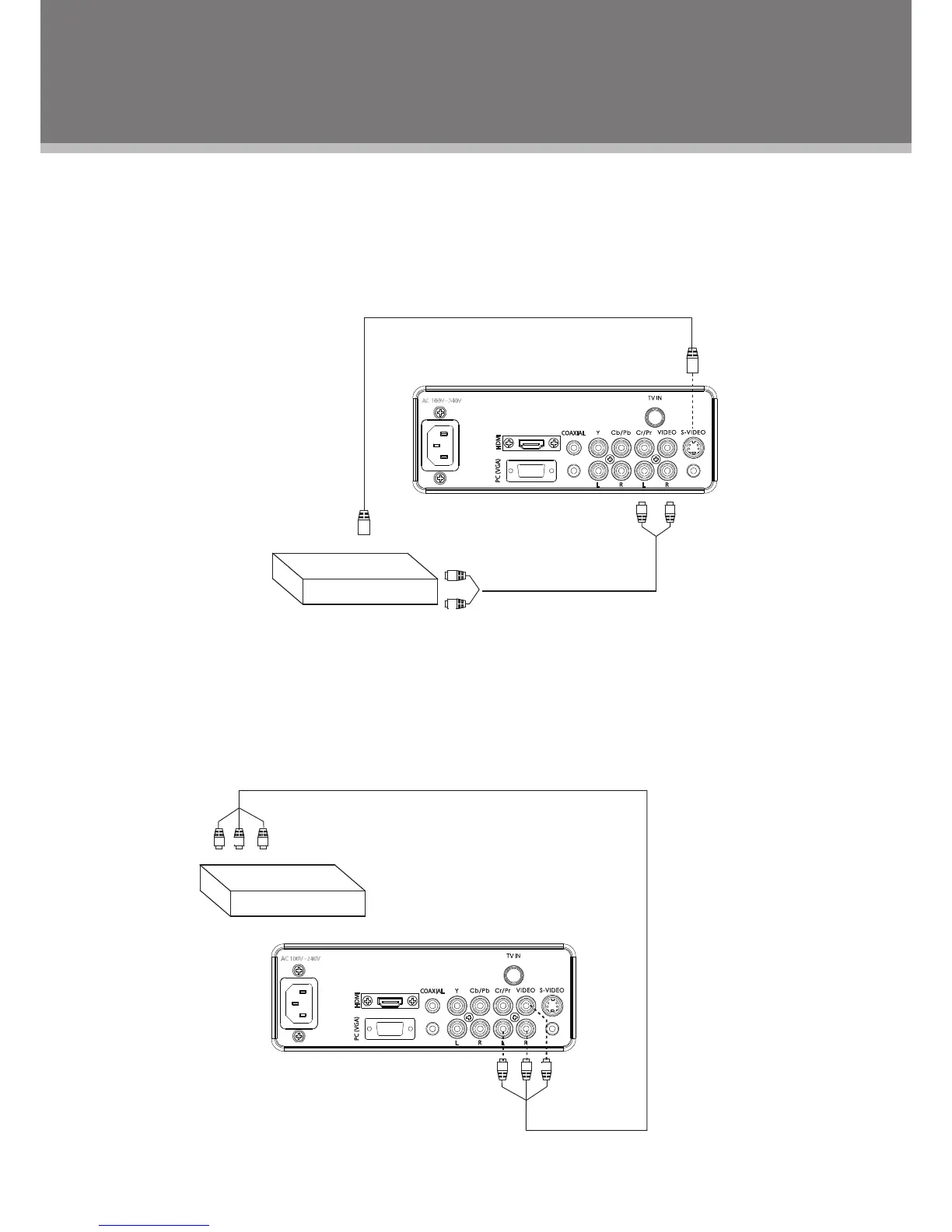

External AV Source
Supplied RCA Cable
1. Connect the S-Video port by the S-Video cable to input the video signal. S-Video cable is not included
with this product
2. Connect the L, R port by the white/red plug of the supplied AV cable to input the audio signal.
3. After all necessary connections have been properly made, turn on both units, select the S-Video mode
with the SOURCE button.
External AV Source
1. Connect the VIDEO port with the yellow plug of the supplied AV cable.
2. Connect the L, R port with the white/red plug of the supplied AV cable.
3. After all necessary connections have been properly made, turn on both units, select the AV mode with the
SOURCE button.
Cable Connections
