Wall Mounting - Attach the TV case to the wall
Separate the TV case and the stand-base by removing screws before installation.•
Use the VESA standard mountings to x the unit on the wall. Take care when mounting, it may cause •
damage or serious injury should it fall from its mountings. See the Specification page for VESA
informaiton. A variety of mounts are available in your local retailer, see instructions when installing the
unit.
NOTE: 10 mm is the maximum depth that screws could be driven inside the unit cabinet without damaging
the player.
1. TFT SCREEN
Present high resolution pictures
2. POWER INDICATOR
The indicator lights bright blue when the
TV is on, it will dim when the TV is turned
off (standby mode).
3. REMOTE SENSOR
Sense the remote control signal.
4. VOL+/-
Adjust sound output level.
5. CH+/-
Press to skip channels.
6. MENU
Display the system setup menu.
7. SOURCE
Press this button to switch modes.
8. POWER
Press to turn on/off the player.
9. Disc Slot
10. Card Slot
11. USB Port
12. STOP - Stop disc playback.
13. PLAY/PAUSE - Start/hold disc playback.
14. OPEN/CLOSE - Open/close the disc room.
15. Wall Mounting Thread X 4
16. Connector Panel
17. Unit Stand
18. Screw - This screw is connecting the TV case
to the unit stand-base.

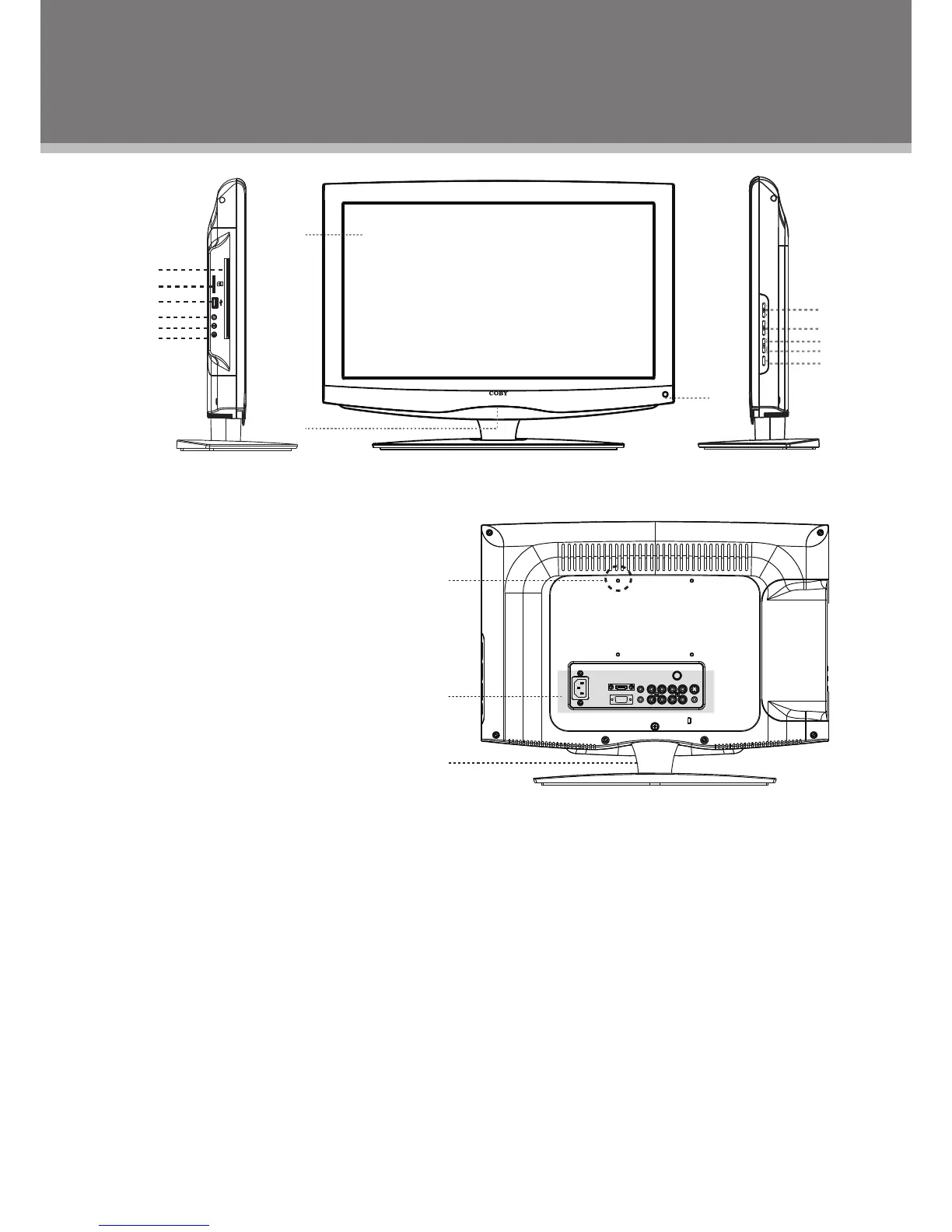

Unit View
NOTE: See "Cable Connections" section for
detailed description on connectors.
