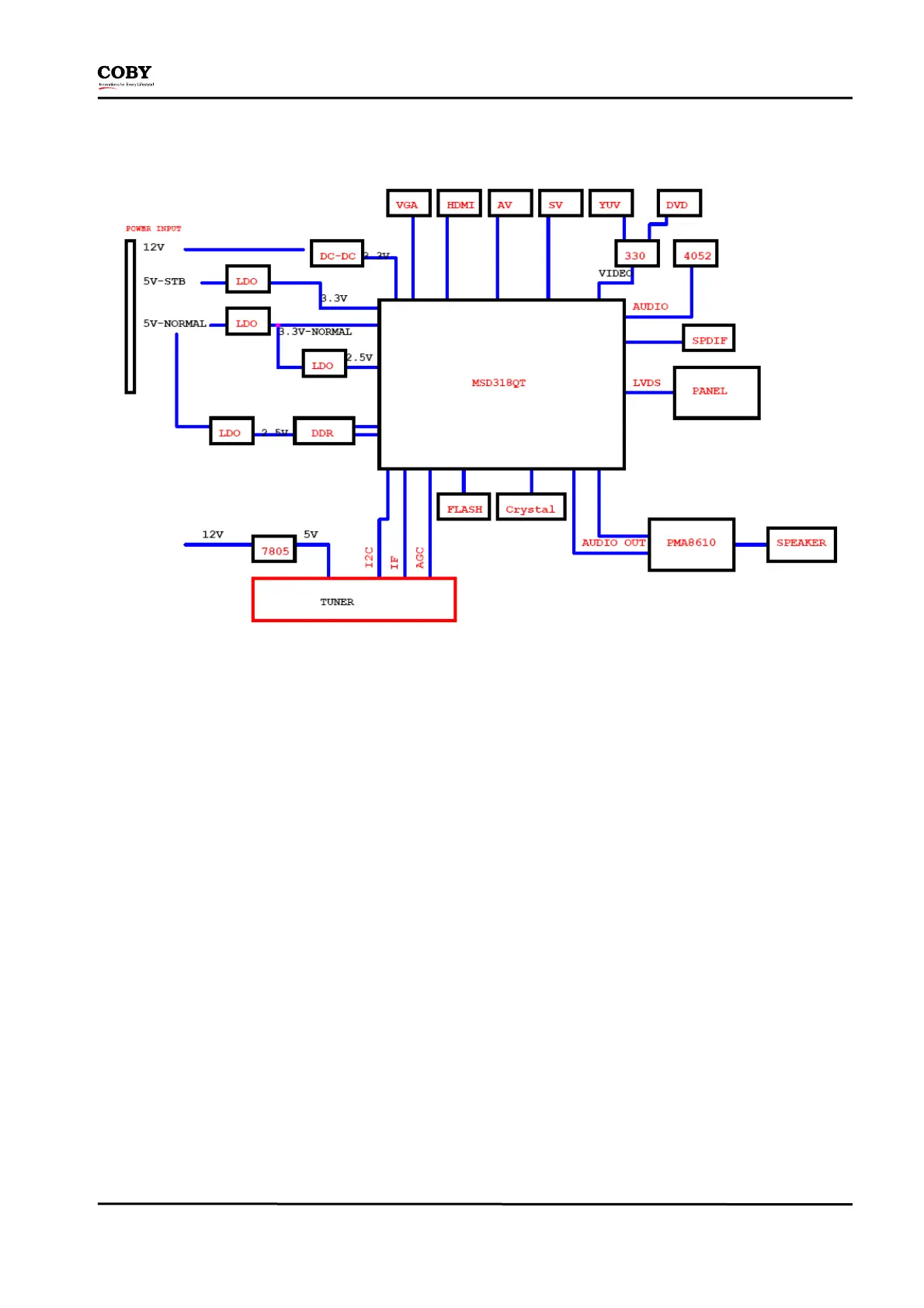

Block Diagram
Note:
1) The flash’s capability will be 32 mb(4MB) while adopt firmware which is more effective and stable
2) The Tuner may also be used with DA58CT-6-E.
3) Key & IR part will be divided into three PCB boards. A IR PCB board, a light board ( standby mode is blue low-light, the
work mode does not shine or high-lights, you can press the light button on the remote control to select the low-light
or high-light), another piece of the key board.
Note:
The TFTV MODEL is supplied by Coby, you can contact with COBY service department
