8
3. 4 PIN HARNESS
Factory Disarm / Pulse Before Start (-) 300mA Output (Lt. GREEN/BLACK)
Locate the factory alarm disarm wire at the key cylinder inside the driver's door.
Verification: This wire registers ground if the key is turned to the unlock position in the driver’s door key
cylinder.
Connect the LIGHT GREEN/BLACK wire to the factory alarm disarm wire.
Factory Re-arm / Pulse After Start (-) 300mA Output (Lt. BLUE)
This wire is usually used to re-lock the vehicle’s doors upon remote start if necessary. This wire supplies a
pulsed 300mA negative output following the remote start sequence.
Pulse After Shutdown (-) 300mA Output (GREEN/WHITE)
This wire is usually used to re-lock the vehicle’s doors if they unlock upon remote start shutdown. It can
also be used to pulse a door pin-switch wire to prevent the vehicle’s accessories from remaining on after
remote start shutdown.

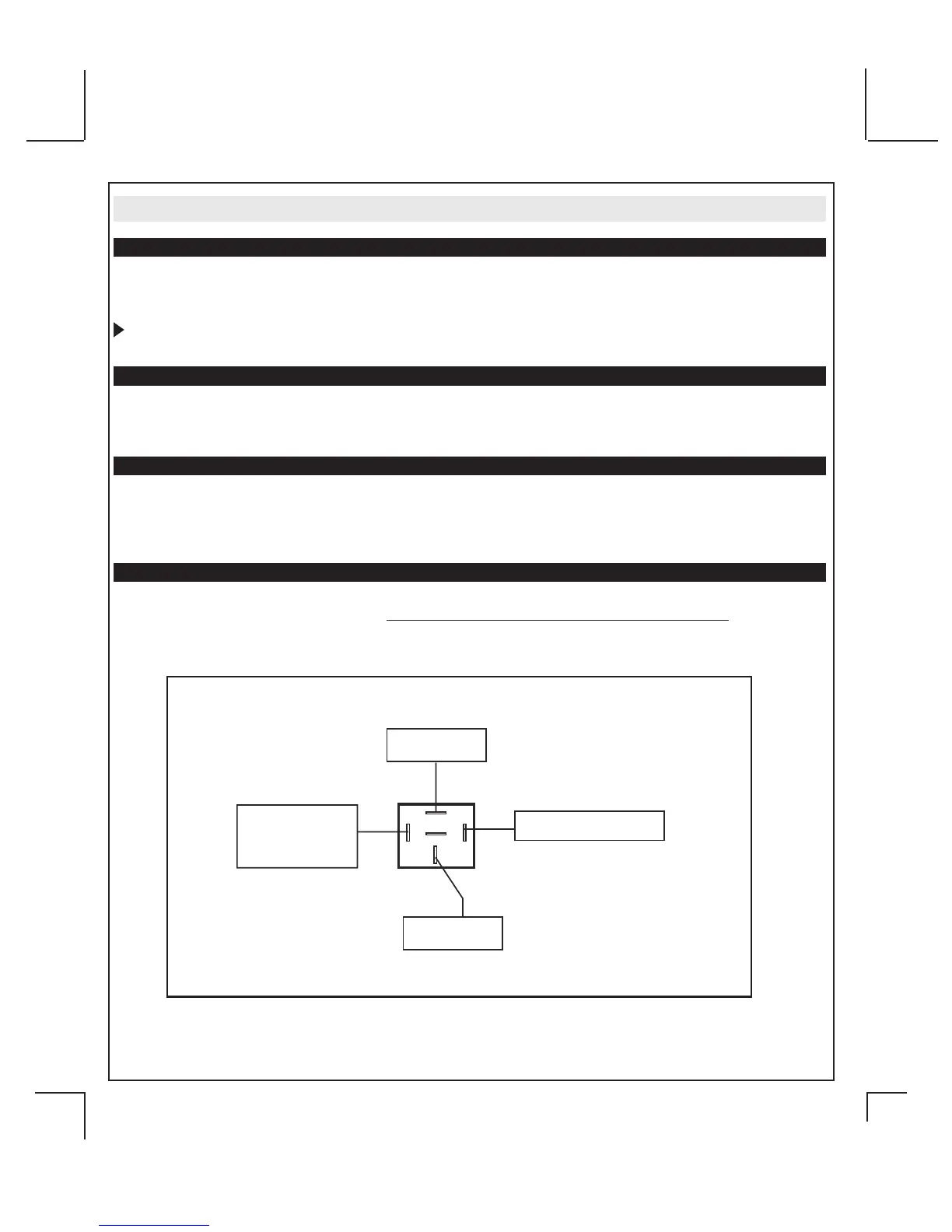

Pulse During Crank (-) 300mA Output (BLACK/YELLOW)
Locate the vehicle’s second starter (crank) wire at the ignition switch. (if equipped)
Verification: This wire registers voltage
only in the start (crank) position of the ignition switch.
Fused +12 Volt
Battery Source
30
87
87a
86
85
BLACK/YELLOW Pulse
During Crank Wire
To Vehicle's 2nd
Starter Wire
Jump To PURPLE
Starter Output
Wire From The
Control Module
To Next Page
