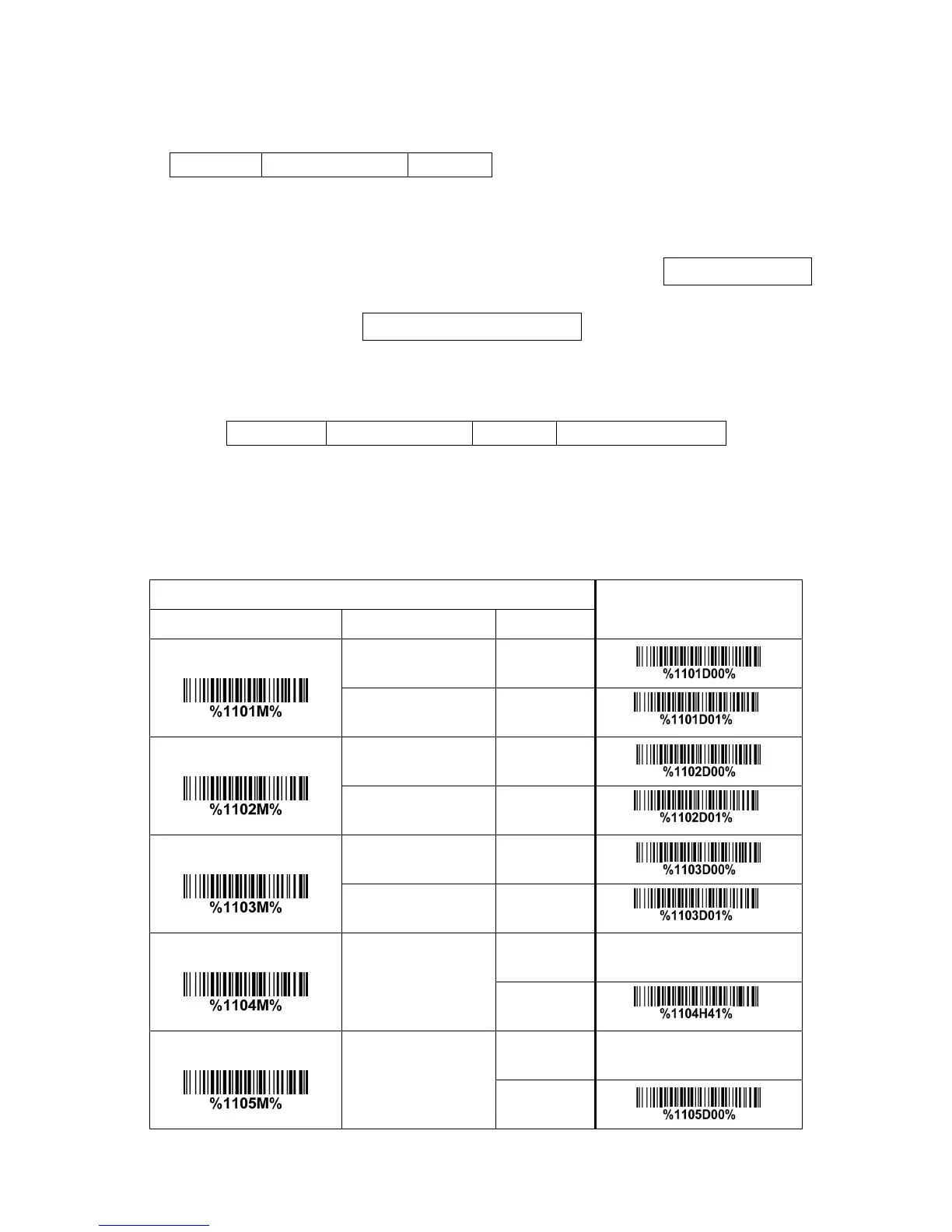

Code Soft CS6200 Series - Upc-A

27
UPC-A
Read: Format
Leading zero Data digits (11 digits) Check digit
Check digit verification: The check digit is optional.
Check digit trans.: By setting Enable, check digit will be transmitted.
Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a
succeeding reading. If you want application to transmit Code ID, you must set Code ID transmission to
be enabled. Refer to the chapter of String transmission.
Insertion group selection: Refer to Global insertion group selection of the chapter of Hand-held scan &
some global settings.
Supplement digits: The Supplement digits barcode is the supplemental 2 or 5 characters.
Format
Leading zero Data digits (11 digits) Check digit Supplement digits 2 or 5
Truncation/Expansion:
Truncate leading zeros- The leading “0” digits of UPC-A data characters can be truncated when the
feature is enabled.
Expand to EAN-13- It extends to 13-digits with a “0” leading digit when the feature is enabled.
Multiple-scan setting
Option bar code Option Alpha. entry
Single-scan setting
Disable 00
Read
Enable 01*
*
Disable 00
Check digit verification
Enable 01*
*
Disable 00
Check digit trans.
Enable 01*
*
00-FF
16
Code ID setting
00-FF
16
(ASCII)
<A>*
*
00-66
Insert group selection
00-66
00*
