Code Gobo 200 User Manual

English Manual
- 4 -

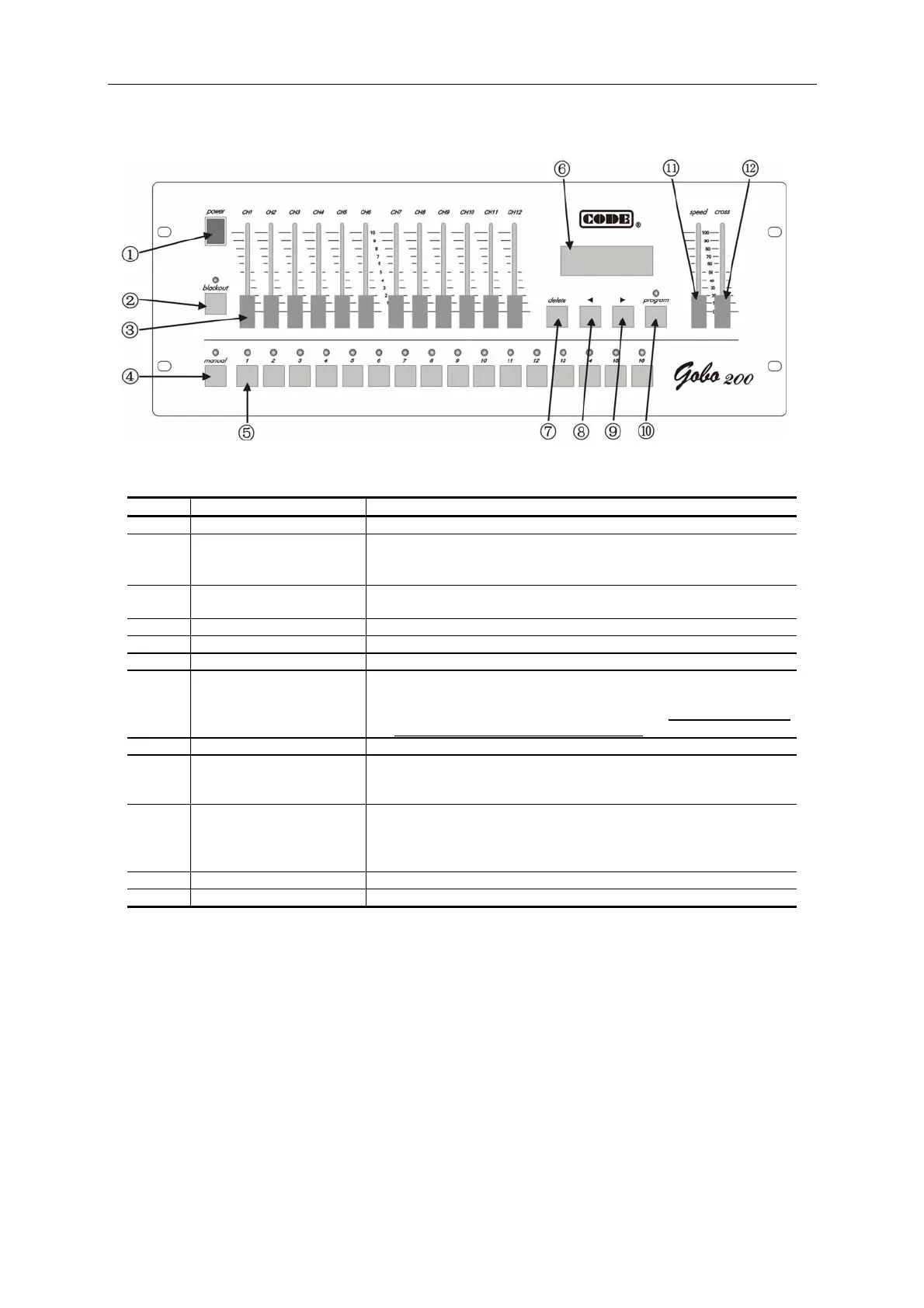

Panel of GOBO 200
No. Name Functions and purposes
1 power switch Switch of AC power of the controller.
2 blackout key
The key state is indicated by LED as following:
♦ When its LED is on, the controller is in blackout state;
♦ When its LED is off, the controller is in running state;
3
CH1~CH12 channel slider
In program edit, move the slider can change the channel control
value of a specified scanner.
4 manual operation key When its LED is on, the controller is in manual state;
5 Number key 1~16 These keys are used to choose chase program and scanner.
6 LCD display Display the current state of the controller and various setting values.
7 delete key
Be used in program edit state:
♦ Press the key quickly to delete the current chase step.
♦ Press the key for more than 1 second to delete chase steps
quickly until the chase program is empty.
8 ◄ Direction key In program edit, use it to check chase steps backwards.
9 ► Direction key
In program edit, use it to check chase steps forwards.
If the current step is the last one (with *), press the key to add a step
and copy the contents of the current step to the new one.
10 program key
♦ Press the key for more than 1 second, its LED is on and the
controller is in chase program edit state;
♦ Press the key for more than 1 second again, its LED is off and
the controller is in running state;
11 speed slider Adjust chase speed, 0=slowest, 100%=fastest.
12 cross slider Adjust cross time between steps, 0=slowest, 100%=fastest.

Code Gobo 200 Specifications

General

Brand	Code
Model	Gobo 200
Category	Controller
Language	English
