cabling
The mains cable providedis thermally resistant, conforming to the most recent international standards.
N.B. in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively. (cable 3x1,5
external 8 mm, rated 300/500V, tested to 2KV, operating temperature -40° +180°).
mains connection
iWashLed may operate at 100V-115V-208V-230V-240V at either 50 or 60 Hz (operating voltage should be selected as discussed in
section 5 of this manual). Prior to connecting the unit to your mains supply, ensure that the model in your possession correctly matches
the mains supply available to you. For connection purposes, ensure that your plug is of a suitable rating: 0,6 amps at 230v and 1,2
amps at 115v.

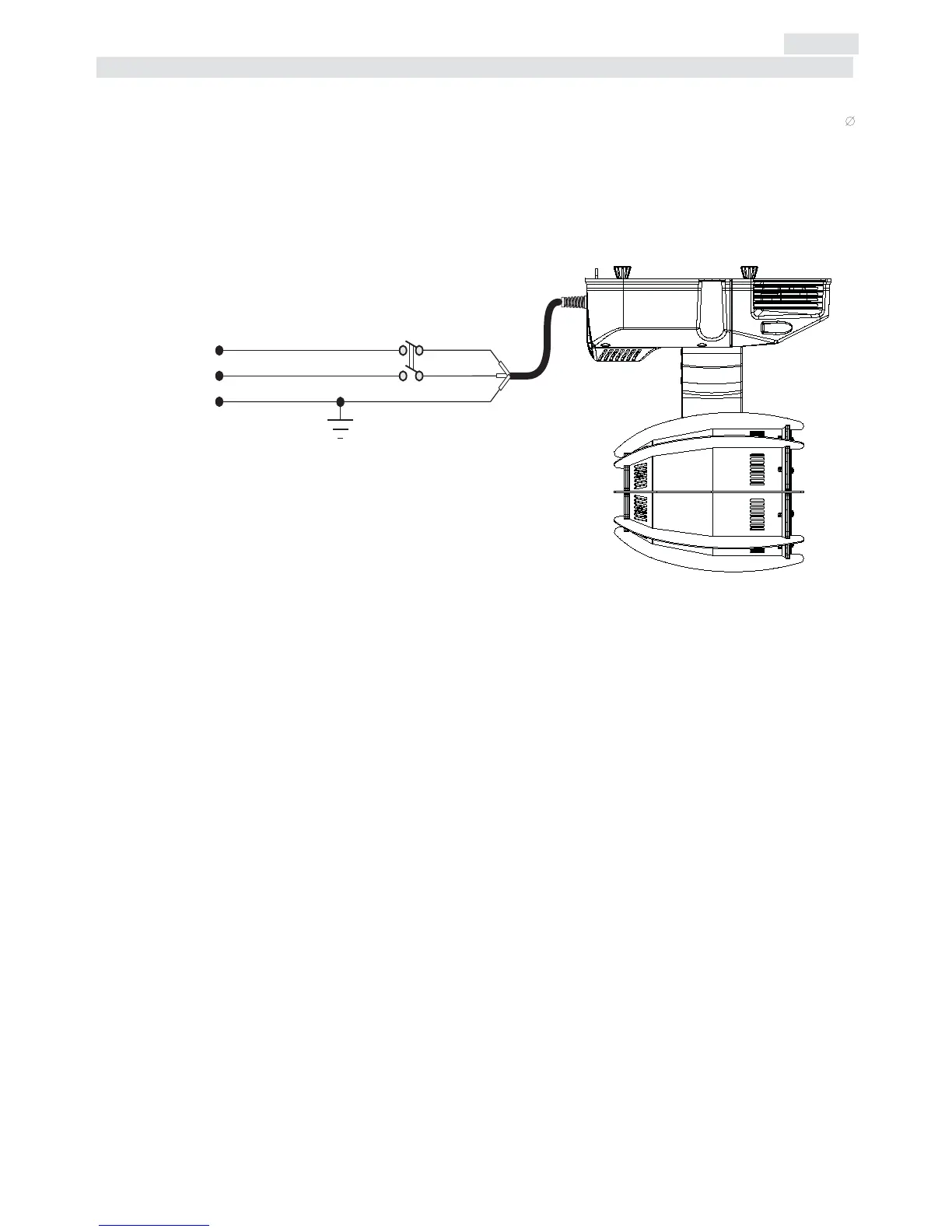

Locate the mains cable which exits the base of the unit and connect as shown below:
protection
The use of a thermal magnetic circuit breaker is recommended for each projector.
A good earth connection is essential for the correct operation of the fixture. Strict adherence to regulatory norms is strongly recommen-
ded.
To Next Page
