Control signal is digital and is transmitted via two pair screened ø 0,5cable.

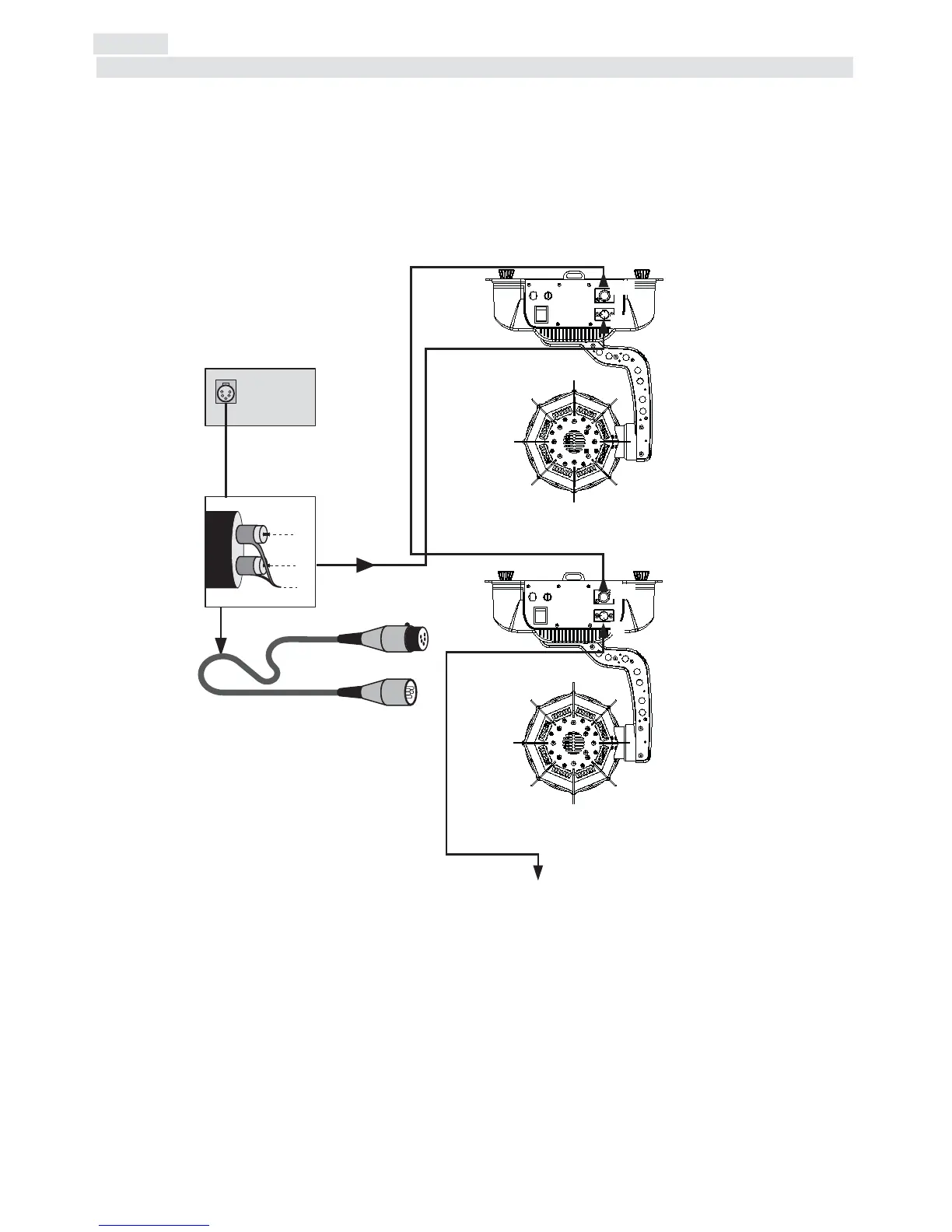

Connection is serial, utilising XLR 3 male and female sockets on the base of the iWashLed, labeled DMX 512.
If signal output is from a DMX 512 console using cannon XLR5 (5 pin) connectors, do not use pins 4 and 5: leave them unconnected.
Pin connection conforms to international standards:
pin 1 = screening 0 volts pin 4 = not connected
pin 2 = data - pin 5 = not connected
pin 3 = data +
Signal connection using XLR3 plugs/sockets:
Ensure that all data conductors are isolated from one another and the metal housing of the connector.
N.B. the housing of the cannon XLR3 or 5 non must be isolated.
