Cofem COMPACT LYON - Page 11

Digital fire detection control panel
COMPACT LYON
FIRE PRETECTION MANUFACTURER 11
Ctra. de Molins de Rei a Rubí, Km. 8,4 - 08191 RUBÍ (Barcelona) ESPAÑA.
Tlf.: +34 935 862 690 - Fax:+34 936 999 261 - cofem@cofem.com - www.cofem.com

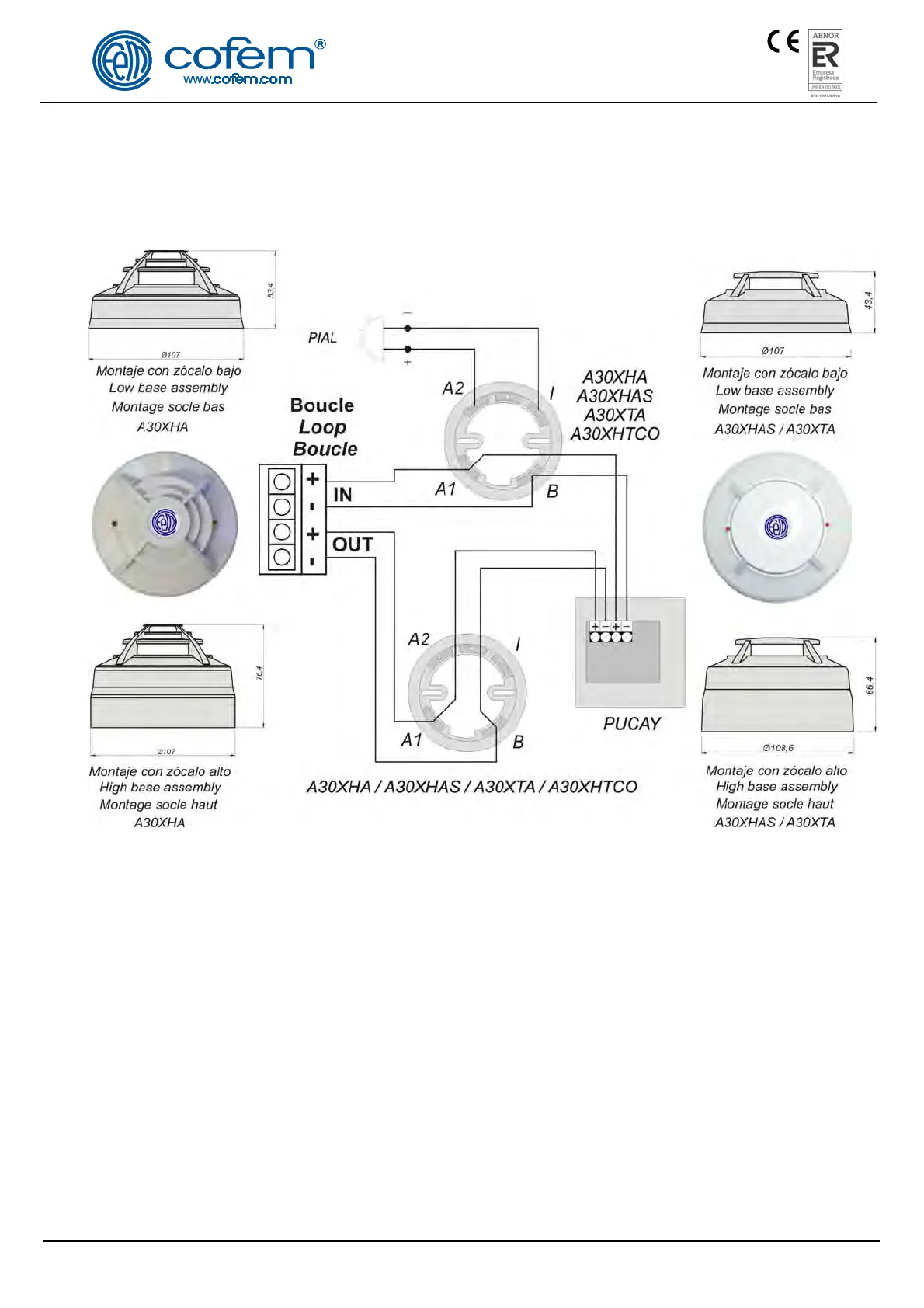

Figure 2. Connection schematic A30XHA, A30XHAS, A30XTA, A30XHTCO and PUCAY
