Cognex In-Sight 3D-L4000 Series Reference Guide

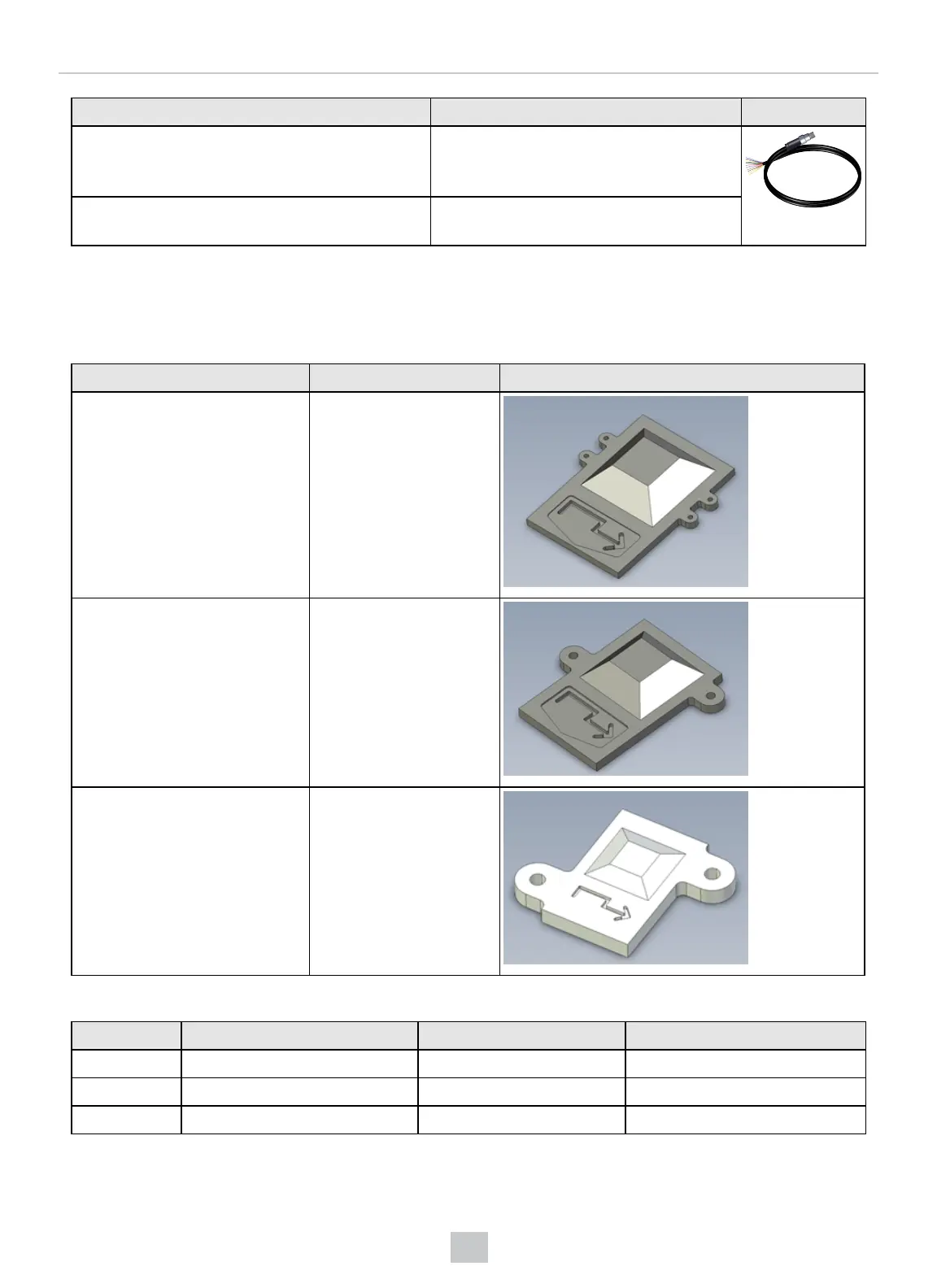

Accessory Product Number Illustration
M12 with 17 pins to Flying lead, Straight, xx (xx
specifies length:2m, 5m, 10m, 20m)
CCB-PWIO17-S-xx (xx specifies length:2m,
5m, 10m, 20m)
M12 with 17 pins to Flying lead, Right Angle, xx (xx
specifies length:2m, 5m, 10m, 20m)
CCB-PWIO17-R-xx (xx specifies length:2m,
5m, 10m, 20m)
Correction Targets
To perform a correction on a 3D smart camera, you must use a Cognex-supplied correction target. The target consists
primarily of a frustum, a feature exhibiting six different planes with eight intersecting points.
Accessory Correction Target Illustration
40 mm correction target IS3D-CORR40-00
20 mm correction target IS3D-CORR20-00
10 mm correction target IS3D-CORR10-00
The following table lists all the correction target models.
Model Top side (mm) Height (mm) Camera Model
CT40 40 20 3D-L4300
CT20 20 10 3D-L4100
CT10 10 2 3D-L4050
Contact your Cognex sales representative for choosing the right calibration target for your application.
8
