COLBOR CL60M - Settings; Wireless Connection; Fan Mode; Group

CL60M Video
Light x1
COMM.
RP
CURVE
RX
ON
LINEAR
BT
FAN
GROUP
RESET
SMART
A
Settings

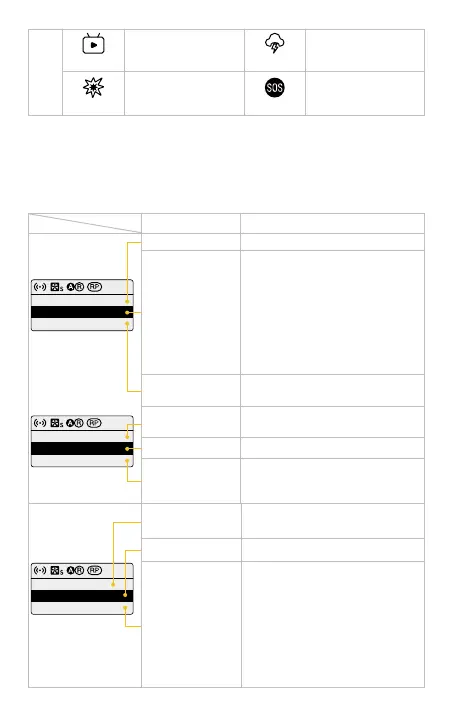

1. Short press Settings Button to enter settings menu.
2. Roll the Brightness Control Wheel to choose setting.
3. Roll the Color Temperature Control Wheel to adjust corresponding setting
(Wireless connection adjust need short press).
Fan Mode
Wireless Connection
Communication
Settings Options
SMART/ QUIET
(SMART—The product will detect
the current internal temperature to
adjust the fan speed by itself.
QUIET—The fan will run at low
speed. If the product temperature
reaches the alarm value, it will
start the power-o protection
mechanism. )
RESET
TX/ RX/ TXRX (TX by default)
Group
NULL/ A~O (NULL by default)
Repeater ON/ OFF (OFF by default)
Curve
LINEAR (L.CURVE, E.CURVE,
S.CURVE will be available soon
through upgrade.)
Response
Language
Product INFO.
SHARP / SMOOTH (SMOOTH by
default)
EN/ CN
Short press the Color Temperature
Control Wheel to enter the
production information interface.
Long press the Color Temperature
Control Wheel to settings menu.
① Hardware Version
② Firmware Version
③ Protocol Version
④ MAC Address
When Group function is on, if the product is operated after a period
of time, it takes time to connect between products, so there will be
millisecond delay.
The eective distance of transmitter(TX), receiver (RX), transmitter &
receiver (TXRX) is 10 meters.
Repeater (RP) function is the auxiliary function to enhance the signal of
light control and the eective distance of light control. However, too many
uses of RP function can aect product response time due to environmental
factors.
If the distance between lights in a group is more than 10 meter, it is
recommended to set a light in the middle as a signal RP point to increase
the control distance. In addition, in the state of multi-light connection, the
response of the product can be eectively improved when the RP function
of one light is turned on if connected lights are more than ve, the RP
function of two lights are turned on if there are more than ten, and so on.
Restore factory settings: long press two wheels together for 5 seconds
and the product reboots to restore the factory default mode.
RESP.
LANG.
ProductINFO.
SHARP
EN
Packaging List
Standard Adapter
(Bowens Mount)
x1
Light Base x1
Bowen Mouth
Reector x1
COB protective
cover x1
Power Adapter x1
Carrying Bag
x1
User Manual
x1
WARRANTY
Warranty Period
Thank you for purchasing COLBOR products.
1. Customers are entitled to free replacement or repair service in case of
quality defect(s) found in the product under normal use within 30 days upon
receipt of the product.
2. Original COLBOR products are entitled to 12-month limited warranty service.
The warranty period begins on the date of purchase of brand new, unused
products by the rst end-user.
Within the warranty period, if product defect or failure is attributable to material
defection or technological problem, the defective product or defective part will
be repaired or replaced without charge (service and materials fee).
Warranty Exclusions and Limitations
1. Faults resulted from inappropriate use of a product without following its
operation specication
2. Articial damage, e.g. crash, squeeze, scratch, soaking, exposing to rain or
damp
3. Modications to a product by its user or a third party without prior written
consent of COLBOR, e.g. replacement of element or circuit, label alteration
4. The code on product is inconsistent with that of warranty certicate, or the
code on the product or warranty certicate is altered or torn o
5. All consumable accessory attached to a product, like cable, cover
6. Faults as a result of force majeure, such as re, ood, lightning, etc.
Warranty Claim Procedure
1. If failure or any problem occurs to your product after purchase, please
contact a local agent for assistance, or you can always contact COLBOR’s
customer service through email.
2. Please retain your sales receipt and warranty certicate as proof of
purchase. If any of these documents is missing, only sales return or chargeable
service will be provided.
3. If the COLBOR product is out of the warranty coverage, the service and the
parts cost will be charged.
About Product
1. After the test, the product with assembly structure has bearing capacity of
4kg. Customers need to use according to actual conditions.
2. It is recommended to use the original power adapter for power supply.
The malfuction will not be included in the warranty if use other equipment to
power the product.
3. When more than ve lights are assembled into a light matrix, turning
on the RP function in one of them to provide better control stability. If the
number of lights reaches 10, enable the RP function for two of them，and so
on.
Form 1
The data is given from testing in a laboratory.
Illumination
Light Base
Reector
0.5m
LUX
FC
LUX
FC
12765
1185
86250
7809
492
46
2381
221
3243
301
22540
2093
268
25
675
63
3m1m 5mCCT
5600
WARRANTY CERTIFICATE
USER
INFORMATION
SALES
INFORMATION
REPAIR RECORD
RESULT
Please register your warranty. Meanwhile, you are welcomed to contact us via Email.
Customer Name:
Phone Number:
Email:
Address:
Service Date:
Technician:
Issue:
Sales Date:
Model:
Product Code:
Dealer:
Solved Unsolved Returned(Replaced)
Room 2401, 24 / F, South Tower, Lisheng Plaza, No. 68 Huadi Avenue, Liwan District,
Guangzhou, China, 510000
support@colborlight.com
www.colborlight.com
Guangzhou Zhiying Technology Co., Ltd
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: LOCK
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: 5600K
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: 5600K
RATE: LOCK
DIM: 0%-100%
CCT: 5600K
TV
Explosion
Lightning
SOS
EFF
Specications
Color Rendering Index
Color Temperature Range
Beam Angle
Illumination
COB Output Power
Rated Power
Light Working Voltage
Cooling Mode
Connector
Body Material
Light Dimension (mm)
Weight
Operating Environment Temperature
97+
5600K (±200K)
≈∠ 120° Reector ≈∠ 15°
See the Form Below
＞ 60W
80W (Max)
DC 20V 4A
SMART/QUIET
Type-C, supports PD3.0 20V 4A
Aluminum Alloy+ABS
140*80*90 (Light Base Not Included)
Light: 550g Light Base: 160g
-10~50℃
Download COLBOR Studio ™ APP
1.Scan the following QR code to install.
2.Search COLBOR STUDIO on App Store or Google Play.
COLBOR STUDIO
