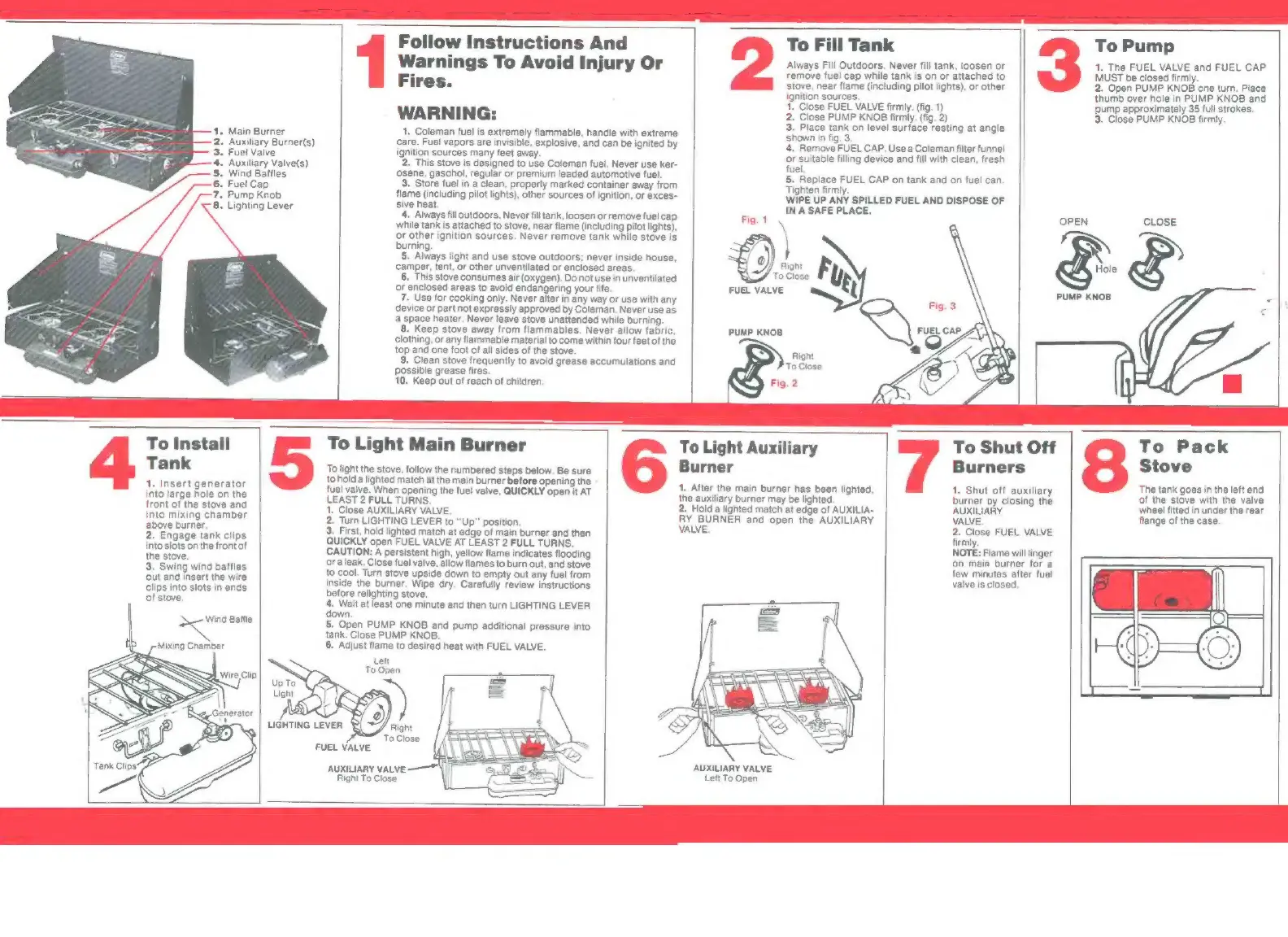

Coleman 413H How To Use

4. Main Burner
2. Auxiliary Burner(s)
3. Fuel Valve
4. Auxiliary Valves)
5. Wind Batfles
6. Fuel Cap
T. Pump Knob
8. Lighting Lever
Follow Instructions And
Warnings To Avoid Injury Or
Fires.
WARNING:
1. Coleman fuel is extremely flammable, handle with extreme
care. Fuel vapors are invisible, explosive, and can be ignited by
ignition sources many feet away.
2. This stove is designed to use Coleman fuel. Never use ker-
osene, gasohol, regular or premium leaded automotive fuel.
3. Store fuel in a clean, properly marked container away from
flame (including pilot lights), other sources of ignition, or exces-
sive heat.
4, Always fill outdoors, Never fill tank, loosen or remove fuel cap
while tank is attached to stove, near flame (including pilot lights),
or other ignition sources. Never remove tank while stove is
burning.
5. Always light and use stove outdoors; never inside house,
camper, tent, or other unventilated or enclosed areas,
6. This stove consumes air (oxygen). Do not use in unventilated
or enclosed areas to avoid endangering your life.
7. Use for cooking only. Never alter in any way or use with any
device or part not expressly approved by Coleman. Never use as
a space heater. Never leave stove unattended while burning.
8. Keep stove away from flammables. Never allow fabric,
clothing, or any flammable material to come within four feet of the
top and one foot of all sides of the stove.
9. Clean stove frequently to avoid grease accumulations and
possible grease fires.
10. Keep out of reach of children.
To Fill Tank
Always Fill Outdoors. Never fill tank, loosen or
remove fuel cap while tank is on or attached to
stove, near flame (including pilot lights), or other
ignition sources.
1. Close FUEL VALVE firmly. (fig. 1)
2. Close PUMP KNOB firmly. (fig. 2)
3. Place tank on level surface resting at angle
shown in fig. 3,
4. Remove FUEL CAP. Use a Coleman filter funnel
or suitable filling device and fill with clean, fresh
fuel.
5. Replace FUEL CAP on tank and on fuel can
Tighten firmly.
WIPE UP ANY SPILLED FUEL AND DISPOSE OF
IN A SAFE PLACE.
Right
To Close
To Pump
1. The FUEL VALVE and FUEL CAP
MUST be closed firmly.
2. Open PUMP KNOB one turn. Place
thumb over hole in PUMP KNOB and
pump approximately 35 full strokes.
3. Close PUMP KNOB firmly.
OPEN CLOSE
& e
PUMP KNOB P.
To Install
Tank
4. Insert generator
into large hole on the
front of the stove and
into mixing chamber
above burner.
2. Engage tank clips
into slots on the front of
the stove.
3. Swing wind baffles
out and insert the wire
clips into slots in ends
of stove
Wind Baffle
Mixing Chamber
Right
To Close
FUEL VALVE
AUXILIARY
VALVE
7"
GP.
a
To Light Main Burner
To light the stove, follow the numbered steps below. Be sure
to hold a lighted match at the main burner betore opening the
fuel valve. When opening the fuel valve, QUICKLY open it AT
LEAST 2 FULL TURNS.
1. Close AUXILIARY VALVE.
2. Turn LIGHTING LEVER to "Up" position.
3. First, hold lighted match at edge of main burner and then
QUICKLY open FUEL VALVE AT LEAST 2 FULL TURNS.
CAUTION: A persistent high, yellow flame indicates flooding
or a leak, Close fuel valve, allow flames to burn out, and stove
to cool. Turn stove upside down to empty out any fuel from
inside the burner. Wipe dry. Carefully review instructions
before relighting stove
a: Wait at least one minute and then turn LIGHTING LEVER
jown.
5. Open PUMP KNOB and pump additional pressure into
tank. Close PUMP KNOB.
6. Adjust flame to desired heat with FUEL VALVE.
Left
To Open
Right To Close
To Light Auxiliary
Burner
1. After the main burner has been lighted,
the auxiliary burner may be lighted.
Burners
2. Hold a lighted match at edge of AUXILIA- AUXILIARY
RY BURNER and open the AUXILIARY VALVE.
VALVE
2.
Close
FUEL
VALVE
firmly,
valve is closed.
AUXILIARY VALVE
Left To Open
To Shut Off
1. Shut off auxiliary
burner py closing the
NOTE: Flame will linger
on main burner for a
few minutes after fuel
To Pack
Stove
The tank goes in the left end
of the stove with the valve
wheel fitted in under the rear
flange of the case.
