Coleman 413H How To Use

407-6491
a
426-5021 ——+ \
220B175
426-5621
DETAIL "A"
426-6611
425-1491
NS 2008175
412-5621 FRX J
ON
i
425-6461 — 7|
DETAIL “C”
412-6601
V 216A5091
NI
ba A
530A5071
200-6381 Fa
24205201
DETAIL “B”
24205201

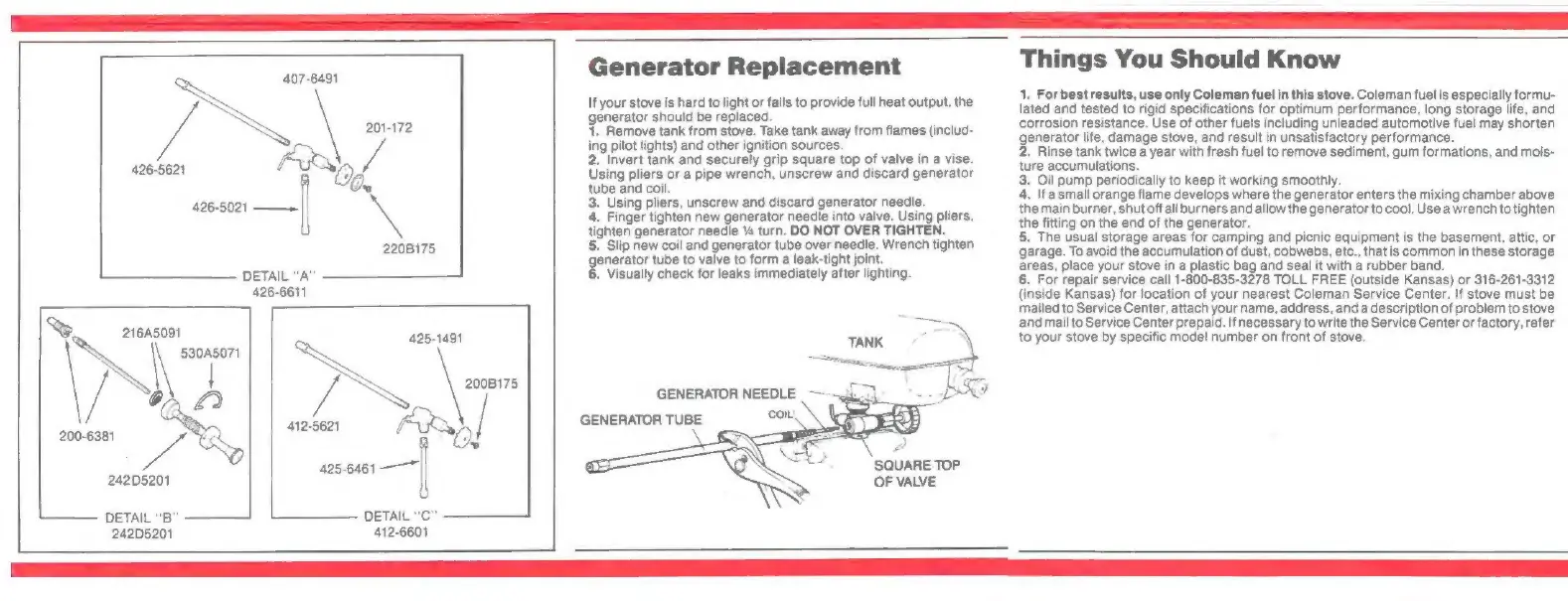

Generator Replacement
If your stove is hard to light or fails to provide full heat output, the
generator should be replaced.
1. Remove tank from stove. Take tank away from flames (includ-
ing pilot lights) and other ignition sources.
2. Invert tank and securely grip square top of valve in a vise.
Using pliers or a pipe wrench, unscrew and discard generator
tube and coil.
3. Using pliers, unscrew and discard generator needle.
4. Finger tighten new generator needle into valve. Using pliers,
tighten generator needle 14 turn, DO NOT OVER TIGHTEN.
5. Slip new coil and generator tube over needle. Wrench tighten
generator tube to valve to form a leak-tight joint.
6. Visually check for leaks immediately after lighting.
GENERATOR NEEDLE
GENERATOR TUBE
SQUARE TOP
OF VALVE
Things You Should Know
1. For best results, use only Coleman fuel in this stove. Coleman fuel is especially formu-
lated and tested to rigid specifications for optimum performance, long storage life, and
corrosion resistance. Use of other fuels including unleaded automotive fuel may shorten
generator life, damage stove, and result in unsatisfactory performance.
2. Rinse tank twice a year with fresh fuel to remove sediment, gum formations, and mois-
ture accumulations.
3. Oil pump periodically to keep it working smoothly.
4. Ifa small orange flame develops where the generator enters the mixing chamber above
the main burner, shutoff all burners and allow the generator to cool. Use awrench to tighten
the fitting on the end of the generator.
5. The usual storage areas for camping and picnic equipment is the basement, attic, or
garage. To avoid the accumulation of dust, cobwebs, etc., that is common in these storage
areas, place your stove in a plastic bag and seal it with a rubber band.
6. For repair service call 1-800-835-3278 TOLL FREE (outside Kansas) or 316-261-3312
(inside Kansas) for location of your nearest Coleman Service Center. If stove must be
mailed to Service Center, attach your name, address, and a description of problem to stove
and mail to Service Center prepaid. If necessary to write the Service Center or factory, refer
to your stove by specific model number on front of stove.
