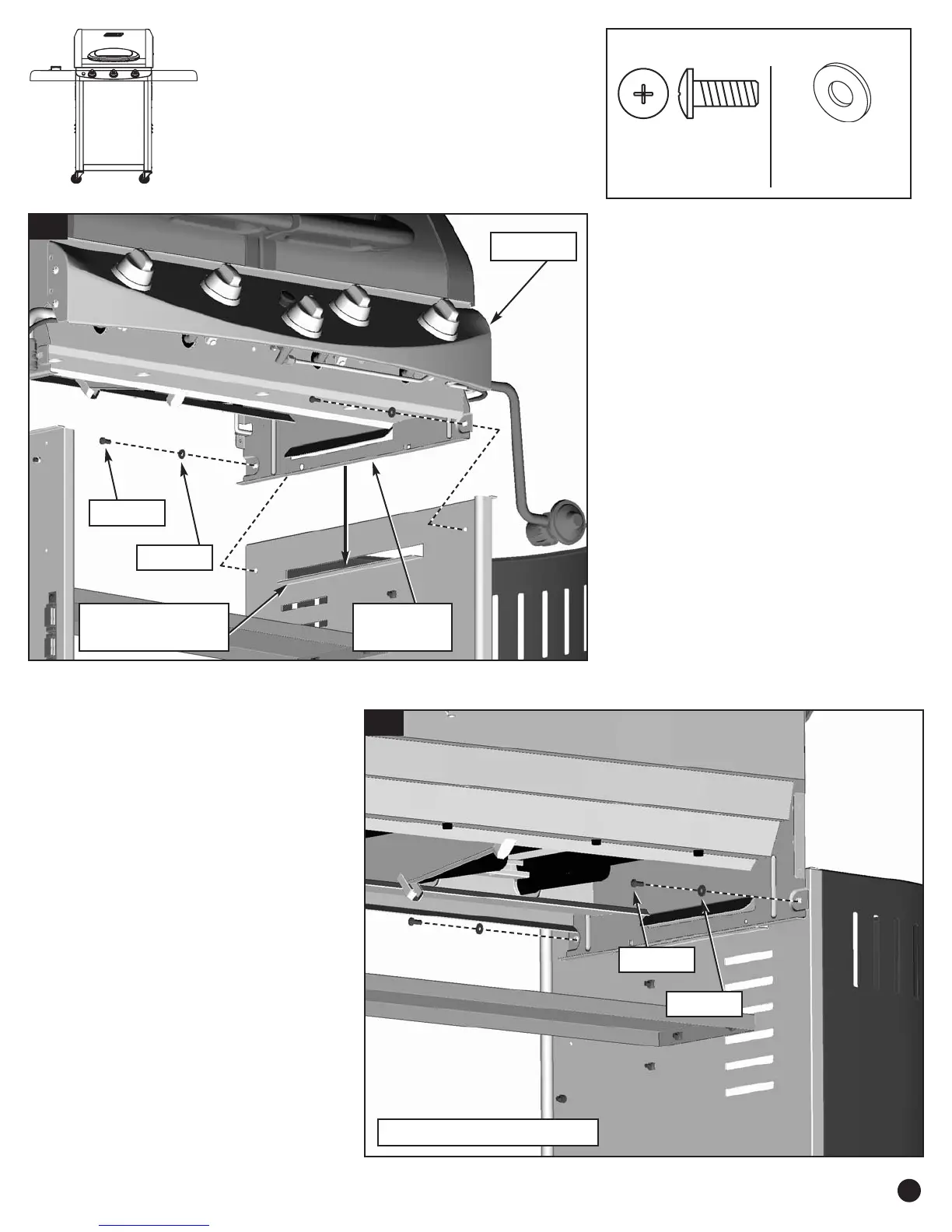

Fasten the Firebox to the
Grill Cart.
NOTE: In Fig. 8-A and 8-B, the
Cart Spacer is not illustrated.
Step
8
13
8-A
Hardware shown actual size
(TN)
M6 x 15mm Screw
(4) Qty.
(DY)
M6 Flat Washer
(4) Qty.
Flange on Right
Side Panel
Flange on
Firebox
Firebox
TN (x2)
DY (x2)
8-B
8-A. Lower the Firebox until it is supported by
the flanges on the Right and Left Side
Panels.
ÖÖ
LOOSELY fasten the Firebox to the
Right Side Panel with two Flat Washers
(DY) and two Screws (TN) as shown in
Fig. 8-A.
ÖÖ
NOTE: You will tighten these screws
LATER (during Step 8-B), after the left
side of the Firebox is attached to the
Grill Cart (this helps with alignment).
8-B. Fasten the left side of the Firebox to the
Grill Cart with two Flat Washers (DY)
and two Screws (TN).
ÖÖ
Tighten all fasteners.
View of Grill from Rear
DY (x2)
TN (x2)
To Next Page
