Coleman 5600 Series User Manual

ÖÖ
NOTE: The Grill Lids must
be opened for Step 11.
ÖÖ
Assemble Left Fryer
Assembly to the Grill.
Step
11
11-A
11-B
11-C

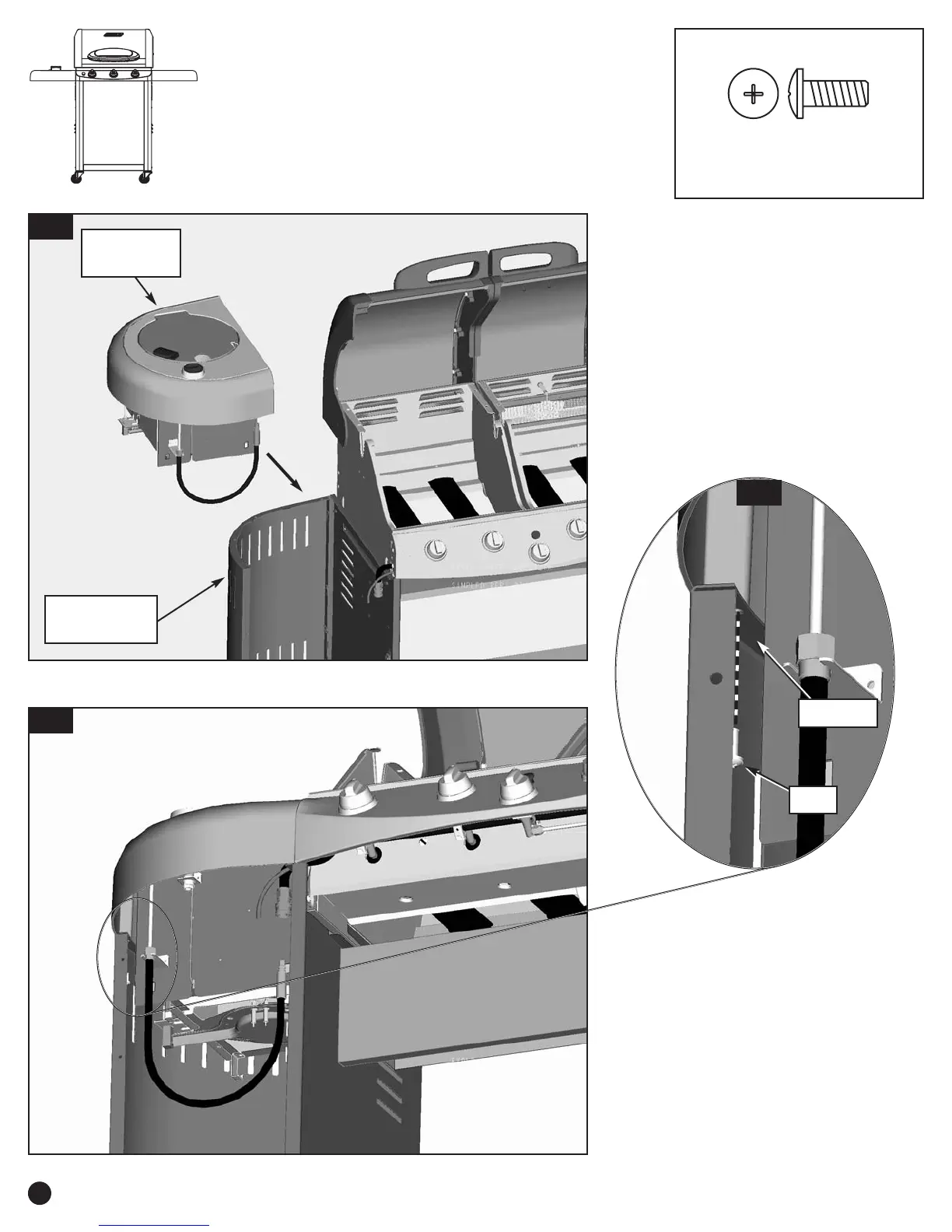

11-A. Raise the Grill Lids.
ÖÖ
Place the Left Fryer Assembly against
the Firebox and on top of the Left Rear
Panel.
Hardware shown actual size
(TN)
M6 x 15mm Screw
(1) Qty.
11-B. Align three studs from Left Fryer
Assembly with slots in flange of the Left
Rear Panel.
ÖÖ
LOOSELY install one Screw (TN)
upward through the Flange of the Left
Rear Panel into the Left Fryer Assembly.
ÖÖ
NOTE: You will tighten this screw
LATER (after Step 12-C), after the left
side of the Firebox is attached to the
Grill Cart (this helps with alignment).
Left Fryer
Assembly
Flange
Left Rear
Panel
TN
16
