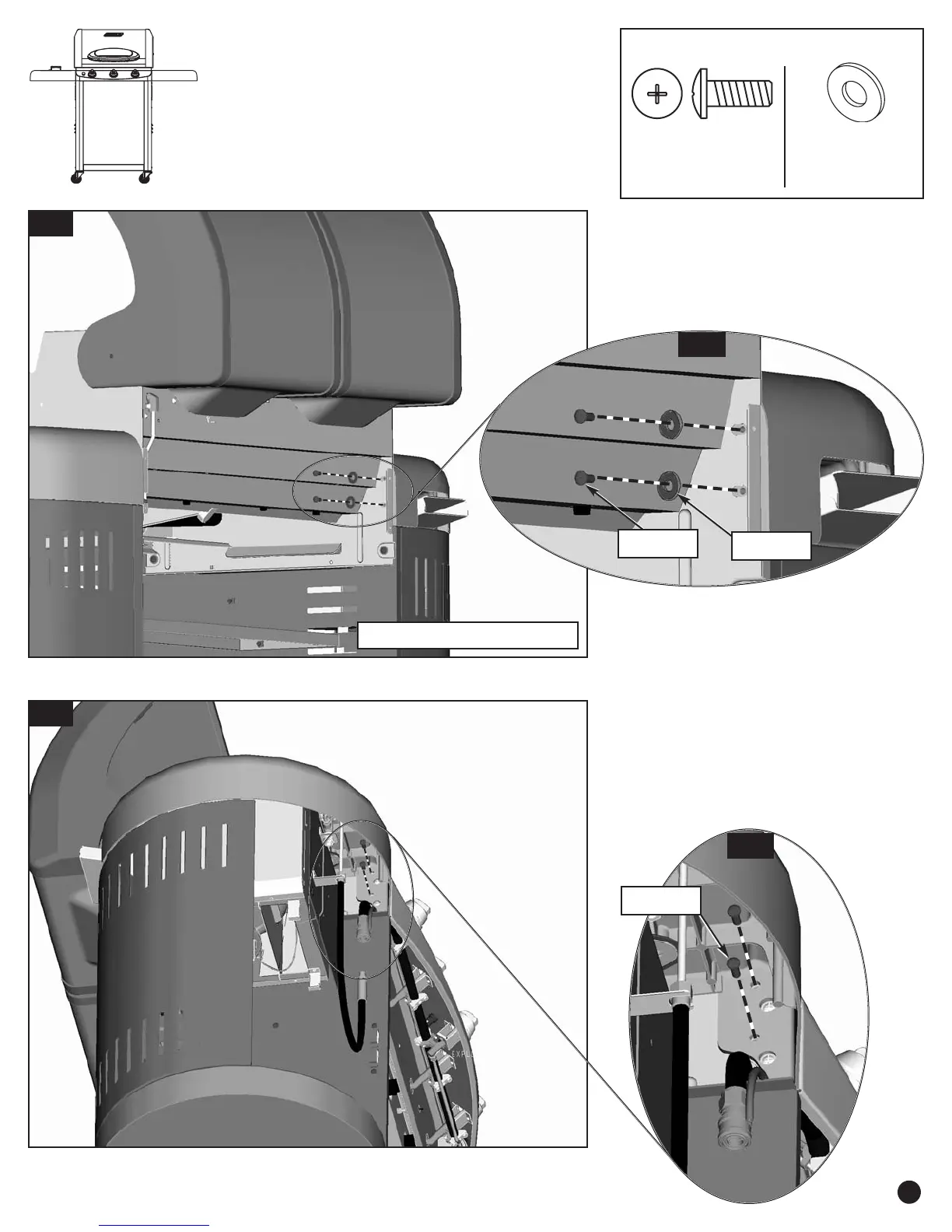

Assemble Left Fryer
Assembly to the Grill
(continued).
Step
12
12-A
12-B
View of Grill from Rear
12-C
12-D
12-A. LOOSELY assemble two additional
Screws (TN) and two Flatwashers (DY)
through the Firebox into the Left Fryer
Assembly at the rear of the grill.
12-C. Assemble two additional Screws (TN)
through the Left Fryer Assembly into the
Firebox at the front of the grill.
ÖÖ
Tighten all fasteners.
TN (x2)
Hardware shown actual size
(TN)
M6 x 15mm Screw
(4) Qty.
(DY)
M6 Flat Washer
(2) Qty.
DY (x2)
TN (x2)
To Next Page
