NOTE: Use a large piece of cardboard or a ground
cloth to protect the painted finish on the grill.
ÖÖ
NOTE: The base pieces are assembled up-side-
down in this step.
Step
1
1-A
Center Base
Right Base
Left Base
(TN)
M6 x 15mm Screw
(8) Qty.
Hardware shown actual size
1-B
1-B. Fasten Casters tight against the Caster Brackets.
Front
TN
Non-
Locking
Casters
Locking
Casters
TN (x8)
Grill Label

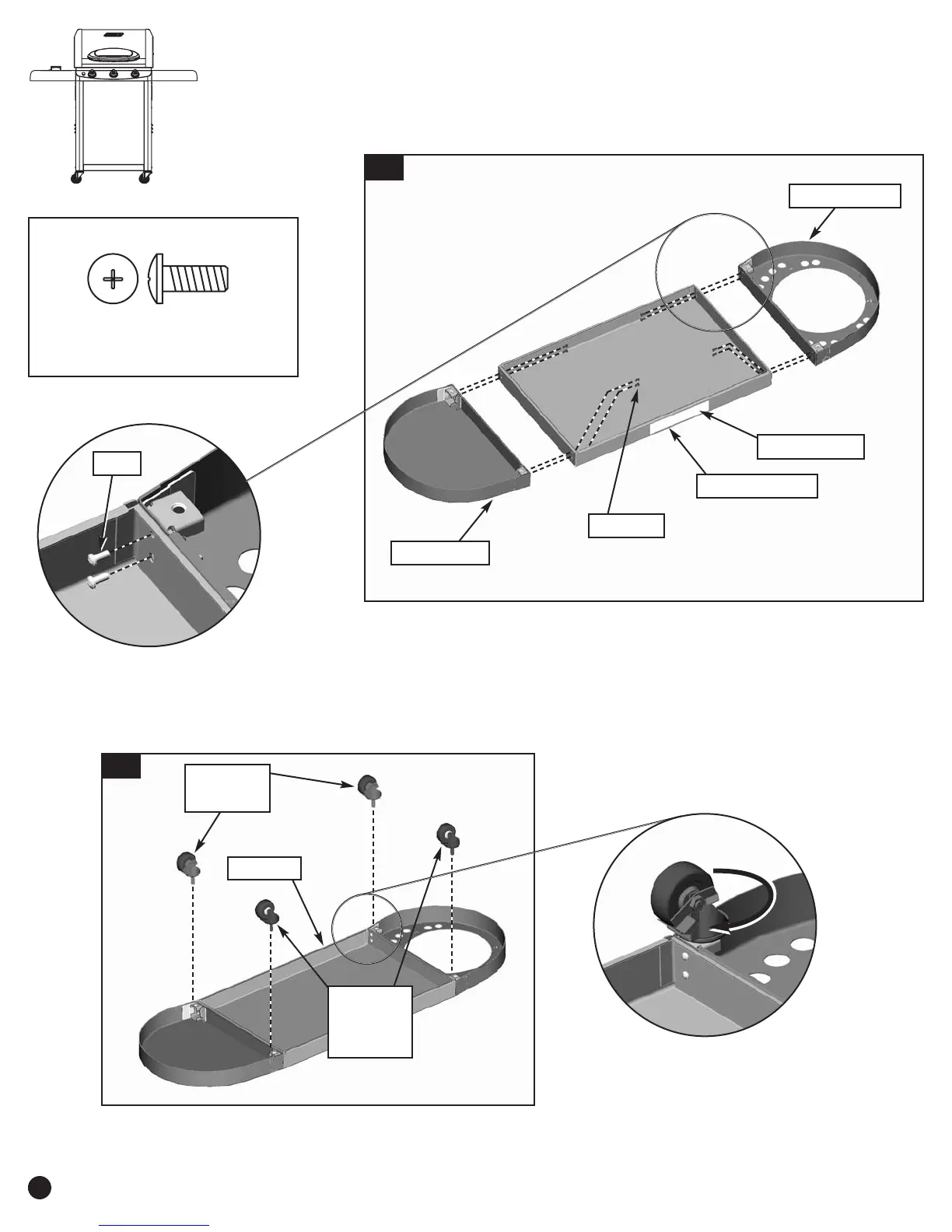

1-A. Arrange the three base pieces on the ground as shown.
ÖÖ
Assemble the Right Base and the Left Base to the Center Base using two
screws (TN) in each corner.
ÖÖ
Note: Arrange the Center Base so the Grill Label is positioned as shown.
Front
8
To Next Page
