Coleman 90474E - Installation and Operation; Pedestal Fixing Guidelines; Pump Operation Steps

P61318ASS16 P6680ASS16
P6916ASS16
A
B
1 2
3 4
A
B
B
P05996
P05997
P05997
P61408ASS16
A
A
B
B
B
A
B
A
B
P6680ASS16
A
B
B
B
A
B
B
P6124ASS16

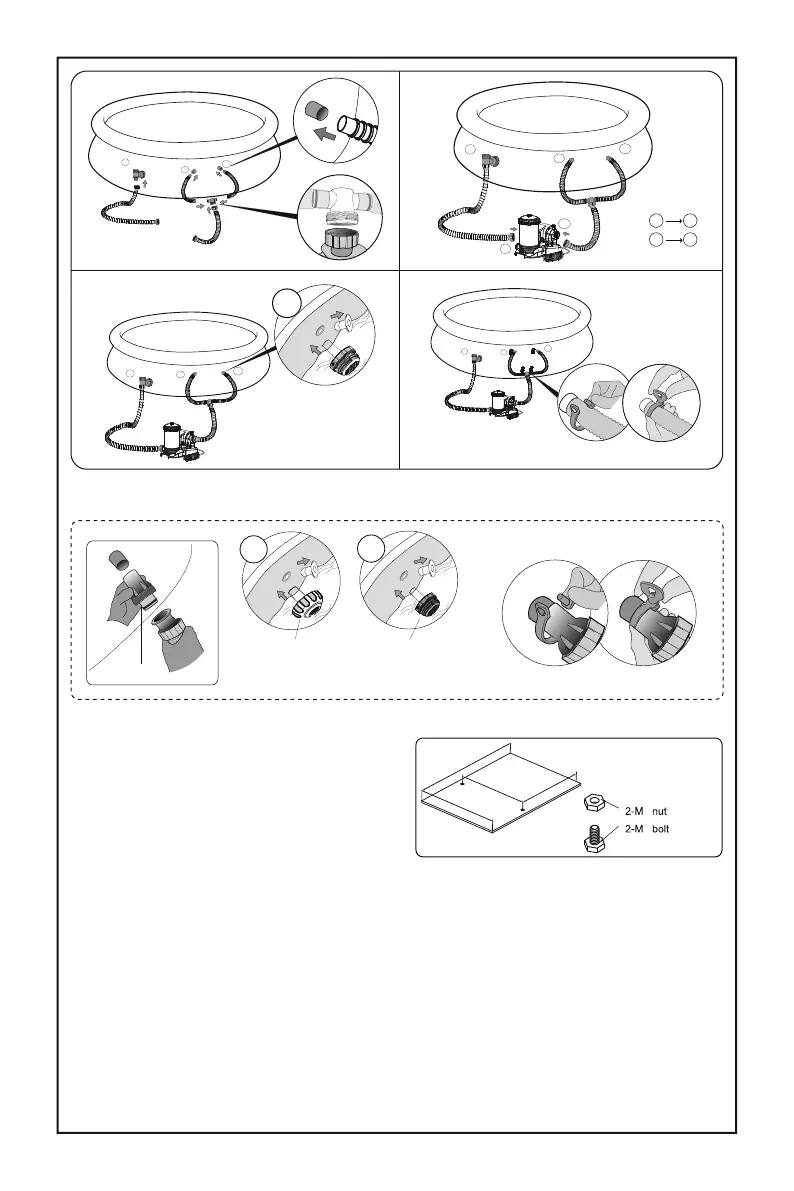

PEDESTAL FIXING Fig.1
The filter pump must be vertically fixed on ground or a certain
pedestal made of wood or concrete before use. There should
be two holes 7mm in diameter on the pedestal, the space
between which should be 256mm. Put filter pump on the
pedestal and fix them together by fasten the bolts and nuts. All
the pedestal parts should weigh over 18kgs at least to prevent
the pump from accidental falling.
1) Open/unscrew the Air Purge Valves on the Filter Pump; air is released as water fills the Filter Pump.
2) When water comes out of the Air Purge Valves, close both the Air Purge Valves and wipe away any water.
3) Test the GFCI plug.
4) Start the Filter Pump by turning on the switch to the "I" position.
Operation
6
6
Fig.1
256
270
300
450
6
