5) Attaching the Diagonal and Eyepiece
A. Loosen the thumbscrew on the end of the focus tube.
B. Insert the diagonal into the focus tube and re-tighten the thumbscrew to hold the
diagonal in place.
C. Loosen the thumbscrews on the diagonal.
D. Insert the desired eyepiece into the diagonal and secure by re-tightening the

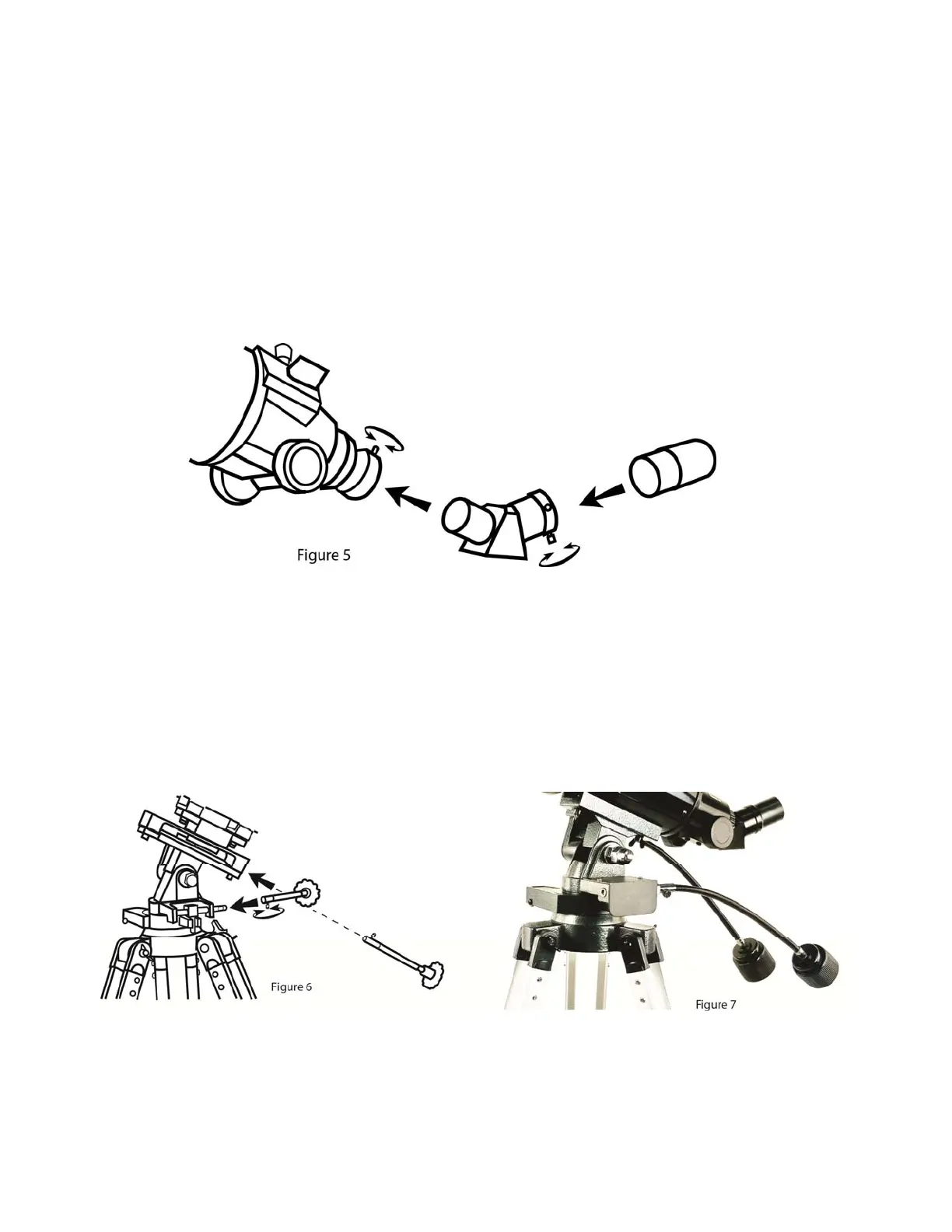

thumbscrews (see Figure 5).
6) Installing the Control Cables
Install cables for fine adjustments of Altitude and
Azimuth as shown in Figures 6 and 7).
