5

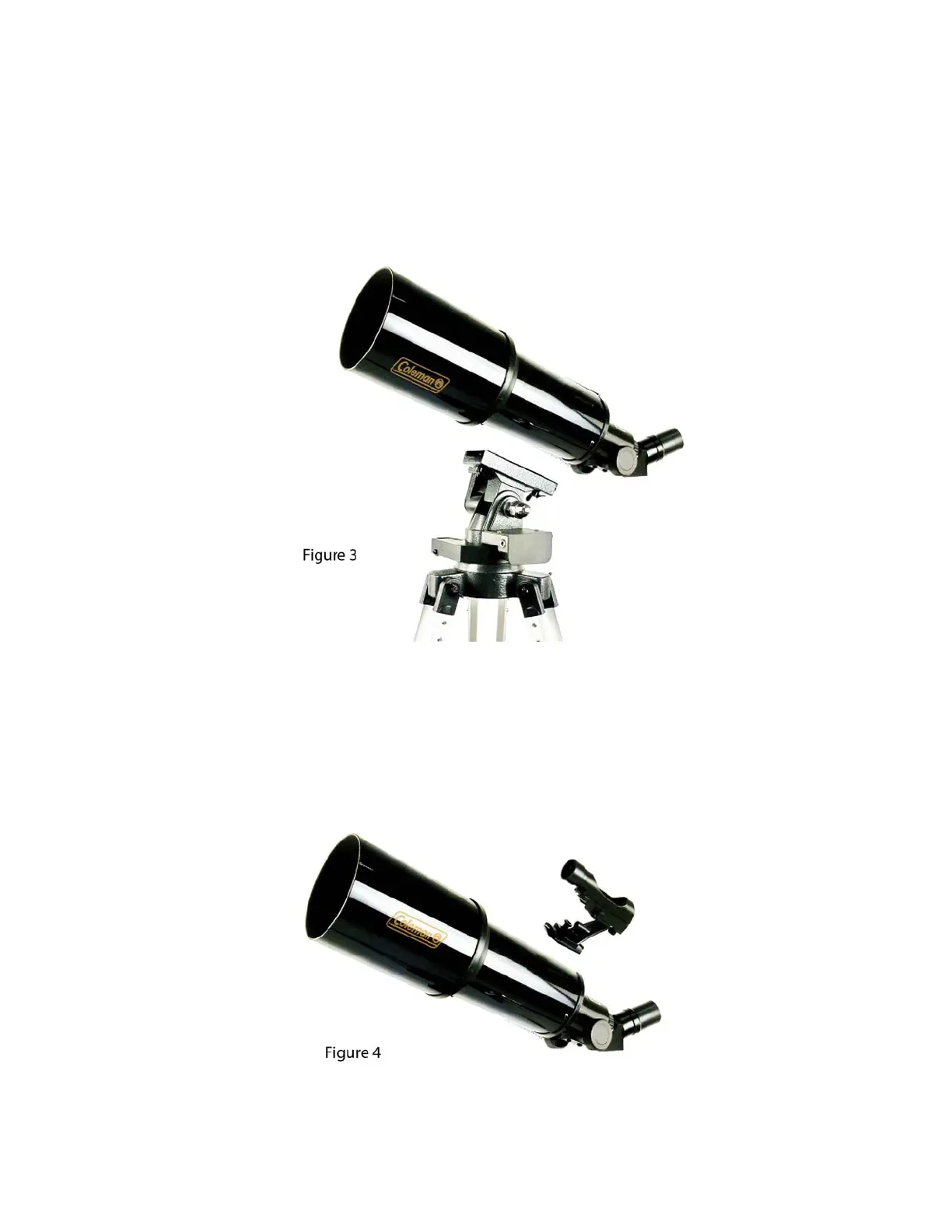

3) Attaching the Telescope Main Body to the Tripod
Position the telescope main body (E) on top of the tripod head, aligning it to the fixing
screws. Connect the telescope optical tube to the tripod head and secure it in place by
tightening the fixing screws (see Figure 3). DO NOT OVERTIGHTEN.
4) Attaching the Red Dot Finder
Slide finderscope assembly/ red dot finder into the rectangular slot and
tighten the thumbscrew to hold the bracket in place (see Figure 4).
