ADJUSTMENTS
AND
TESTING
SIMPLA 50B-BT
SIMPLA 55BT
SIMPLA 65BT
SIMPLA 50BST
Doc. 10021896
Issued 09/2010
Ver. AB
Page 12 of 16

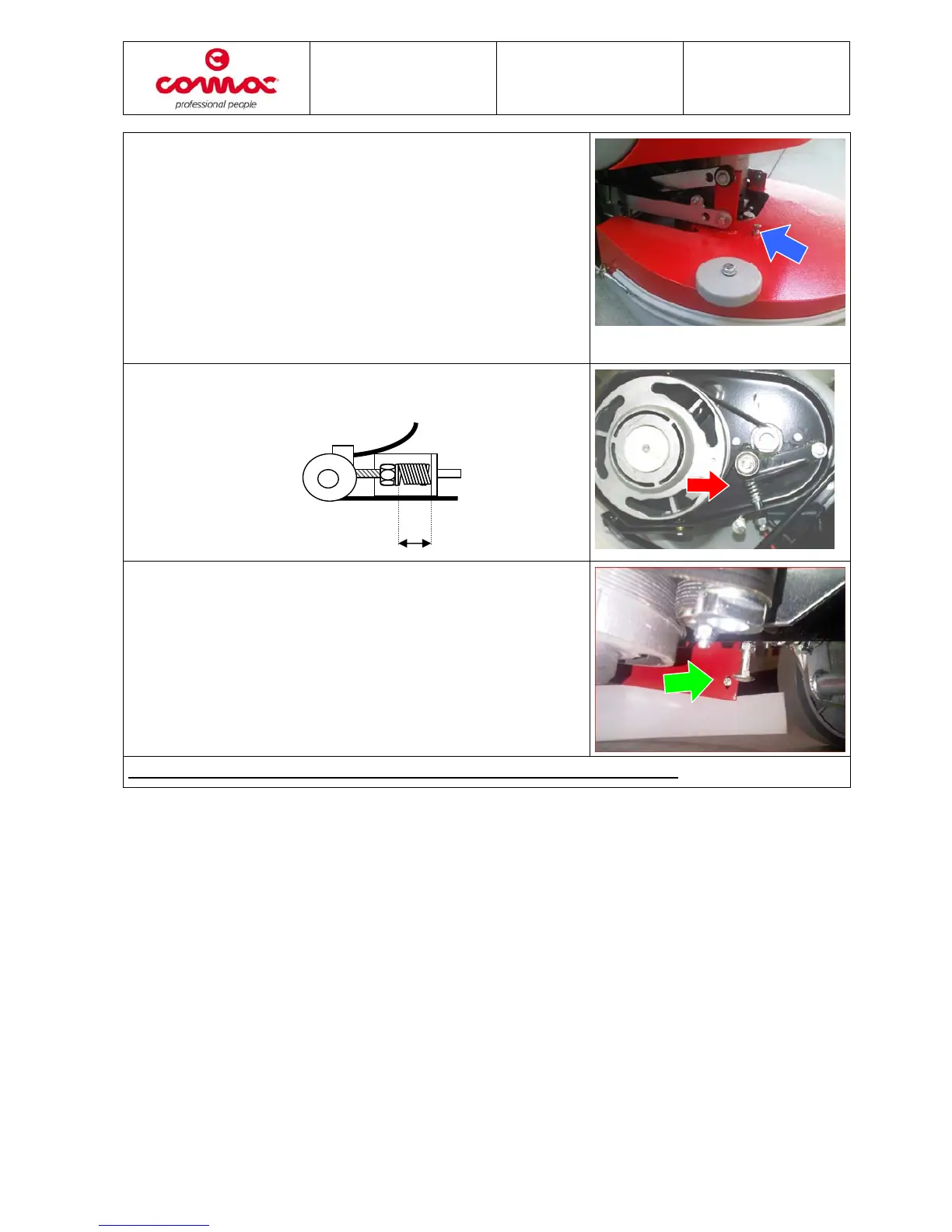

7. Traction adjustment: adjust the M8 screw so as to
distribute the weight of the motor to the rear of the base.
The adjustment of the screw effects the traction of the
machine.
Act on the screw shown in the figure:
• Unscrew to increase the traction effect;
• Screw to decrease the traction effect.
ATTENTION: increasing the traction of the machine diminishes
the width of the floor cleaned.
8. Check, and if necessary, adjust the tightening spring to a
compression length of 27 mm.
9. Check that the round headed screw of the brush
support touches the flat section of the brush on which it
lies. The play between the head and brush must be a
maximum of 1-2 mm with the brush hooked and lowered.
Refer to the WASHING version for the adjust of the automatic version.
