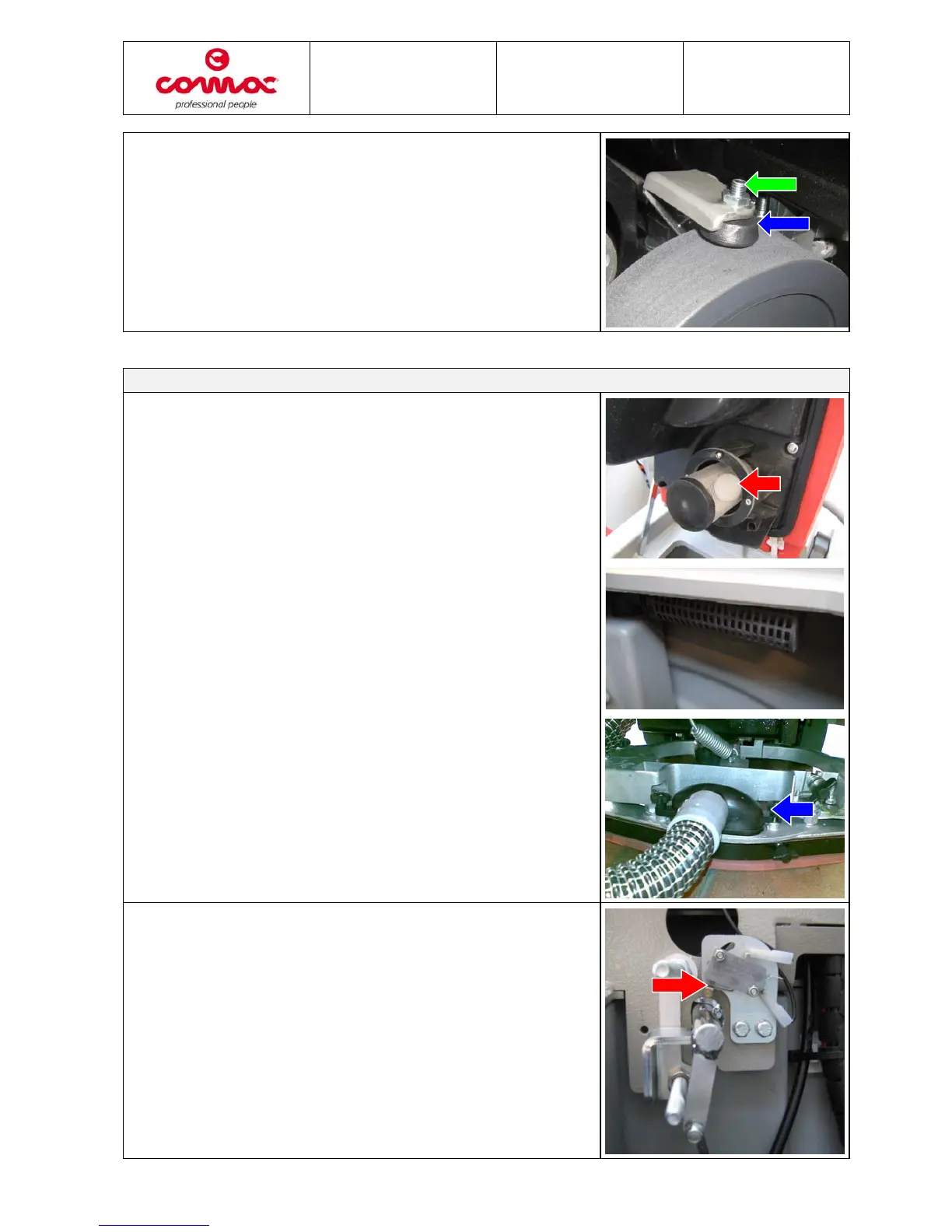

2. Adjust the pads on the wheels, so that when the pin is
inserted on the handbrake lever, the machine is blocked.
3. To adjust the pads, proceed as follows:
• loosen the M8 locknut
• Loosen or tighten the pad so that it is correctly adjusted
(make sure that with the machine working, batteries
installed, the pad does not touch the wheel).
• tighten the M8 locknut
Suction Testing
1. Check the filter – float is clean and functioning.
2. Check the air seal of the cap on the recovery tank.
3. Check the connections and seal of the suction tubes and the
squeegee tube.
4. Check the seal of the squeegee nozzle.
5. Check the seal of the drainage tube and cap.
6. Adjusting the suction microswitch (MANUAL MACHINE
VERSION):
• adjust the microswitch so that when the lever is turned, the
switch closes (thereby activating the suction), leaving a gap
of about 0.5mm between the roller and the main body
• after adjusting, check the microswitch is functioning
correctly
