Heating module Thermostat
Gateway
Electric radiator
Electric radiator
Electric radiator
Electric panel
Phase (L)
Neutral (N)
Control wire (P)
30 m
max.
Note: The current circuit of the potential-free contact
must be adjusted to the capacity of the radiators being
controlled. The required current for the control circuit
must be less than 3A.
Attach the heating module holder
2
INSTALLATION OF THE CONTROL WIRE

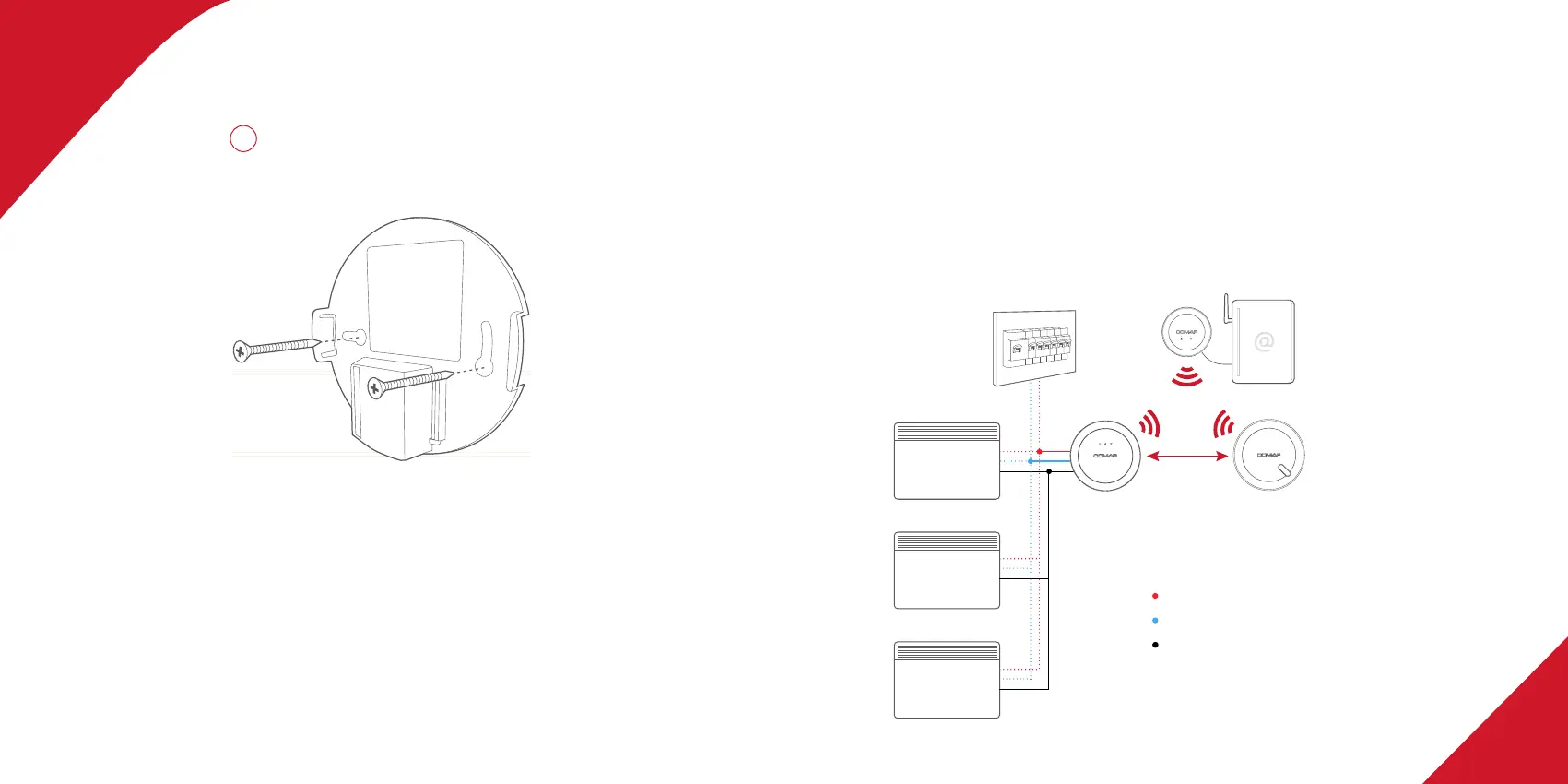

Installation on electric heating with centralised control wires
- Single zone -
ELECTRIC VERSION
