Bottom Connections

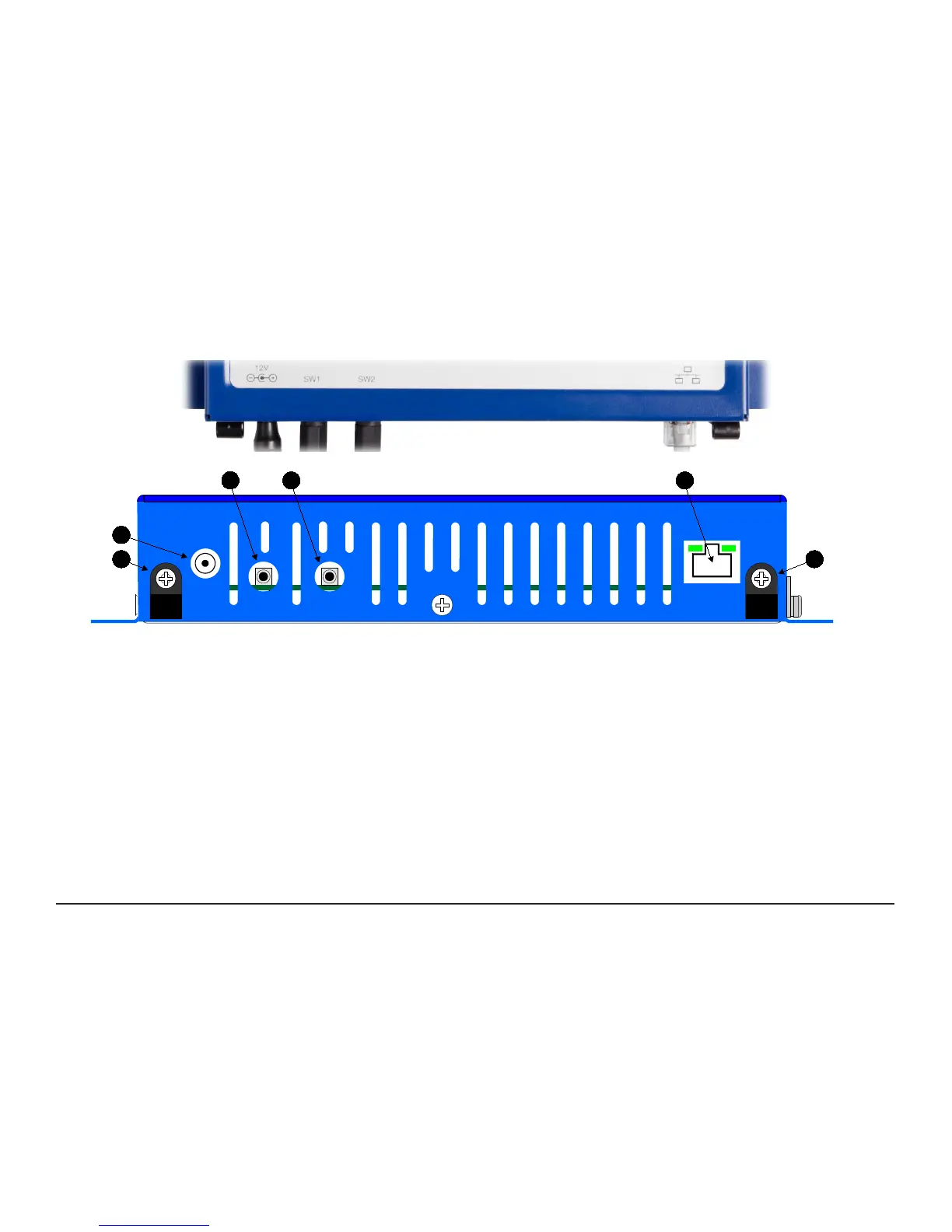

Figure 7 - Bottom View of RF500A Gateway

A. Cable clamps

B. 12 VDC input

C. SW1 – Jack Socket for Relay Output 1

D. SW2 – Jack Socket for Relay Output 2

E. RJ45 Ethernet LAN Socket
