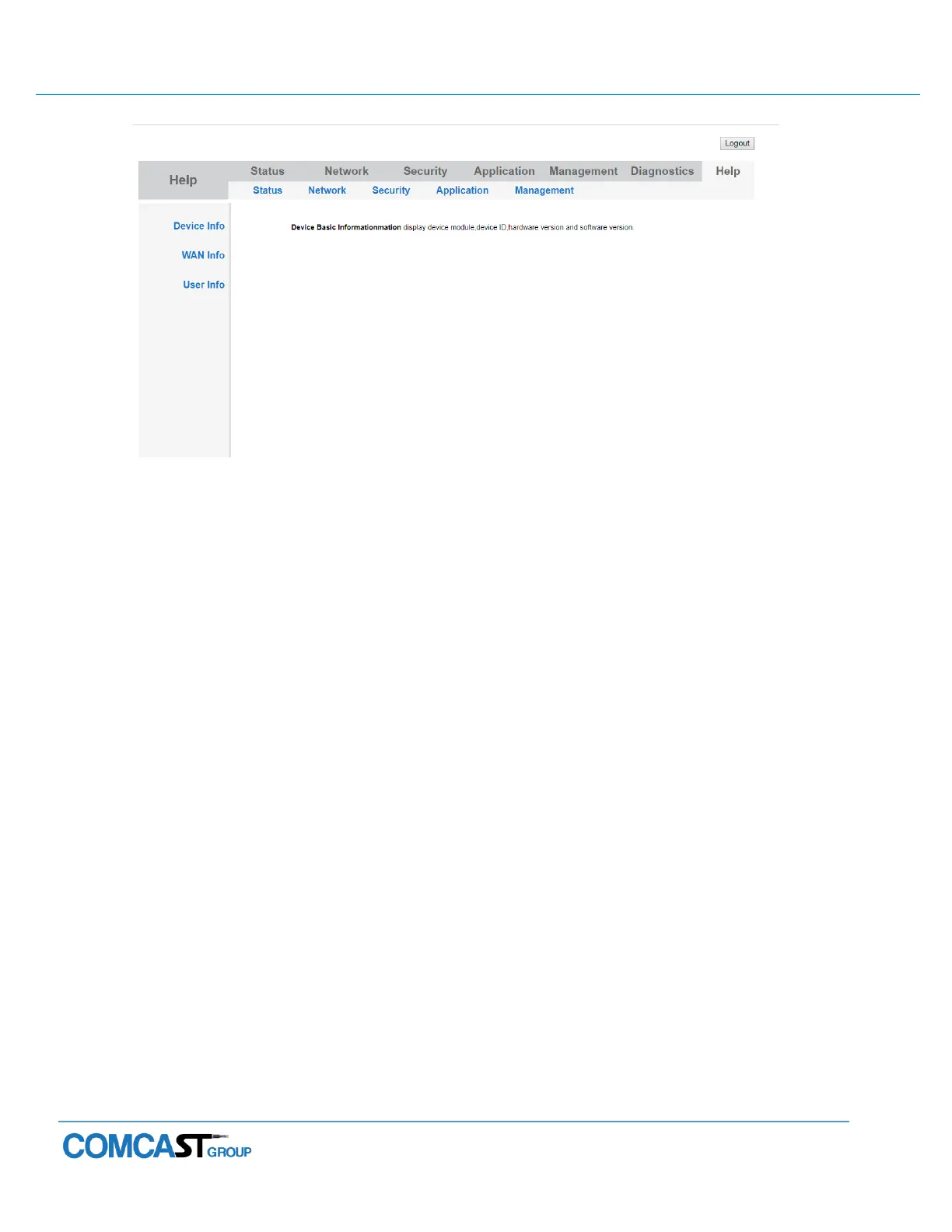

Figure 3-57: Help information
Chapter 4 Examples
4.1 Internet service
There are two configuration methods for Internet service. One works on bridge mode and
another works on route mode.
4.1.1 Requirement
Scenario 1:
ONU works on bridge mode, service VLAN is 10. User gets IP address via DHCP.
Scenario 2:
ONU works on route mode, service VLAN is 10. ONU gets IP address via PPPoE.
4.1.2 Steps
For scenario 1, it doesn’t need to configure anything in ONU side but need to configure VLAN in
OLT side.
For scenario 2, except configuring VLAN in OLT side, it also needs to configure WAN connection
in ONU web.
4.1.2.1 Bridge mode for Internet service
In this example, we take V1600D and Huawei MA5680T for example, to introduce how to
configure Internet service.
