V1600D Configurations
(1) Create VLAN
epon-olt (config)# vlan 10
epon-olt (config-vlan-10)# exit
(2) Configure uplink port
epon-olt (config)# inter g 0/3
epon-olt (config-if-ge0/3)#switchport hybrid vlan 10 untagged
epon-olt (config-if-ge0/3)#switchport hybrid pvid vlan 10
(3) Configure PON port
epon-olt (config)# inter epon 0/2
epon-olt (config-pon-0/2)# switchport hybrid vlan 10 tagged

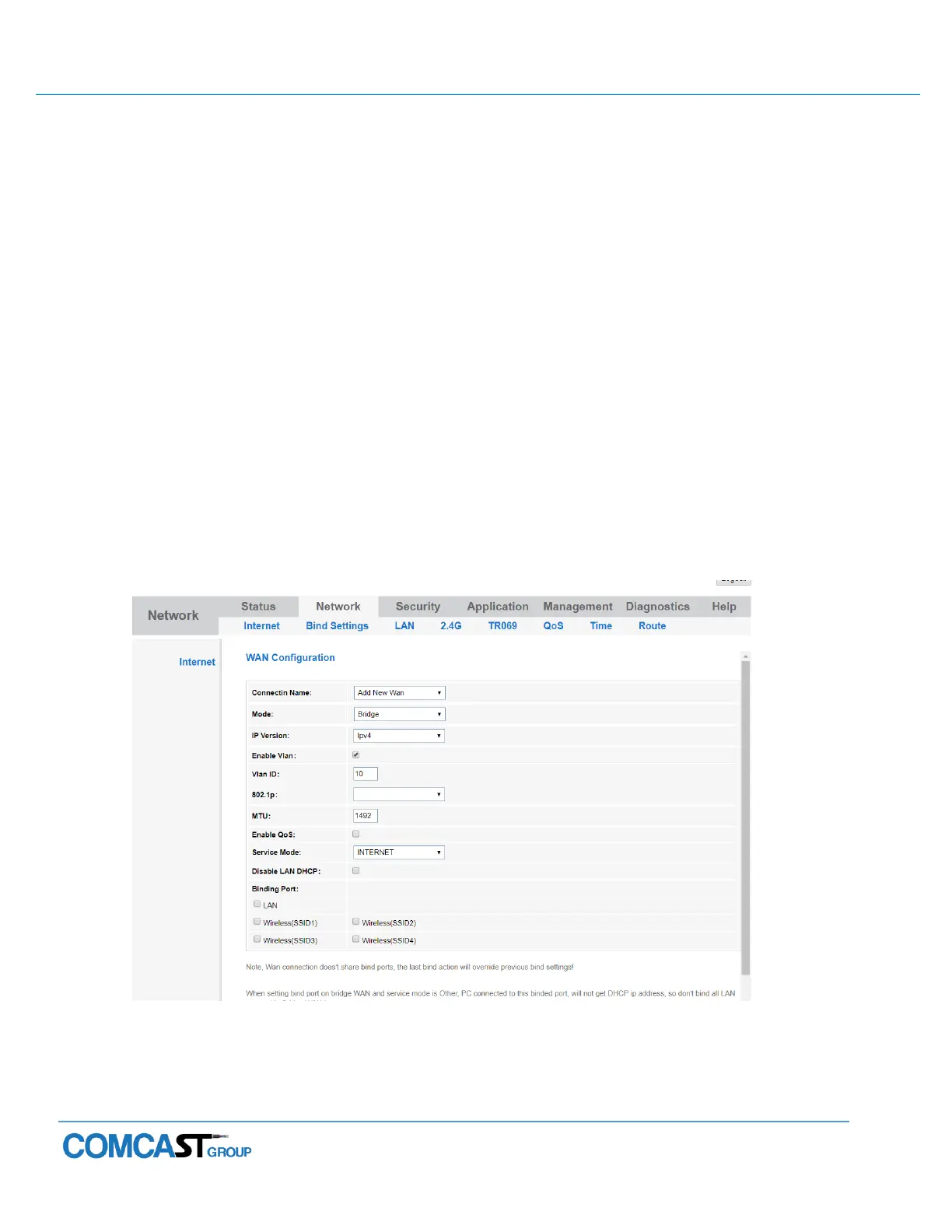

(4) Configure ONU bridge mode by ONU web
Figure 4-1: Bridge Mode
