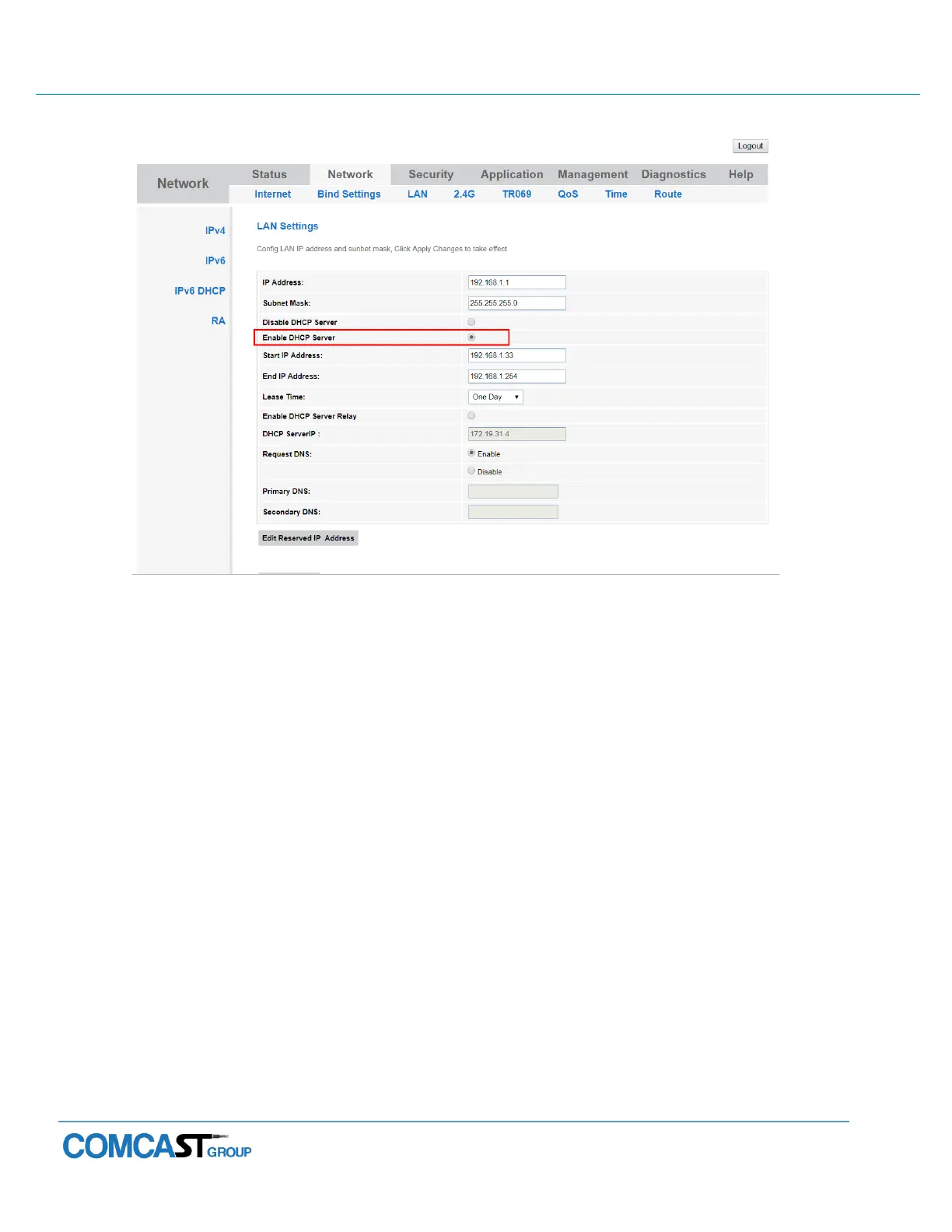

Figure 4-3: Enable LAN DHCP server
3) OLT Configurations
V1600D configurations:
(1) Create VLAN
epon-olt (config)# vlan 10
epon-olt (config-vlan-10)# exit
(2) Configure uplink port
epon-olt (config)# inter g 0/3
epon-olt (config-if-ge0/3)#switchport hybrid vlan 10 untagged
epon-olt (config-if-ge0/3)#switchport hybrid pvid vlan 10
(3) Configure PON port
epon-olt (config)# inter epon 0/2
epon-olt (config-pon-0/2)# switchport hybrid vlan 10 tagged
(4) Configure ONU WAN by ONU web
