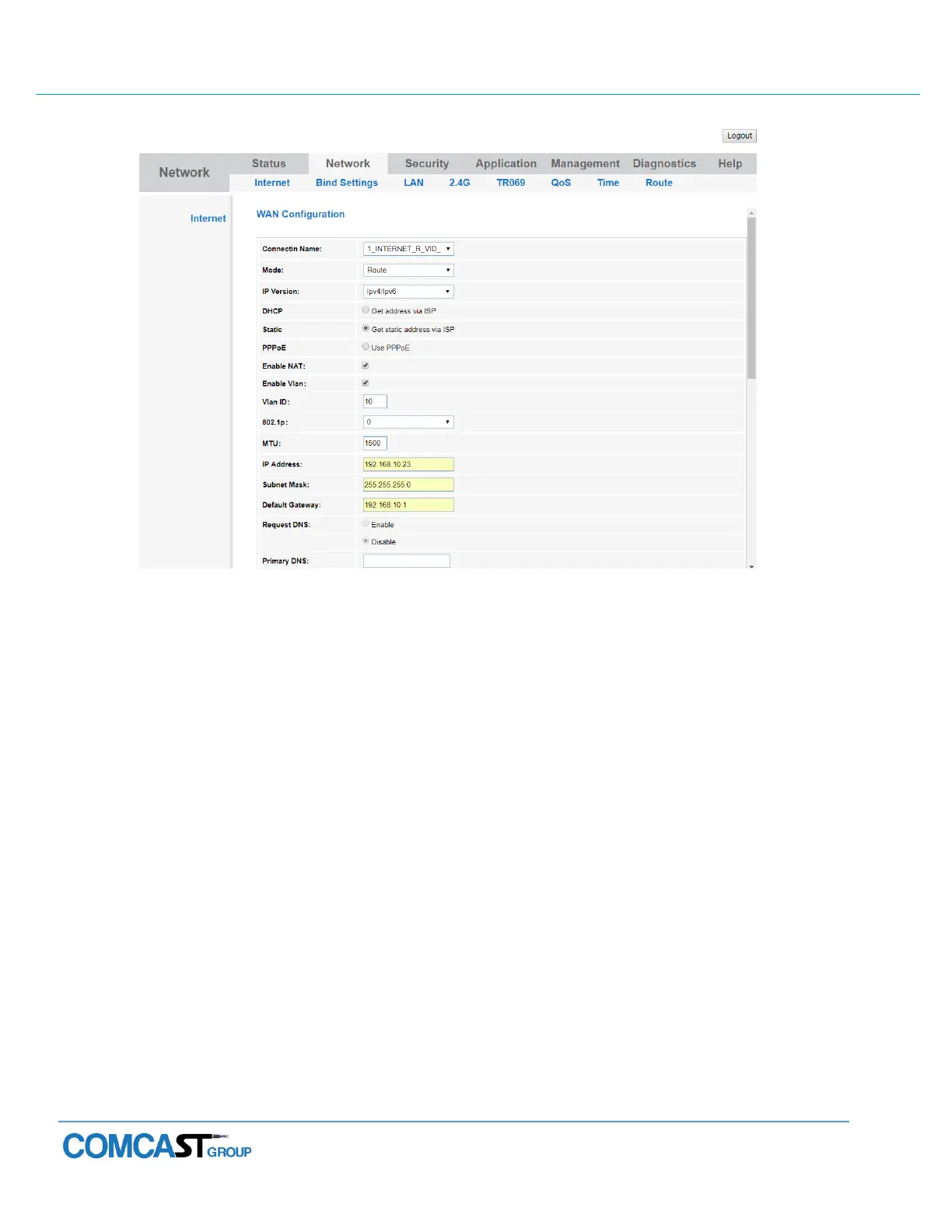

Figure 4-4: Route Mode Static IP
Huawei MA5680T Configurations:
(1) Create VLAN
MA5680T(config)#vlan 10 smart
(2) Configure uplink port VLAN
MA5680T(config)#port vlan 10 0/19 1
MA5680T(config)#interface giu 0/19
MA5680T(config-if-giu-0/19)#native-vlan 1 vlan 10
(3) Configure DBA profile
MA5680T(config)#dba-profile add profile-id 12 profile-name 1GE type3 assure 102400 max 899968
(4) Configure line profile
MA5680T(config)#ont-lineprofile epon profile-id 11 profile-name 1GE
MA5680T(config-epon-lineprofile-11)#llid dba-profile-id 12
MA5680T(config-epon-lineprofile-11)#commit
(5) Configure service profile
