4
Mini series hands-free door-entry phone with full-duplex audio. Allows speaker volume adjustment and call volume adjustment,
with ringtones which can be customised by choosing one of several different melodies. Equipped with 5 sensitive touch
buttons for audio control, lock-release, actuator, switchboard call and privacy function, as well as door status indicator LEDs.
Manages floor door calls as standard. Complete with 2 x 8-position dip-switches for programming the user code and button
programming. Surface-mounted installation. The door-entry phone can be used in Simplebus2 audio systems with power
supply unit art. 1210/1210A. Dimensions 105x105x20 mm.

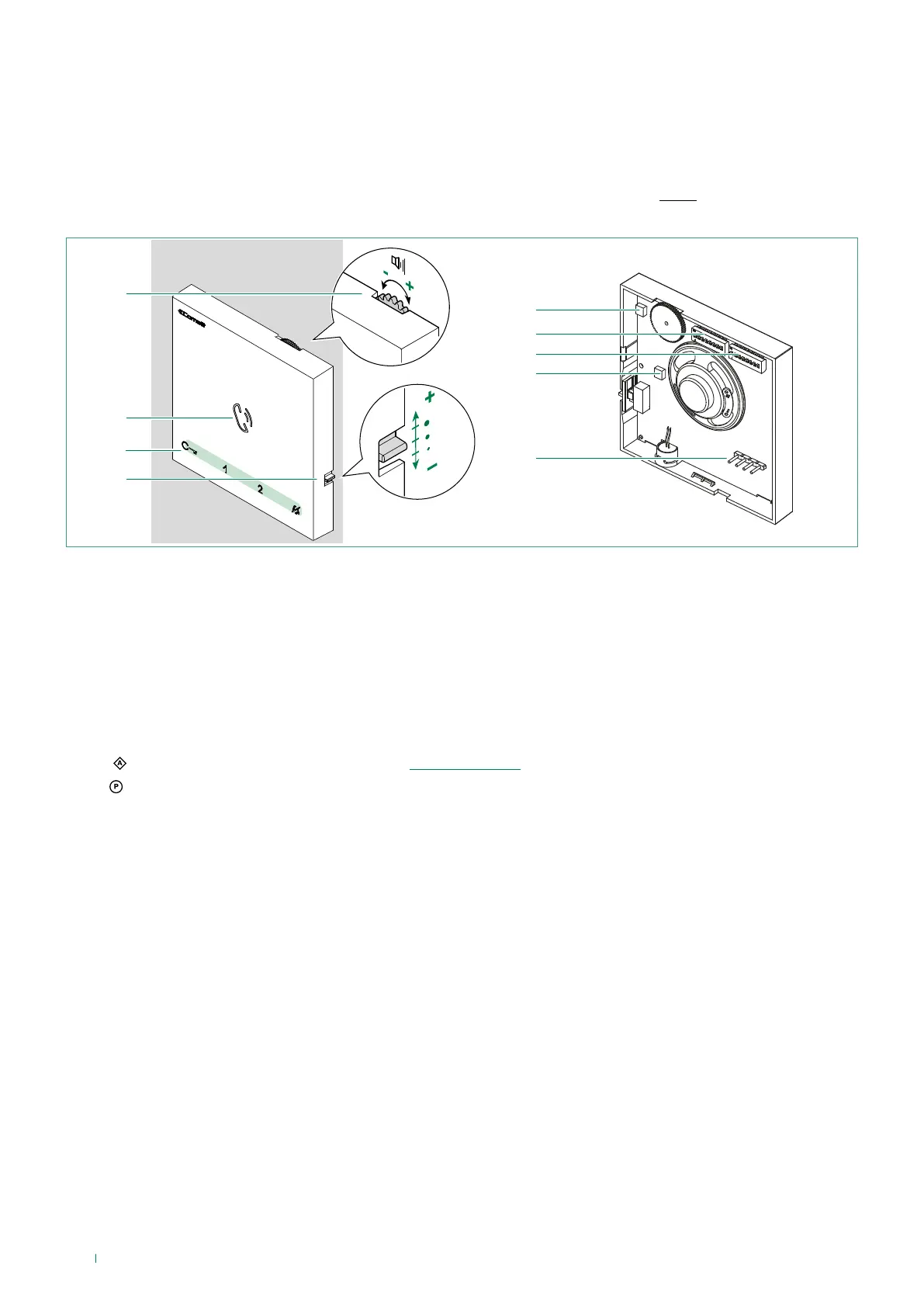

Art. 6751W
1. Loudspeaker volume control
f turn clockwise to increase the value
2. Speaker and audio activation button
3. Touch-sensitive buttons
4. Call volume adjustment (high - medium - low)
5. Trimmer - Factory setting DO NOT CHANGE!
6. S1
Microswitches for setting the user code (see addressing table)
7. S2
Microswitches for programming keys and functions
DIP 1-2-3-4 for programming button functions
DIP 5-6 for programming access
DIP 7-8 not used
8. Trimmer - Factory setting DO NOT CHANGE!
9. Pin for securing terminal block
Terminal block for system connection
LL Bus line connection terminals
CFP1 CFP2 Floor door call input
1.
4.
2.
3.
5.
6.
9.
7.
8.
