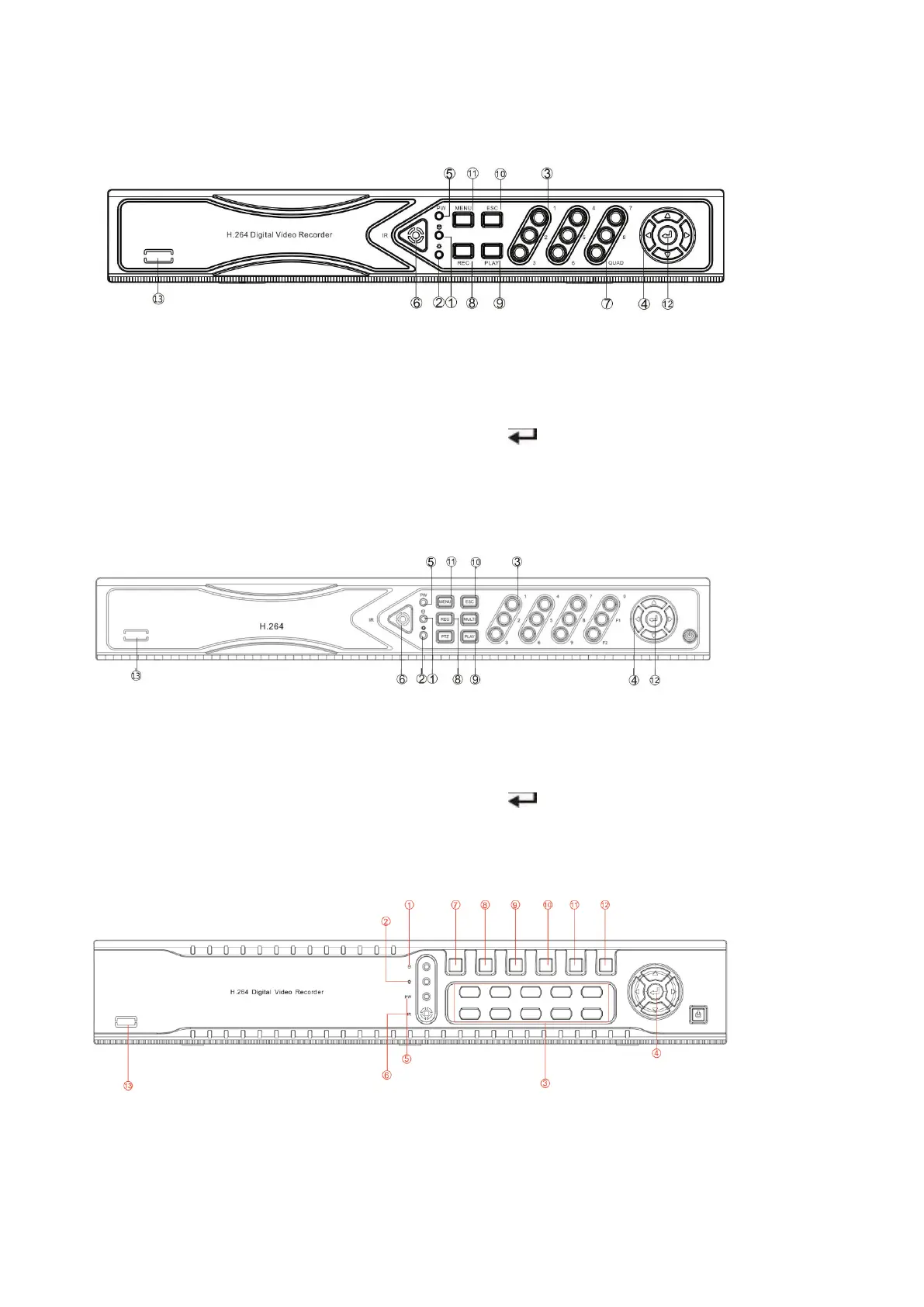

Comelit AHDVR040B - Front Panel Overview (Models AHDVR080 B-AHDVR0320 A)

20
1. HDD led 8. REC: Manual recording key
2. State led, reserved 9. PLAY: Playback key
3. 1 ~ 8: CH1 ~ CH8 Single-Screen key 10. ESC: Exit key
4. ▲▼◄►: Direction key 11. MENU: Menu key
5. POWER led 12. : Confirm key
6. IR receiver 13. N.C.
7. QUAD key
Art. AHDVR160B, AHDVR162B, AHDVR163A, AHDVR165A front panel description
1. HDD led 8. REC: Manual recording key
2. State led, reserved 9. PLAY: Playback key
3. Single-Screen key 10. ESC: Exit key
4. ▲▼◄►: Direction key 11. MENU: Menu key
5. POWER led 12. : Confirm key
6. IR receiver 13. N.C.
Art. AHDVR0320A front panel description
1. HDD led 8. PLAY: Playback key
2. State led, reserved 9. PTZ: PTZ key
3. Single-Screen key 10. MULTI: multi-screen key
Art. AHDVR080B, AHDVR082B, AHDVR083A, AHDVR085A front panel description
