Description
7
4
3
8
1 2
56 9 10

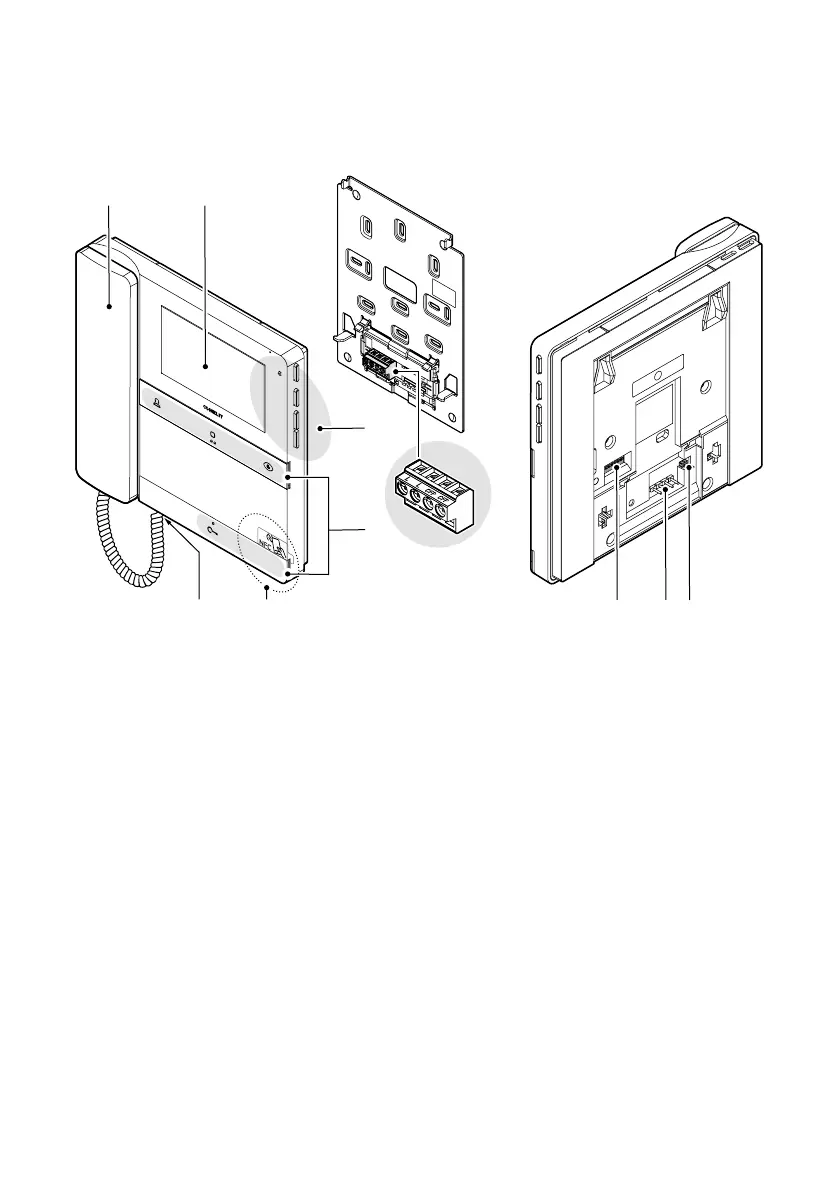

1. Handset.
2. 4.3’’ / 16:9 LCD screen.
3. Mechanical side buttons.
4. Mechanical front buttons, with touch guides for sight impaired users on the middle buttons of each row.
5. NFC detection area.
6. Handset connector.
7. Connection terminal block:
L L Terminals for bus line connection.
CFP CFP Terminals for floor door call connection.
8. Dip-switch for programming the user code.
9. Pin for securing the terminal block.
10. CV5 Jumper for video closure.
