4.
7.
3

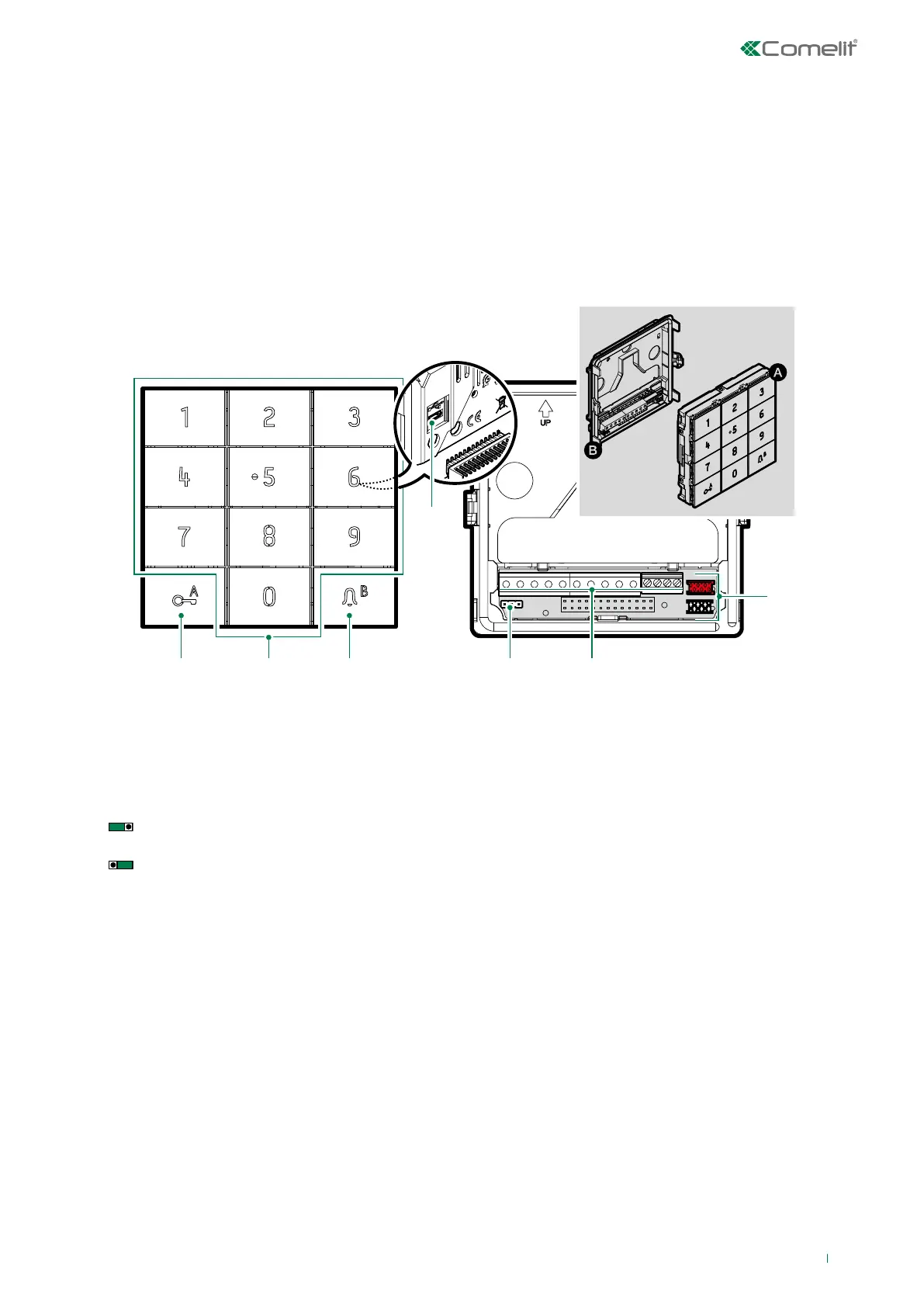

Description
1. Key button
2. Number keypad
3. Bell key / status LED
4. Micro USB for connection to the computer
5. JP1 jumper for programming access
JP1
normal operation
JP1
programming mode active
6. Terminal block for connection:
RK local lock-release input
CK trade function input for key button enabling
GND negative for CK and RK
NO1 NC1 COM1
relay 1 contacts
NO2 COM2 relay 2 contacts
V- V+ 12-33 VDC or 12-24 VAC power supply input, for use in stand-alone mode (without Ultra audio or
audio/video module)
D1 D0 GND Wiegand output connection
IN Wiegand output command successful feedback
7. Connector for connecting previous/next modules
Module with number keypad for Ultra entrance panel, compatible with all systems. It can be used as a module for calling the
user directly when the code is known and for access control with the activation of built-in relays and audio or audio/video
module outputs, and system actuators. The access codes may be permanent (always valid), metered (valid for a certain number
of uses) or associated with a validity date. In the latter case, each code can be assigned a validity start/end date, dual daily
time band and validity days. Each access code can be assigned up to 4 different actions. The playback function for playing the
relevant audio message when each button is pressed can be enabled. There is also an event log, complete with all information
(activated codes, user that used them, users called, etc.), which can store up to 1275 events. It has a Wiegand output for
interfacing with access control systems. Automatic button backlight deactivation during daylight hours using the twilight sensor
for the paired audio or audio/video module. Anodised aluminium alloy coating. Dimensions: 100x90x35 mm (1 Ultra module).
